Before

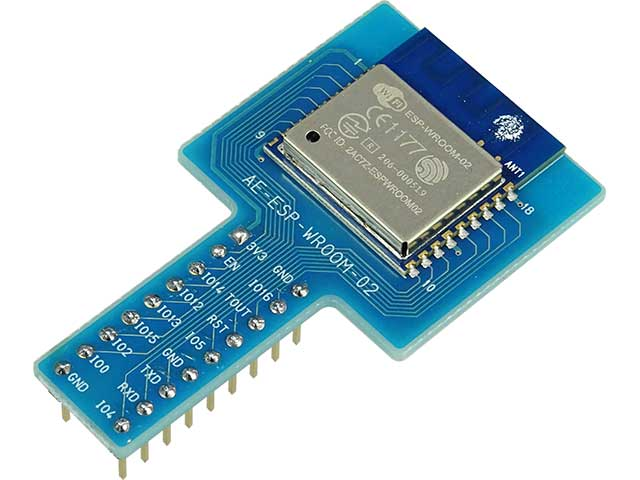

I bought the ESP-WROOM-02 Wifi Module before and just put it into my toolbox for more than half a year..and like to use this post to memo some steps while startup.
Wiring
The TX0 and RX0 ESP-WROOM-02 pins are used to communicate between these modules and Arduino, but you can arrange the pins that you like.
Photos

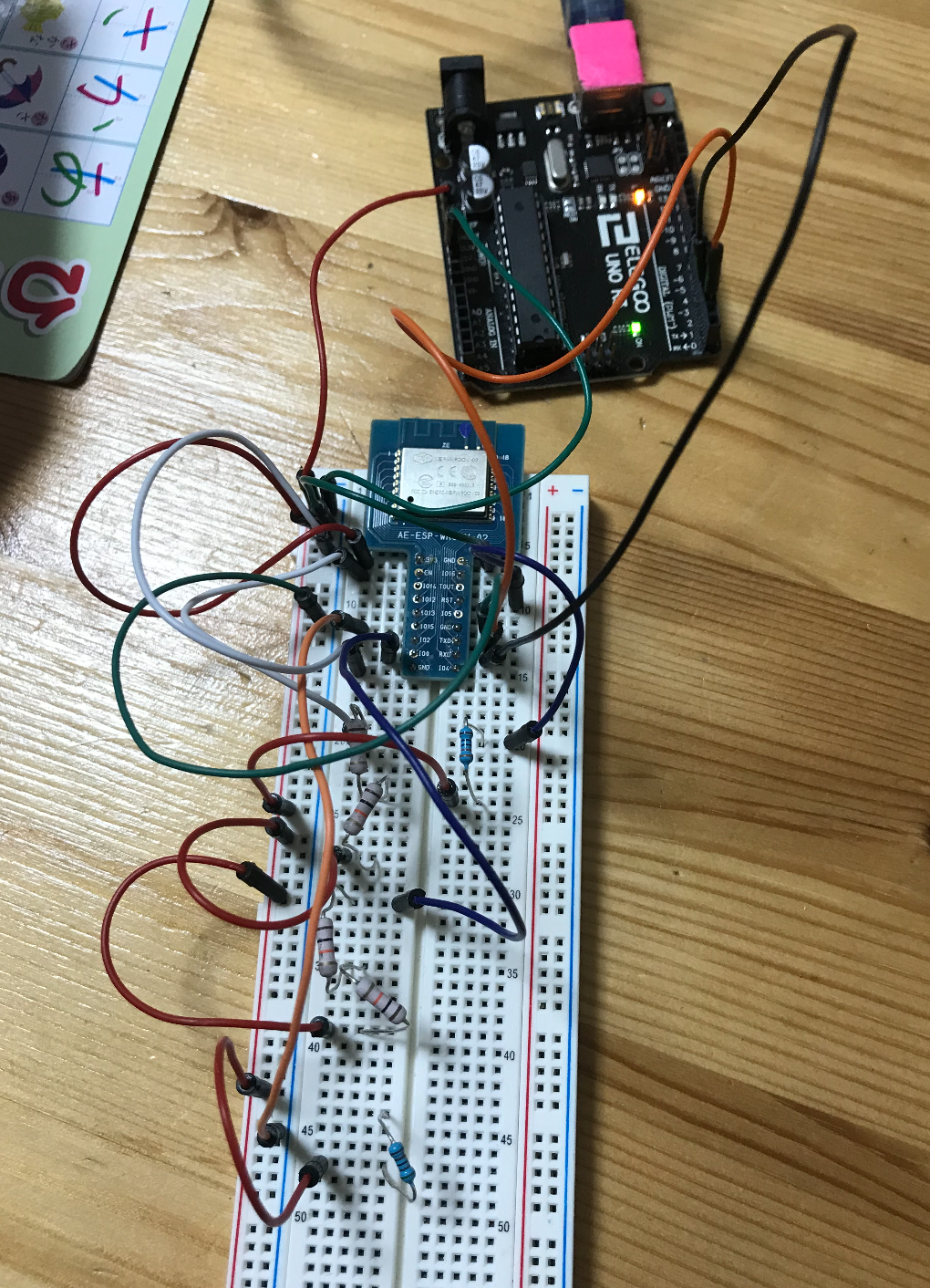

Sorry that I am using Bread-board to build this small circuit.
Code
#include <SoftwareSerial.h>
SoftwareSerial mySerial(2,3); // RX, TX
void setup()
{
Serial.begin(115200);
while (!Serial) {
; // wait for serial port to connect. Needed for Leonardo only
}
mySerial.begin(115200);
}
void loop()
{
if(mySerial.available())
Serial.write(mySerial.read());
if (Serial.available())
mySerial.write(Serial.read());
}
AT Command
This module can use AT Command to configure it and it is not different.
Open your Serial Monitor in Arduino IDE, Choose Both NL&CR and set the communicate speed as 115200.
AT Command Link:
http://nonnoise.github.io/ESP-WROOM-02/ATcommand.html
Check the communication status.
Good, OK is back.
よし、OKが戻ってきた。
00:21:42.630 -> AT
00:21:42.630 ->
00:21:42.630 -> OK
Check the current Status.
..What is 5?
00:22:39.454 -> AT+CIPSTATUS
00:22:39.454 -> STATUS:5
00:22:39.454 ->
00:22:39.454 -> OK
Operate a Factory Reset.
00:22:55.636 -> AT+RESTORE
00:22:55.804 ->
00:22:55.804 -> OK
00:22:55.904 -> ets Jan 8 2013,rst cause:1, boot mode:(3,7)
Check the IP.
00:25:54.528 -> AT+CIFSR
00:25:54.528 -> +CIGSR:APIP,”192.168.4.1″
00:25:54.528 -> +CIFSR:APMAC,”de:4f:22:3f:73:ff”
Set the IP to 192.168.0.251.
00:30:50.999 -> AT+CIPAP=”192.168.0.251″
00:30:51.067 ->
00:30:51.067 -> OK
Result
Just using the terminal to ping the address.
It seems good because the reply is back.
Link
http://quixotia.com/jj0ppm/?p=1696
