Last Week I attended a web Seminar and they are using a software PLC named logicals.This tool may help me to test my self-project and I will try to use it.

Download

Please access the following link:

https://www.logicals.com/en/support/downloads

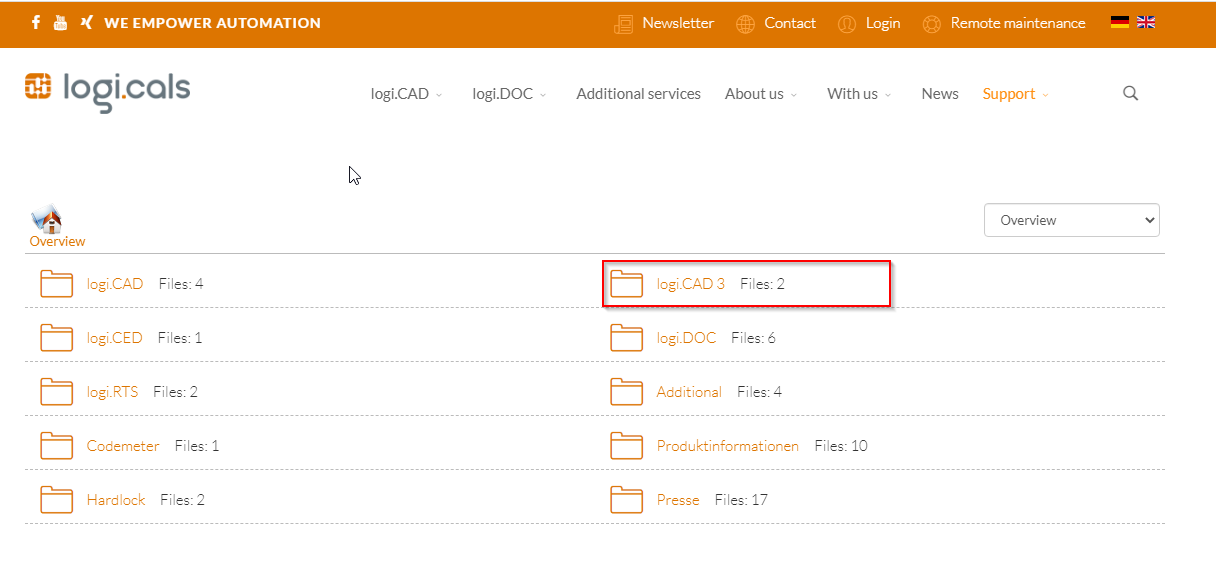

Click the Log CAD3 folder.

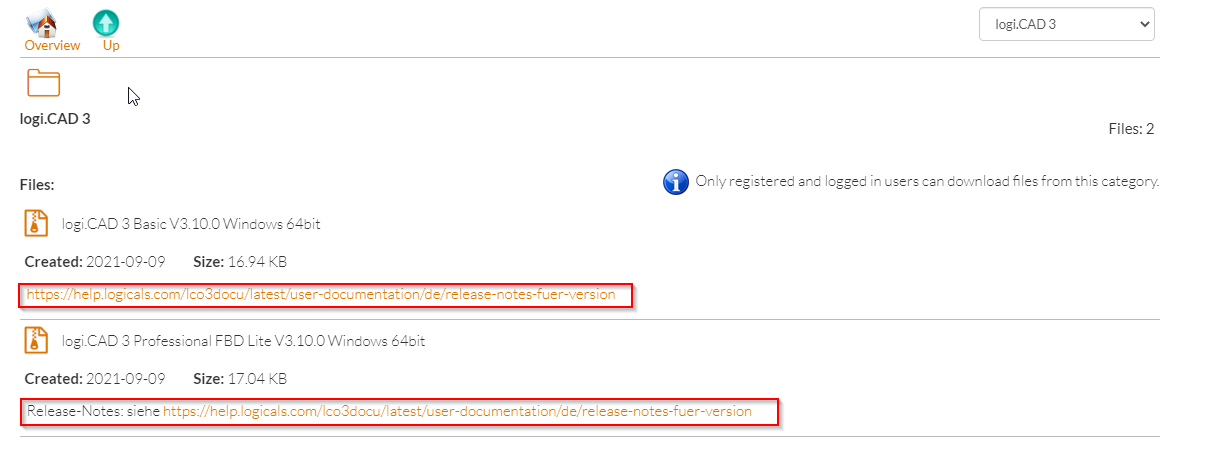

There are 2 different types of IDE, just download the version that  you want.

Here is the difference between the 2 versions.

I think Lite is better 😉

You can also Download the installation files from this field.

Zip files are downloaded.

And Please unzip it.

IDE Start

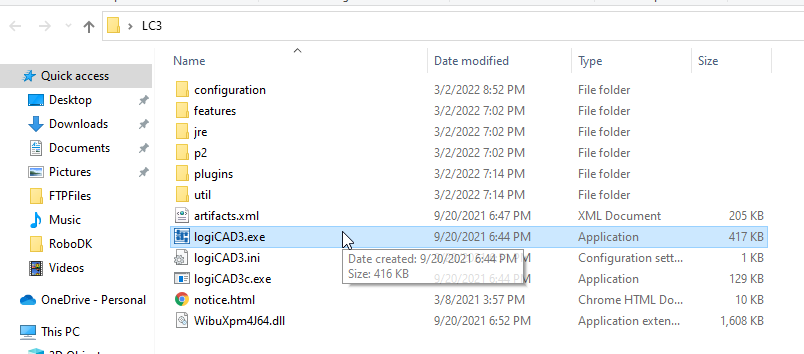

After you unzip the file,click logiCAD3.exr to start up the IDE Directly.

Please wait a minute…

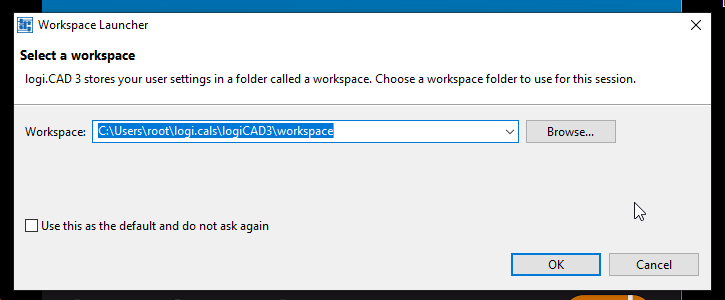

Setup your Workspace location.

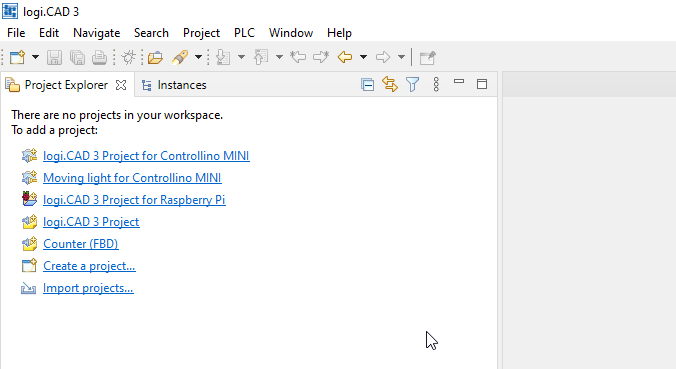

IDE is started!

Local Runtime

Finally we would like to load our application in the Local Runtime(Our PC).

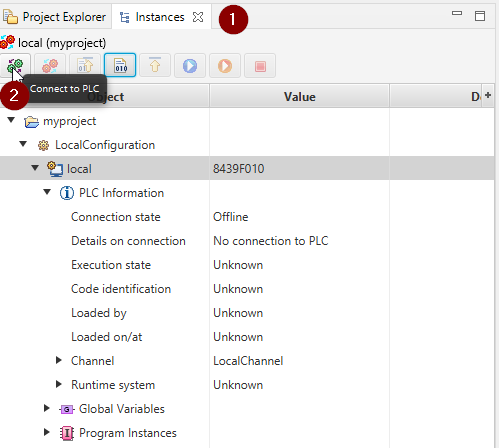

Go to Instance>Connect to PLC

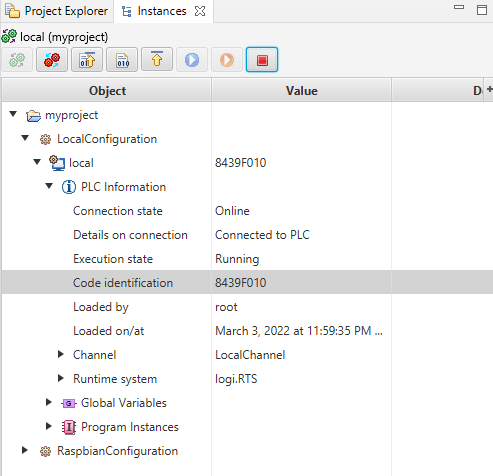

we are connected to the local runtime.

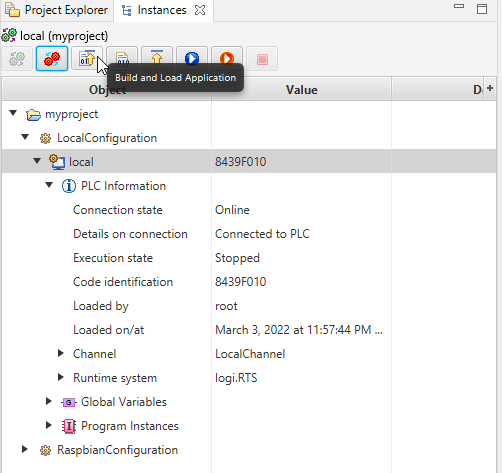

Click Build and Load Application to Load your Application.

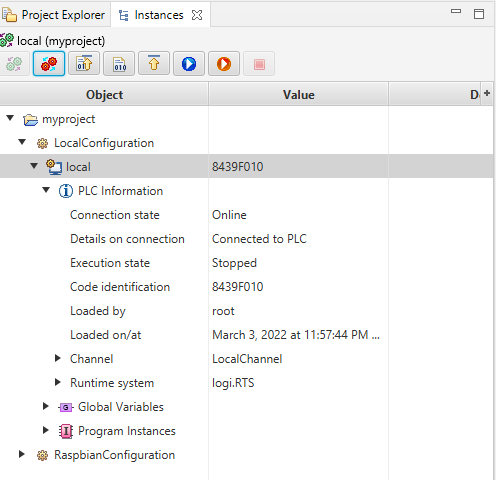

Finally press the play button to start your Runtime.

Done!
