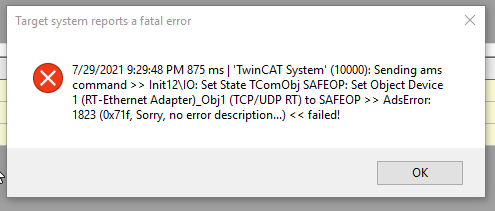

This time I got the error :AdsError:1823.

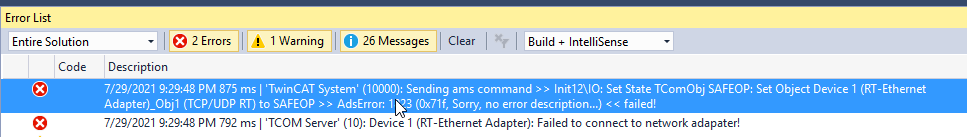

Let’s view the Error output.
RT-Ethernet Adapter is displayed 2 times in the error output.
‘TwinCAT System’ (10000): Sending ams command >> Init12\IO: Set State TComObj SAFEOP: Set Object Device 1 (RT-Ethernet Adapter)_Obj1 (TCP/UDP RT) to SAFEOP >> AdsError: 1823 (0x71f, Sorry, no error description…) << failed!
‘TCOM Server’ (10): Device 1 (RT-Ethernet Adapter): Failed to connect to network adapater!

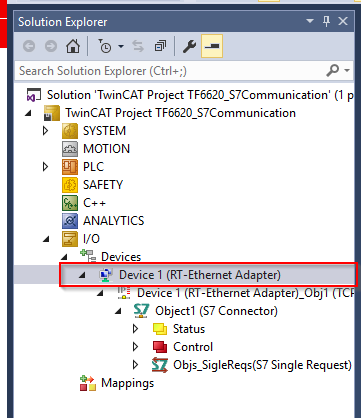

Go to RT-Ethernet Adapter tab and Double Click it.

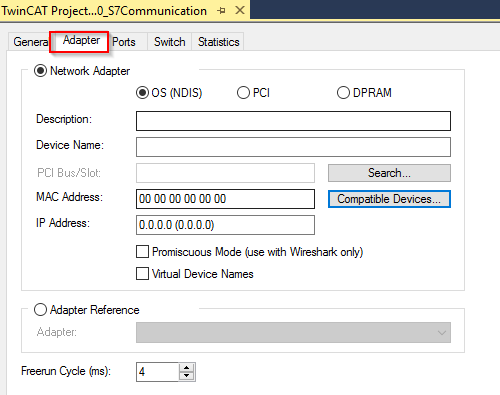

Access the Adapter Tab.

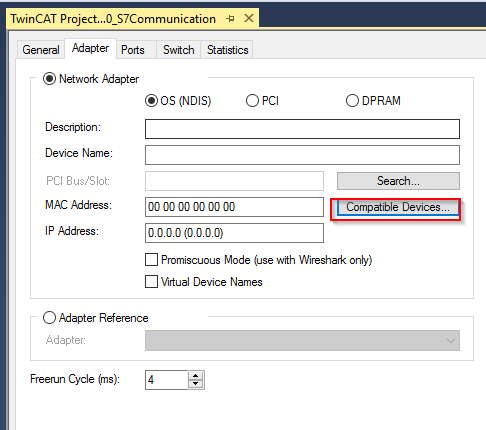

Click the Compatible Devices.
Select the Network Adapter that you are using.

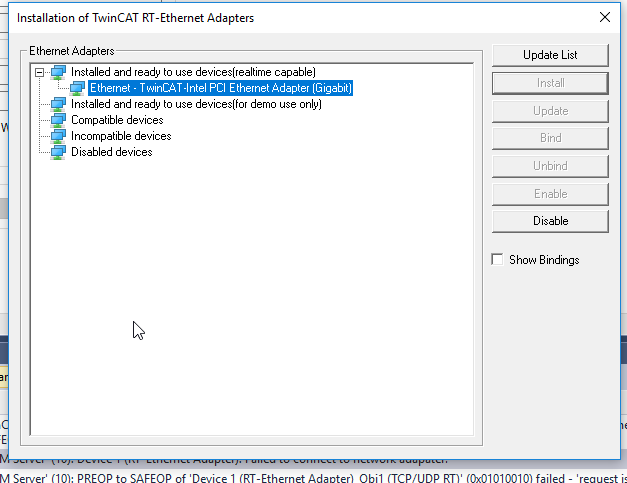

you can see the view below if the adapter is installed.
Press search.

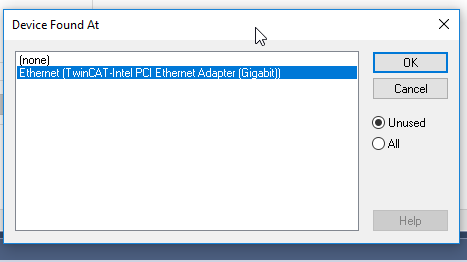

Choose the Ethernet Driver that you installed before.
OK.
Restart your TwinCAT system, the error is clear!
You can also find the same question in Beckhoff info system.
