Beckhoff#Using TwinCAT TF7000 to read a QRCode

Good morning and Hope all of you are fine. Now I am learning RoboDK for Robot operations and programming and the TF7xxx Vision library is a very good function for me to learn the Vision as a “First Step”. But I need to mention that Pointer/Ref programming, OOP programming understanding is  required in the TF7xxx Vision library.(Also the Vision knowledge.)Let’s Start!:)

About TF7xxx Vision

Firstly, TF7xxx Vision is a library that allows you to program the vision application in IEC61131-1 languages.It provides image display tool to Intermittently check the result directly, 

And also executed synchronously the image processing algorithms in real-time.

Please be aware that only the GigE Vision interface is supported. The Camera Setup, calibrating or other camera operations can be done by TwinCAT itself.

License for Camera TF700x

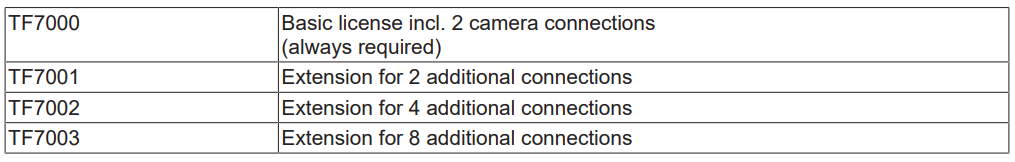

License for Library TF7xxx

Installation

Please access the following link.

TF7100 | TwinCAT 3 Vision Base | Beckhoff Worldwide

you can download the software from exe.

Double Click it to start the setup.

Please choose english.

Next.

accept the license, and Next.

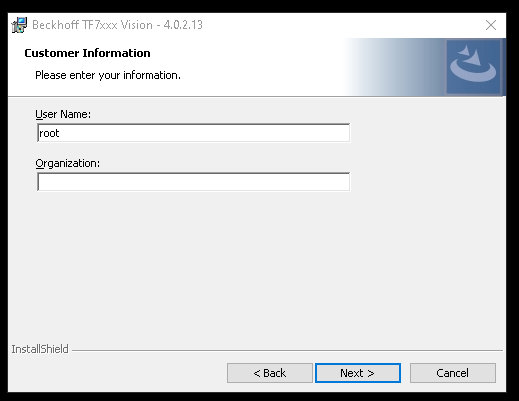

Enter your information and Next>.

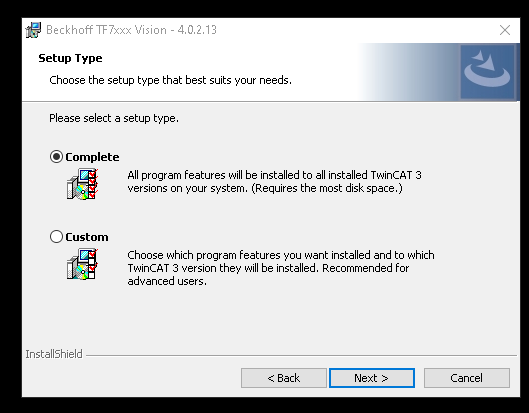

Choose Complete installation and Next.

Next.

Press install to start the operation.

Please wait a seconds..

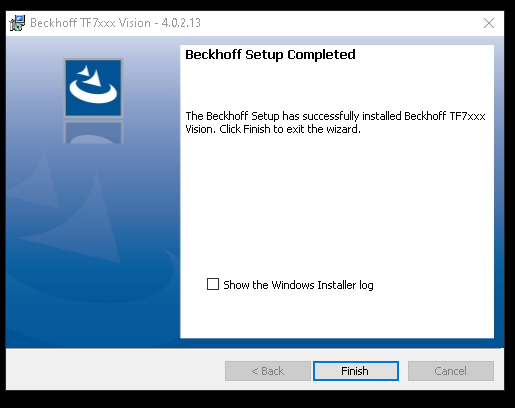

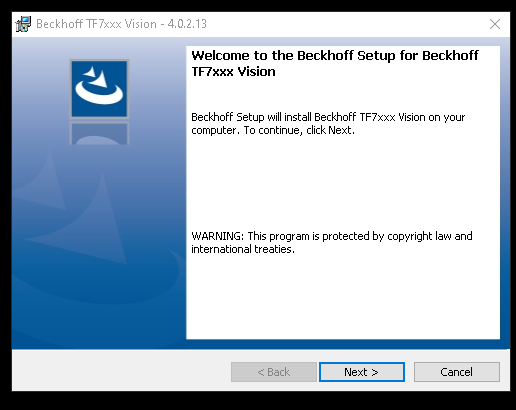

Done!

System Requirment

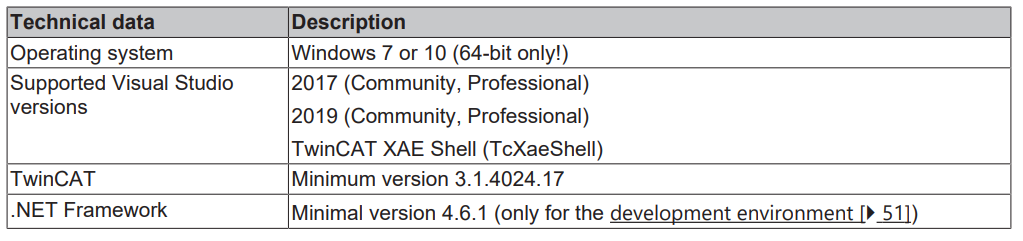

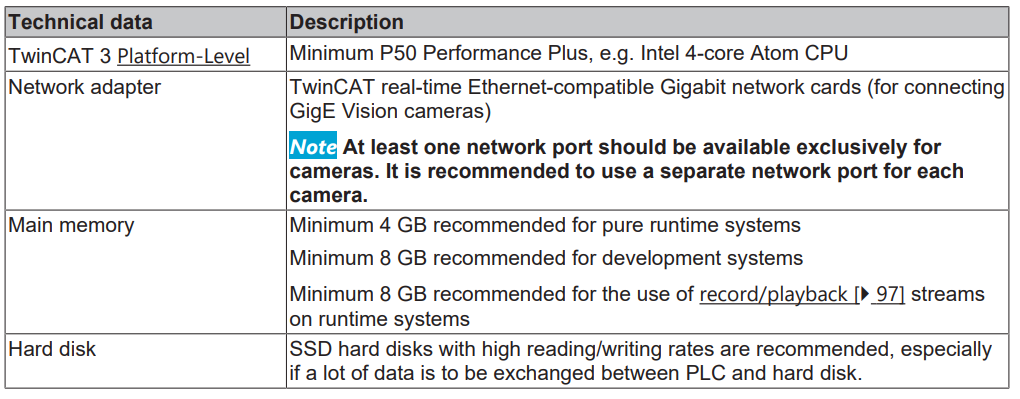

IPC

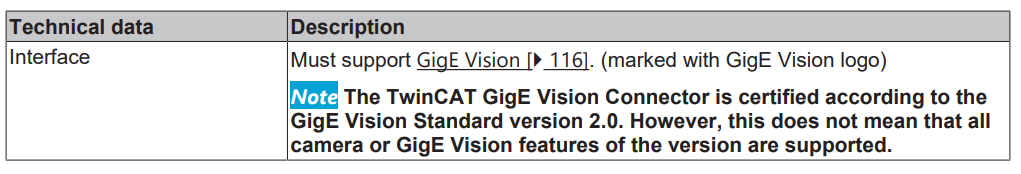

Camera

Software


SetUP A Vision Devices

Sorry I do not have a Camera and Real Beckhoff PLC also.

I will skip this part until Vision Devices comes out some day.


API

Thanks to the TwinCAT Vision library, it provided many interfaces for the programmer to process the images easily with IEC61131-3.

Interface Pointer

Here are 2 types of Interfaces that we will usually use in the program and I will explain it in the below part.

ITcVnImage:Image Processing

ITcVnContainer:a vector of several elements.

For example, I will use the F_VN_CreateImage() Function to create a new image(800 x 600 pixels of the type TCVN_ET_USINT with one channel.

IF bCreateImage THEN
hr:=F_VN_CreateImage(
ipImage
,nWidth:=800
,nHeight:=600
,ePixelType:=ETcVnElementType.TCVN_ET_SINT
,nChannelNum:=1
,hrPrev:=hr
);
IF hr <> 0 THEN
bError:=TRUE;
END_IF
bCreateImage:=FALSE;
END_IF;

And here is the image that I created:

Some Rules

1-Check before you call the method 

It is a very important operation to check if the ITcVnImage is available now or not.

If you directly access the method of the object that is not available, the runtime will crash.

It makes sense,right? And you can just check it by using a simple compare operator.

//GetInfo
IF ipImage <> 0 THEN
ipImage.GetImageInfo(
stImageInfo:=ImageInfo
);
END_IF;

2- Use F_VN Function instead of Methods of the Pointer itself.

TwinCAT TF7xxx is a greate library and provides Functions for you to safely access the Object. And These functions started from F_VN_xxx – They will auto check if the pointer is available or not now.

F_VN_GetImageInfo(
ipImage
,stImageInfo:=stImageInfo_1
,hrPrev:=hr
);

3- Declare interface pointer in VAR_INPUT

Please reset the Pointer while you are using the Pointer as a VAR_INPUT value.

As you know,FB and POU will keep the last value of the variables.

For this operation, we can make sure that the memory area will not be accessed next time.

Please copy the pointer to a local variable if you want to keep it.

VAR_INPUT    
      ipSrcImage: ITcVnImage;
END_VAR
//… functional code
ipSrcImage := 0; 

4-Release the Pointer if not used anymore.

Declare interface pointer as reference in VAR Release the interface pointer at the end of functions and methods. The interface pointer no longer exists after ending the POU; therefore the reference counter must be decremented beforehand. For programs and function blocks, the interface pointer should be released as soon as it is no longer required:

VAR    
ipImageWork: ITcVnImage;
END_VAR

//… functional code
hr := FW_SafeRelease(ADR(ipImageWork));

In fact, the Function FW_SafeRelease() is doing something like this:

IF binit THEN
IF ipImage <> 0 THEN
ipImage.TcRelease();
ipImage:=0;
END_IF
binit:=FALSE;

END_IF

5-Not recommended -declare interface pointer in VAR_OUTPUT

OK- Let me explain it easily.

The variables that you are using in POUs or FB , their values are all retained even after the call.So, if there is some event change outside,it means the memory that you can retain in the last cycle is incorrect.It will cause you to access some released memory areas.

So – please use VAR_INPUT.

HRESULT

All TwinCAT Vision functions return an HRESULT after their execution. Its value indicates whether the execution was successful or not.

It is the same concept as File Access and it is just a return value.

Here is the snapshot from the Manual that shows how to encode the HRESULT in SUCCESS.

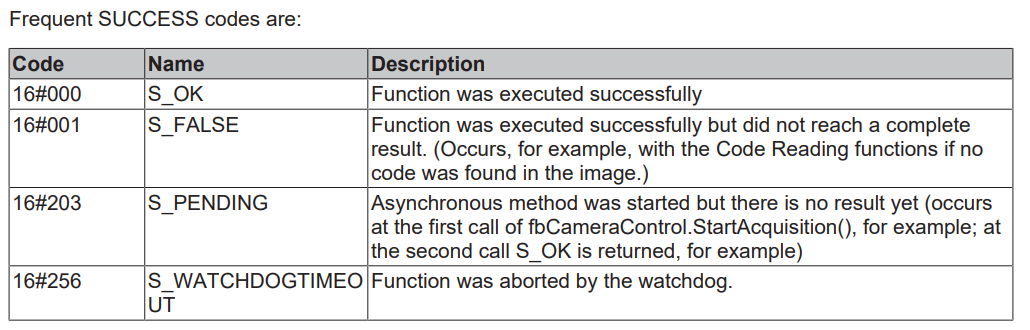

And Here is the table that has an explanation About the SUCCESS Code.

Here is the snapshot from the Manual that shows how to encode the HRESULT in Fault.

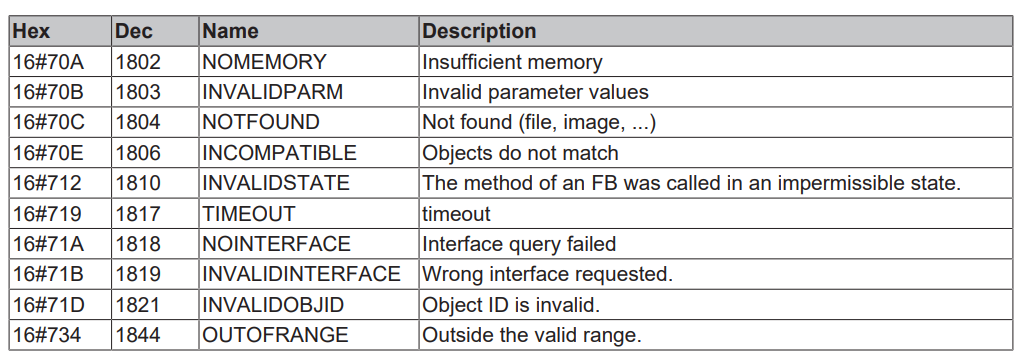

And Here is the table that has an explanation About the Fault Code.

You can use the SUCCEEDED() Function to check if the HRESULT value is successful or not.

PROGRAM MAIN
VAR     hr     : HRESULT := S_OK;
END_VAR

IF SUCCEEDED(hr) THEN    
//code
END_IF

Image processing

ITcVnImage Interface is the Basic interface of the image processing.And also in the Example I will use this image to read the image to TwinCAT and search the QRCode.

This ITcVnImage interface provides methods to access  the image data – such as image size,pixel type, raw image data..etc.

Container

Container is a special element that has a vector of several elements.And the number of elements can be changed dynamically.

If the image determines its shape,position and size and describe it by contour points.So – the Container can store your Contour points.

Different types of variables can not be fixed in a container.

By now, We do not need to think too much about this and just image it as a “Box” to allow you to store the variables.

PROGRAM MAIN VAR    
hr           : HRESULT;    
ipContainer  : ITcVnContainer;
END_VAR

Here is a simple flow of how Container works.

Sure there are so many advanced concepts like copy the container, Assign Container inside the Container, I will not explain too much here.

  1. Images are read from File System to TwinCAT.
  2. Detects and search the QRCode inside the Image.
  3. QR data that is decoded and assigns this data into Containers memory.It may be just some data that is not readable.
  4. Use Function to get the Container data in User Program
  5. your readable data is returned.

Function/Function Block 

The TwinCAT TF7xxx vision library has many Function and Function Blocks, it is not possible to explain it one by one.

I will show the FB/FC that is used in this example.

FB_VN_ReadImage

 This is the function block to Read an image from the file system.

VAR_INPUT

sFilePathSTRING The Full path of your Image file.
ipDestImage Reference To ITcVnImageThe return image that is loaded.
bRead BOOL use a rising edge to trigger the image reading 
nTimeout TIME VISION_ADS_TIME OUTThe time before the function is canceled.


VAR_OUTPUT

bBusyBOOL True=Function Block is running..
bErrorBOOL True=Error has occurred.
nErrorIdUDINTError information

F_VN_ReadQRCode

Detect and Define a QRCode from the provided image.

VAR_INPUT

ipSrcImageITcVnImageThe source Image,1 or 3 Channel,can be RGB but convert to Gary internally
ipDecodeDataReference To ITcVnContainerThe code inside QRCode is returned
hrPrevHRESULTThe result of the previous operations.

Return Value

F_VN_ReadQRCodeHRESULTThe result of the operation

F_VN_ExportSubContainer_String

Export the String from the SubContainer.

VAR_INPUT

ipContainerITcVnContainer Container type with ContainerType_Vector_String_SINT 
nIndexULINT
hrPrevHRESULTThe result of the previous operations.
sTextSTRING The Text inside the Container
nMaxLength ULINTMaximum string length to export
hrPrevHRESULTThe result of the previous operation.

Return Value

F_VN_ReadQRCodeHRESULTThe result of the operation


Implemention

Configuration

In this Example, I will use RoboDK as an OPC UA Client and Thanks to their Camera simulation function – the operation of pick up a box>Take photo>place down can be implemented.

For the TwinCAT Side, TF6100 is used as OPC UA Server and TF7250 for searching and reading the QR code inside the image.

Sorry that I will not explain too much of how to implement the RoboDK section in this tutorial.Because it is just some python scripts.
Please download the project and get more information.

You can use Connect > Simulate 2D Camera to Simulate a 2D camera.
After that you can use any method to work with it.


Flow

Here is the working Flow.

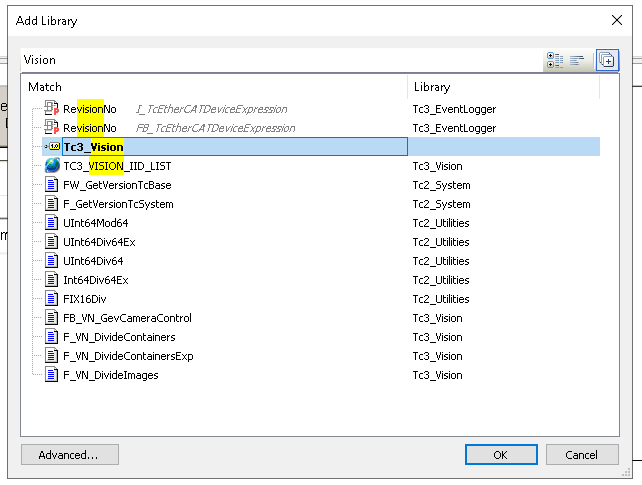

Add library

OPCUA Connections

Please reference the following link to configurare an OPC UA Server.

Beckhoff#Using TwinCAT TF6100 to startup OPCUA Server | (soup01.com)

Script to Create QRCode

from robolink import *  # RoboDK API
from robodk import *  # Robot toolbox
import qrcode
import tempfile


#———————————————-
# Create the QR code
data = mbox(“QRCode inside the text;”, entry=”Beckhoff.com”)
if data is None or data is False or type(data) is not str:
    # User cancelled
    quit()
img = qrcode.make(data)

#———————————————-
# Save to file

filename=None
if filename is None or filename == ”:
    filename=r”C:\Users\root\Desktop\qrcode1.png”

img.save(filename)

import os.path
if not os.path.exists(filename):
    quit(-1)

# Import in RoboDK
RDK = Robolink()
img_item = RDK.AddFile(filename)
if not img_item.Valid():
    quit(-1)


Program

Here is the code that reads the image from the file system and then detects the QRCode. Display the information by TE1800.

VAR

VAR
//FB
FB_Images:FB_VN_ReadImage;
R_TRIG1,R_TRIG2 :R_TRIG;
TON:TON;
hr,hr2:HRESULT:=S_OK;
index:ULINT;
//Pointers
ipImage:ITcVnImage;
ipDecodedData:ITcVnContainer;
stImageInfo_1:TcVnImageInfo;
ImageInfo:TcVnImageInfo;
//Trigger Devices
read:BOOL;
readQR:BOOL;
binit:BOOL;
safetyInit:BOOL;
//Image Information
width:UDINT;
height:UDINT;
sText:STRING;
END_VAR

Code

//init
IF binit THEN
IF ipImage <> 0 THEN
ipImage.TcRelease();
ipImage:=0;
END_IF
binit:=FALSE;

END_IF
//Safety Init
IF safetyInit THEN

FW_SafeRelease(ADR(ipImage));
FW_SafeRelease(ADR(ipDecodedData));
safetyInit:=FALSE;
read:=FALSE;
readQR:=FALSE;
hr:=0;
hr2:=0;
END_IF

//GetInfo
IF ipImage <> 0 THEN
ipImage.GetImageInfo(
stImageInfo:=ImageInfo
);
END_IF;

F_VN_GetImageInfo(
ipImage
,stImageInfo:=stImageInfo_1
,hrPrev:=hr
);

//Robot Status Handshake
R_TRIG1(
CLK:=GVL_OPCUAServer.Node.Command2 = 1
OR GVL_OPCUAServer.Node.Command2 = 3

);

R_TRIG2(
CLK:=GVL_OPCUAServer.Node.Command1 = 1
);

IF R_TRIG2.q THEN
GVL_OPCUAServer.Node.Command2:=0;
height:=0;
width:=0;
sText:=”;
END_IF

IF R_TRIG1.Q THEN
GVL_OPCUAServer.Node.Command1:=0;
END_IF


//Read the Image
//Trigger the Image read Function
FB_Images.bRead:=read;
FB_Images(
sFilePath:=’C:\images\Images.png’
,ipDestImage:=ipImage
);
TON(
IN:=readQR
,PT:=T#0.1S
);

//Trigger the QR Read Function
IF NOT FB_Images.bError AND read THEN
readQR:=TRUE;

END_IF
//get the image information
IF readQR THEN
IF ipImage <> 0 THEN
ipImage.GetHeight(nHeight:=height);
ipImage.GetWidth(nWidth:=width);
END_IF;
END_IF;
//read the QRCode
IF TON.q THEN
hr:=F_VN_ReadQRCode(
ipSrcImage:=ipImage
,ipDecodedData:=ipDecodedData
,hrPrev:=hr
);
//Get the Text from Container
IF SUCCEEDED(hr) AND ipImage <> 0 THEN
hr:=
F_VN_ExportSubContainer_String(
ipContainer:=ipDecodedData
,sText:=sText
,hrPrev:=hr
,nIndex:=index
,nMaxLength:=255
);

IF SUCCEEDED(hr) THEN
read:=FALSE;
readQR:=FALSE;
FW_SafeRelease(ADR(ipDecodedData));
END_IF
END_IF;
END_IF;

Visualization

Run Button:Start commands to RoboDK

Snap!:Snap Shot trigger to RoboDK.

Read QR Data:Read the images.

Clear QR Data:Clear all the pointers, data, flag.

Sample Code

TwinCAT3/Demo_ReadQRCode_WithTwinCAT.zip at main · soup01Threes/TwinCAT3 (github.com)

Result
