In this article we present the PSEN sl-2 ml door lock from Pilz. The safety gate system prevents the opening of safety gates into hazardous areas while hazards are present in the hazardous area. The guard lock is suitable for personal protection and can also be used as a mechanical guard in accordance with EN ISO 14119.
Let’s enjoy FA.
Thanks!
This article was made possible by the loan of equipment from Pilz Japan. Thank you very much.
PILZ
PILZ supports factory automation sites as a total solution supplier with solutions in safety and automation technology, guaranteeing the safety not only of people, but also of machines and the environment, and how safely machines and equipment can be operated. Pilz has 42 subsidiaries and branch offices worldwide and is active in various fields such as packaging, automotive industry, robotic applications, as well as wind power and railroad technology.
Office:
ピルツジャパン株式会社
〒222-0033
横浜市港北区新横浜3-17-5
いちご新横浜ビル 4階
HP

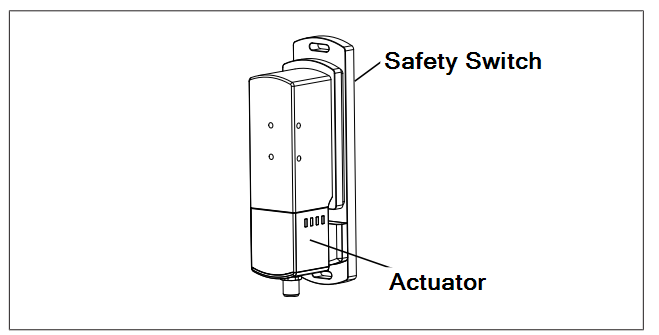

Layout

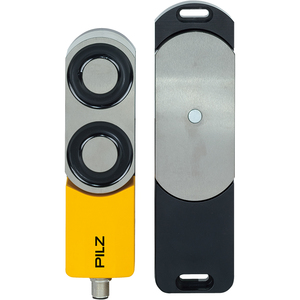

This is the PSEN sl-2 ml door lock from Pilz used in this article.

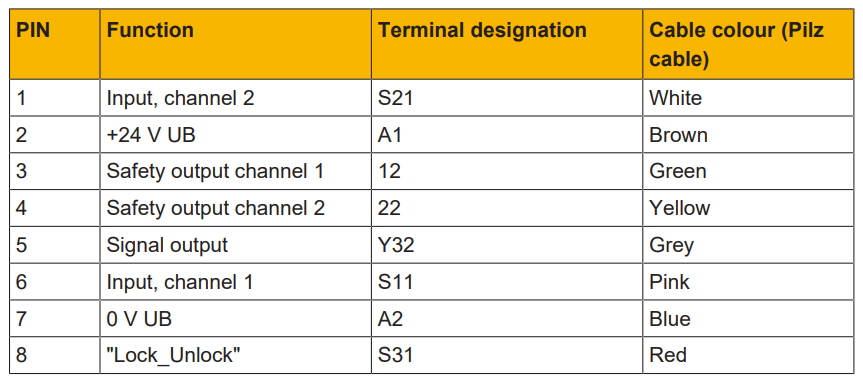

Connector
Here is the wiring for the door lock used in this article.

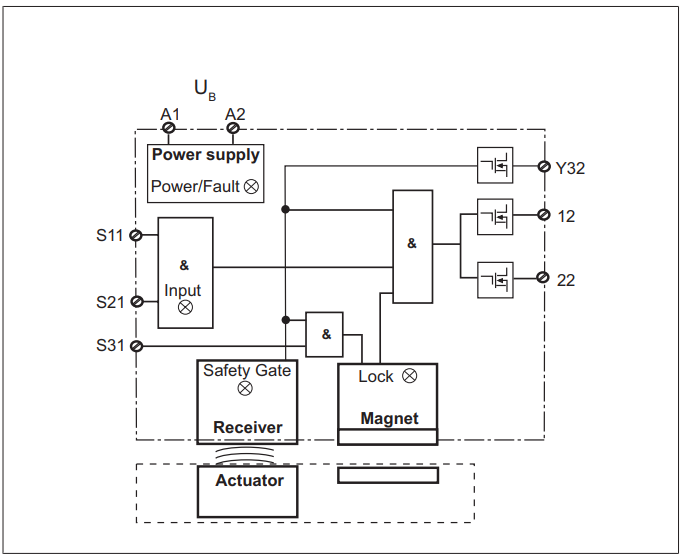

Operaton Example
A High signal is generated on safety outputs 12 and 22 when the following occur simultaneously:
- Actuator is within response range (safety gate is closed)
- Inputs S11 and S21 are High signals
- Input S31 is a High signal （control command for magnetic guard lock)
Safety outputs 12 and 22 are Low when at least one of the following conditions is met:
- Actuator is out of response range
- Input S11 or S21 is a Low signal
- Input S31 (control command for magnetic guard lock) is Low
Signal output Y32
- Signal output Y32 receives a High signal when the actuator is within response range (safety gate closed).
Demo Wiring
Here is the DEMO wiring for this project.
Result
You can see the actual operation in this video.
