In 2026, AUTONDMY’s OPENPLC V4 underwent a major update, with both the Editor and Runtime officially releasing V4! This series will conduct various tests using OPENPLC V4 in practice. Episode 3 introduces creating a Python FB.

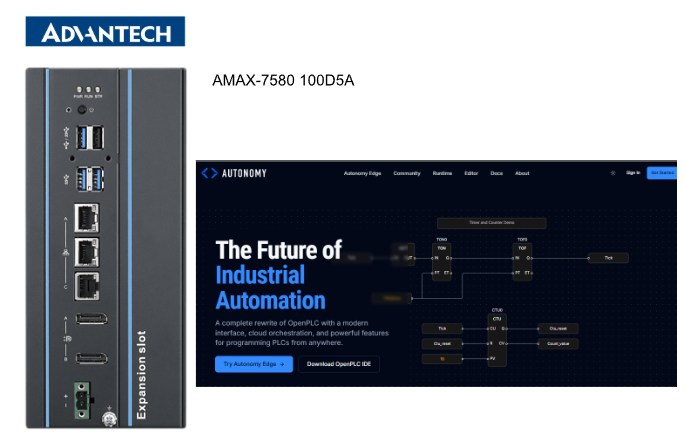

Additionally, install the Open PLC Runtime on the Docker container of Advantech’s AMAX-7580 100D5A.

Let’s enjoy the FA!

Foreword

Thank you from the bottom of my heart for visiting my technical blog and YouTube channel.

We are currently running the “Takahashi Chris” radio show with Full-san (full＠桜八重 (@fulhause) / X) which I deliver every Wednesday night.

Sharing, not hoarding, technical knowledge

We publish technical information related to factory production technology and control systems for free, through blogs and videos.

With the belief that “knowledge should be accessible to everyone,” we share practical know-how and real-world troubleshooting cases from our own field experience.

The reason we keep it all free is simple: to help reduce the number of people who struggle because they simply didn’t know.

If you’ve ever thought:

“Will this PLC and device combination actually work?”
“I’m having trouble with EtherCAT communication—can someone test it?”
“I want to try this remote I/O, but we don’t have the testing environment in-house…”

Feel free to reach out!If lending equipment or sharing your configuration is possible, we’re happy to verify it and share the results through articles and videos.

(We can keep company/product names anonymous if requested.)

How can you support us?

Currently, our activities are nearly all unpaid, but creating articles and videos takes time and a proper testing environment.If you’d like to support us in continuing and expanding this content, your kind help would mean a lot.

Membership (Support our radio show)

This support plan is designed to enhance radio with Mr Full.

https://note.com/fulhause/membership/join

Amazon Gift List (equipment & books for content production)

Lists equipment and books required for content creation.

https://www.amazon.co.jp/hz/wishlist/ls/H7W3RRD7C5QG?ref_=wl_share

Patreon (Support articles & video creation)

Your small monthly support will help to improve the environment for writing and verifying articles.

https://www.patreon.com/user?u=84249391

Paypal

A little help goes a long way.

https://paypal.me/soup01threes?country.x=JP&locale.x=ja_JP

Just trying to share things that could’ve helped someone—if only they’d known.

Your support helps make knowledge sharing more open and sustainable.

Thank you for being with us.

soup01threes＊gmail.com

https://x.com/3threes2

Technical knowledge shouldn’t be kept to ourselves.

Reference Link

http://soup01.com/en/category/openplc_en/

Implementation

Now let’s actually start creating the program.

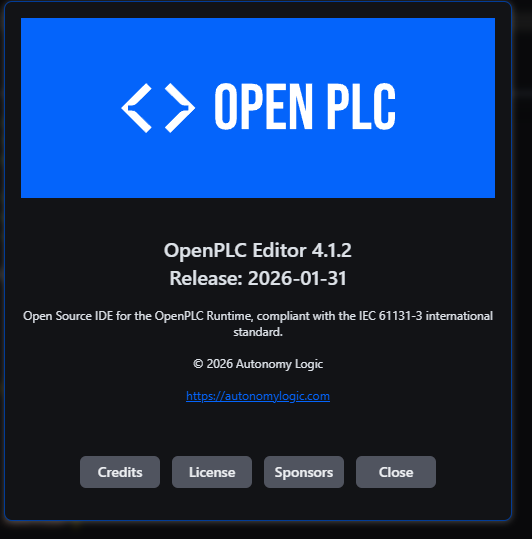

Editor Version

To use Python FB with OpenPLCV4, you must use version 4.1.2 or later.

Runtime Installation

Next, install Runtime directly to IPC using the following command.

git clone https://github.com/Autonomy-Logic/openplc-runtime.git cd openplc-runtime sudo ./install.sh

Please wait a moment…

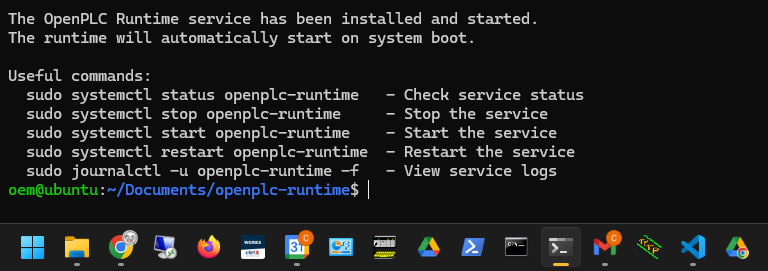

Done!

Next, use the following command to check the runtime status of OPENPLC V4.

sudo systemctl status openplc-runtime.service

Trouble

Next, I’ll explain the error I encountered when installing Runtime directly on IPC and how I resolved it.

fatal: unable to access

The first error encountered was an inability to access github.com.

fatal: unable to access ‘https://github.com/Autonomy-Logic/openplc-runtime.git/’: Could not resolve host: github.com

Verify Internet Connection

First, check if you are connected to the Internet.

ping 8.8.8.8

DNS Resolution Verification

Next, we’ll verify if it can communicate with github.com.

ping github.com

DNS Settings Correction

In my case, it was a DNS configuration issue, so fixing it as shown below should work.

sudo nano /etc/resolv.conf nameserver 8.8.8.8 nameserver 8.8.4.4

Add Python FB

Next, add a Python function block. Click the + button in the project tree → Function Blocks → Set the Language to Python, then enter the POU name.

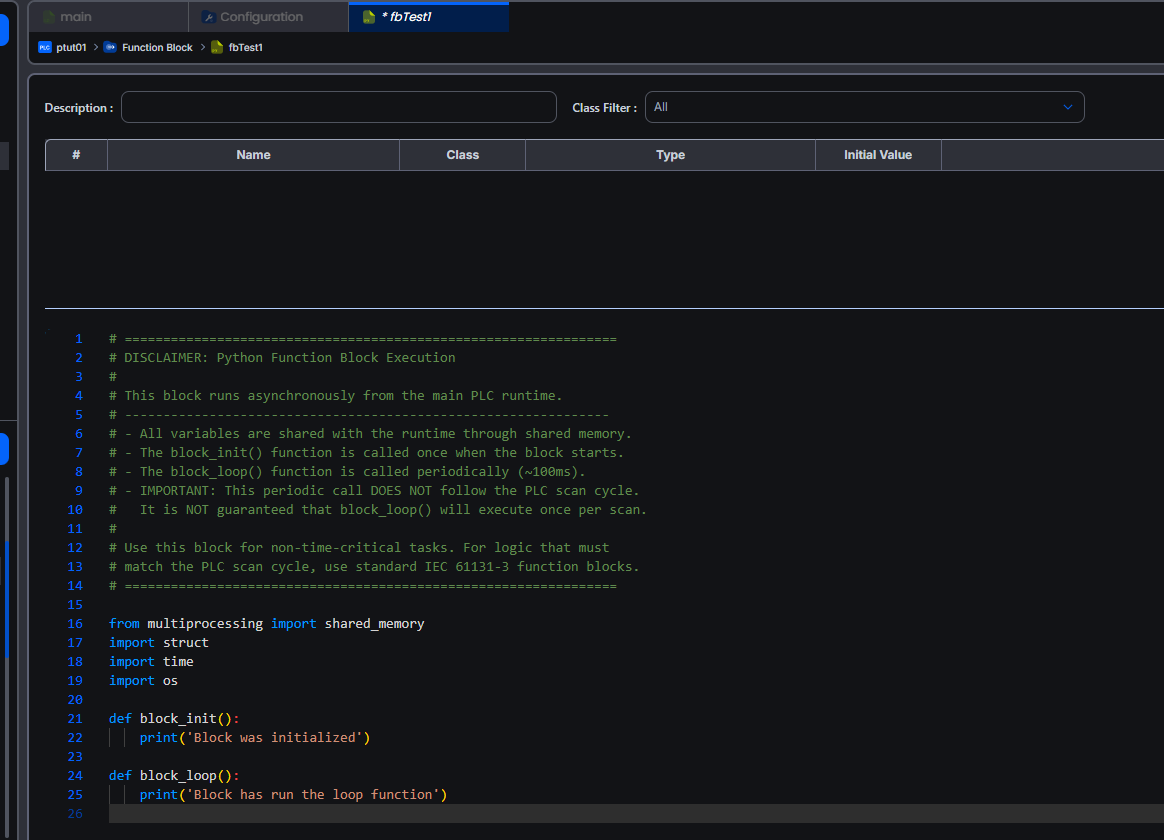

Done!So the Python FB template was generated.

Warning!

Using Python Function Blocks in OPENPLC V4 Runtime:

Python FB runs asynchronously from the PLC main runtime.
All variables are shared with the runtime via shared memory.
The block_init() function is called only once when the block starts.
The block_loop() function is called periodically (approximately every 100ms).
This periodic call does not follow the PLC scan cycle.
There is no guarantee that block_loop() will execute once per scan.
Use this block for tasks without time constraints.
For logic that must align with the PLC scan cycle, use standard IEC 61131-3 function blocks.

Code

Here is the Python FB code for this session.

This program creates a text file and continuously increments a variable within a block_loop.

from multiprocessing import shared_memory
import struct
import time
import os

def block_init():
print(‘Block was initialized’)
global iCounter,xCreate
iCounter=0
xCreate=0

def block_loop():

print(‘Block has run the loop function’)
global iCounter
global xCreate
iCounter=iCounter+1
if xCreate:
with open(“/home/oem/Documents/example.txt”, “w”) as f:
f.write(“Hello, World!”)

xCreate=False
