This Time I will show how to use TF4500 Beckhoff TwinCAT SPeech. We can use this Function to build communication between humans and machines by Voice input/output.

Of course it not only supports English but also other languages – It may be used in any case of FA production Site.

We can use TF4500 for:

Output Voice from PC-Base Controller
Using Microsoft SAPI to input/output the sounds
Using Amazon Polly to output the sounds

It is possible to use Microsoft SAP in offline applications,Amazon Polly is your choice also if the internet is connected.

TwinCAT Speech is made by two important components – ASR(Automatic Speech Recognition) and TTS(Text-to-Speech).

System Requirement

Please be careful in the Visual Studio and HMI version.

Sound Card Test

Before we install the TF4500 in our machine, let’s test the sound card first.

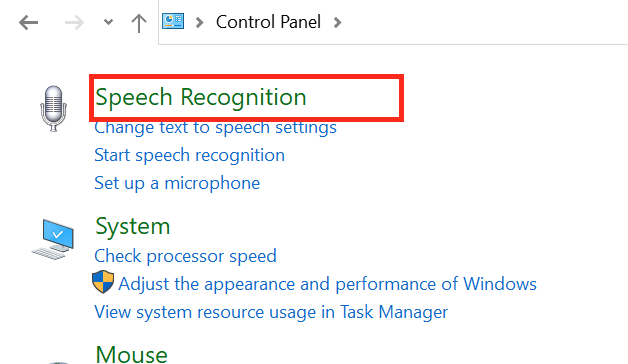

Open your Control Panel.

Click the Speech Recognition.

Click the Text to Speech.

Choose which voices that you want to output and Click the Preview Voice to check your voice card is working or not.

Install

Not only TF4500, you also need to install TF2000 HMI Server and .NET Runtime.

TF4500

Please access the following link the download the exe file.

https://www.beckhoff.com/en-en/products/automation/twincat/tfxxxx-twincat-3-functions/tf4xxx-tc3-controller/tf4500.html

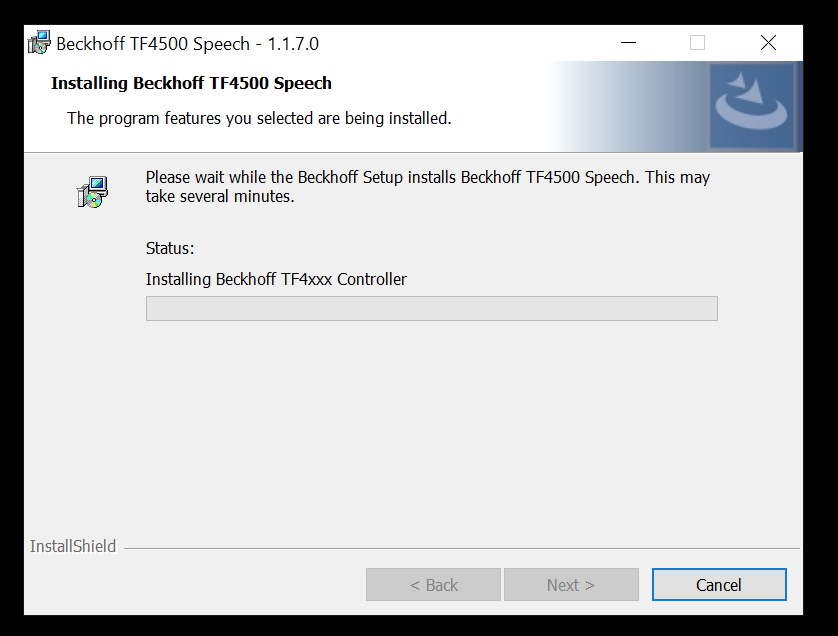

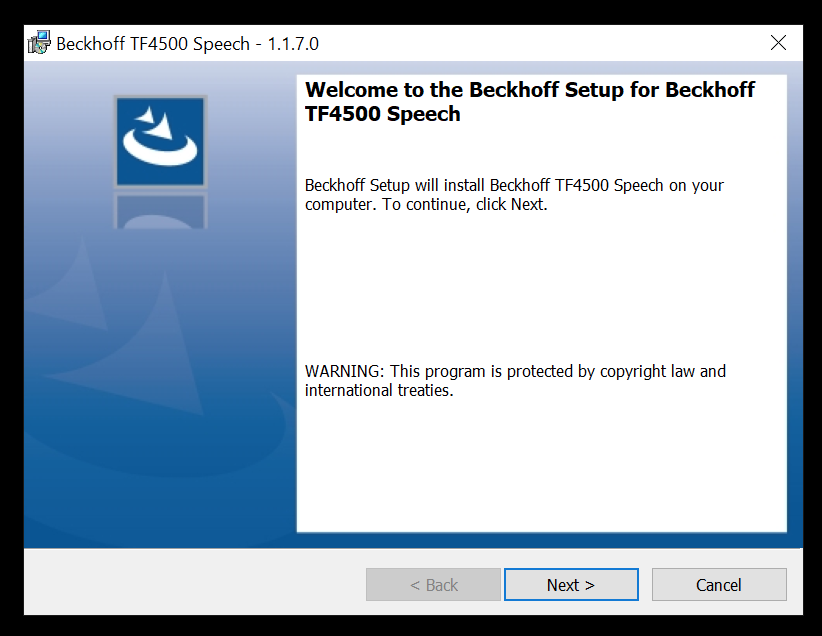

Please wait a minute…

Next>.

Agree the license and Next>.

Next.

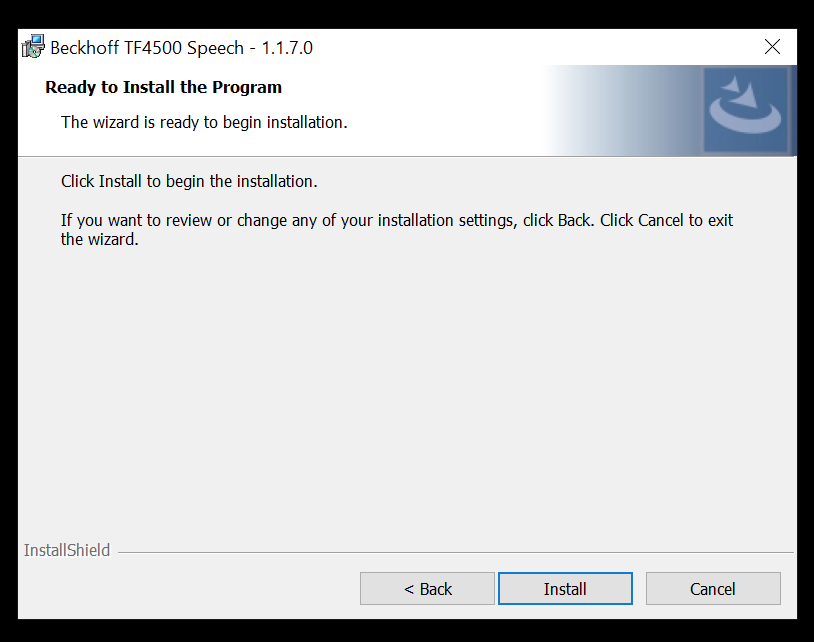

Click Install.

Please wait a minute..

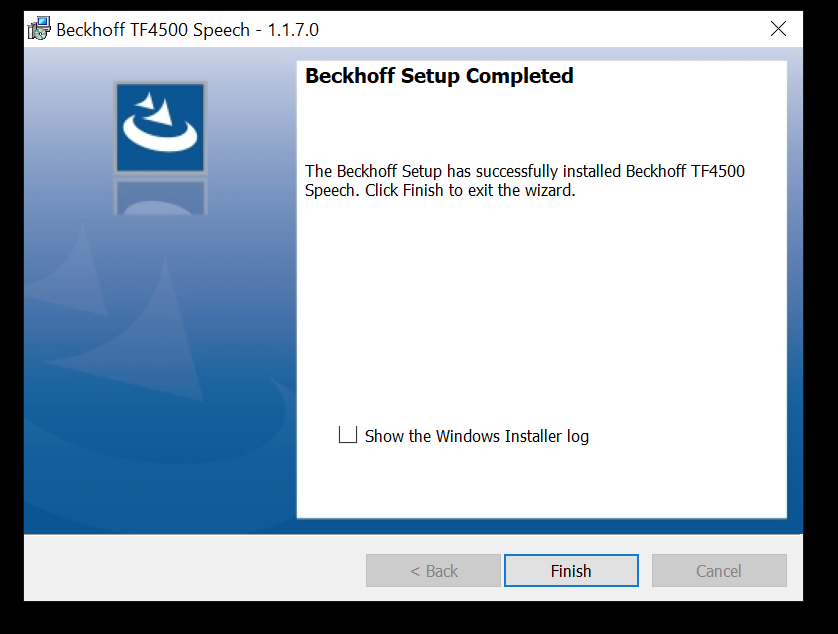

OK, now TF4500 is installed.

HMI Server install

Access the following link to download the exe file.

https://www.beckhoff.com/en-en/products/automation/twincat/tfxxxx-twincat-3-functions/tf2xxx-tc3-hmi/tf2000.html

Choose English and OK.

Please wait a minute..

Next>.

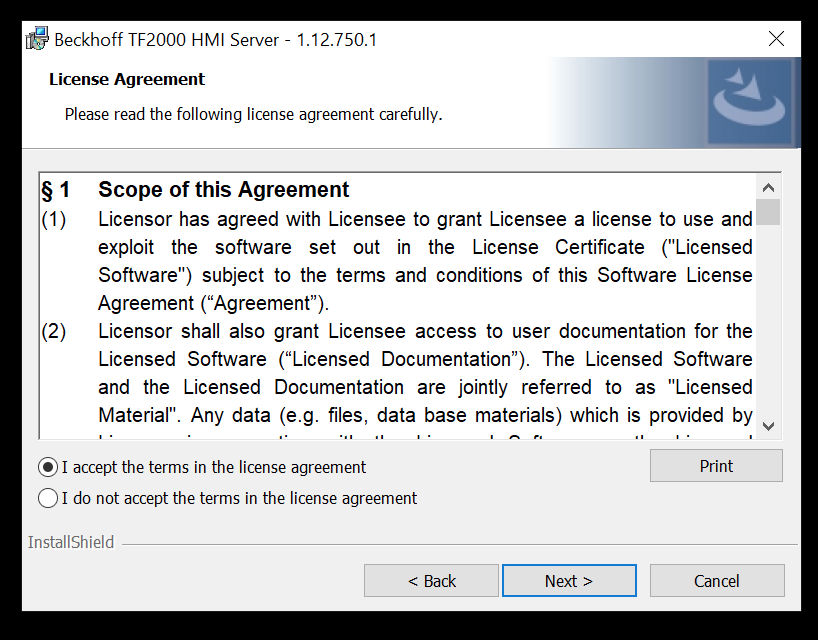

Agree the license and Next>.

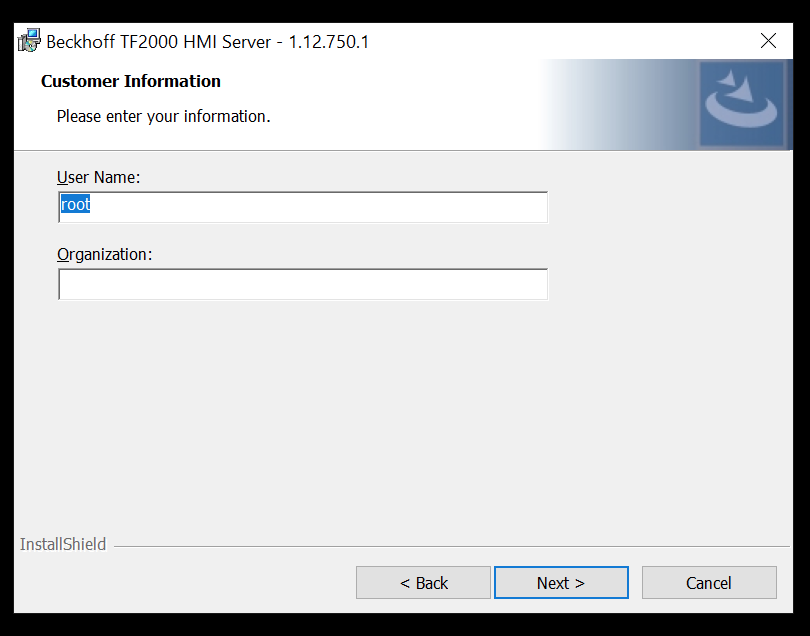

Enter your information and Next.

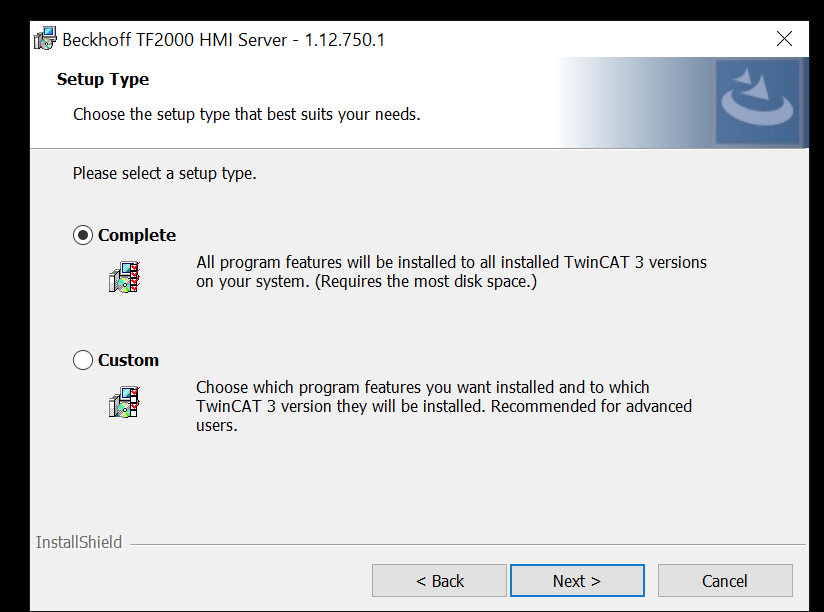

Choose Complete and Next>.

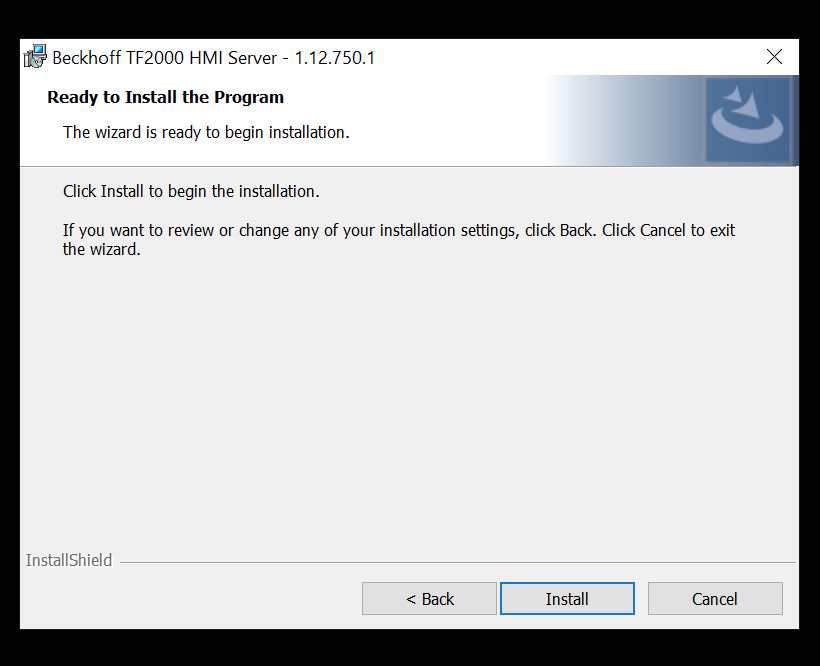

Click install.

Wait a mins..

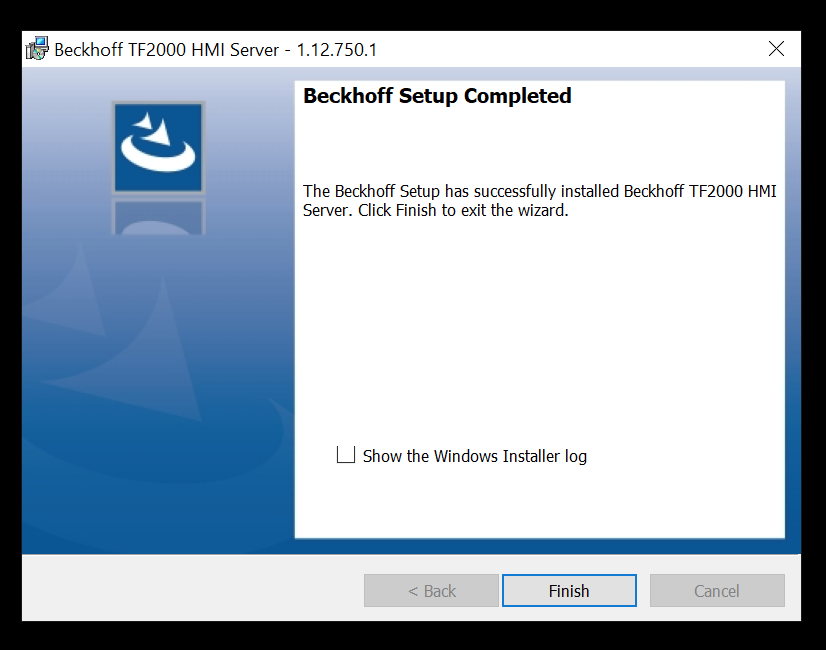

Now the TF2000 is also installed.

Visual Studio download

Please use the 2017 or 2019 version.

https://my.visualstudio.com/Downloads?q=visual%20studio%202017&wt.mc_id=o~msft~vscom~older-downloads

.NET Runtime Install

You can download the Runtime in the link below or from NS Visual Studio.

https://dotnet.microsoft.com/download

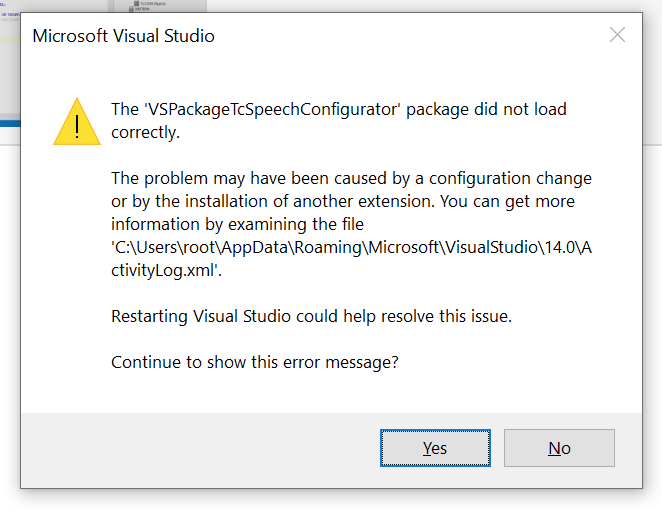

Microsoft Visual Studio Error

If you get the error message like VSPackageTcSpeechConfigurator package did not load correctly,please check your Visual Studio version.

Concept

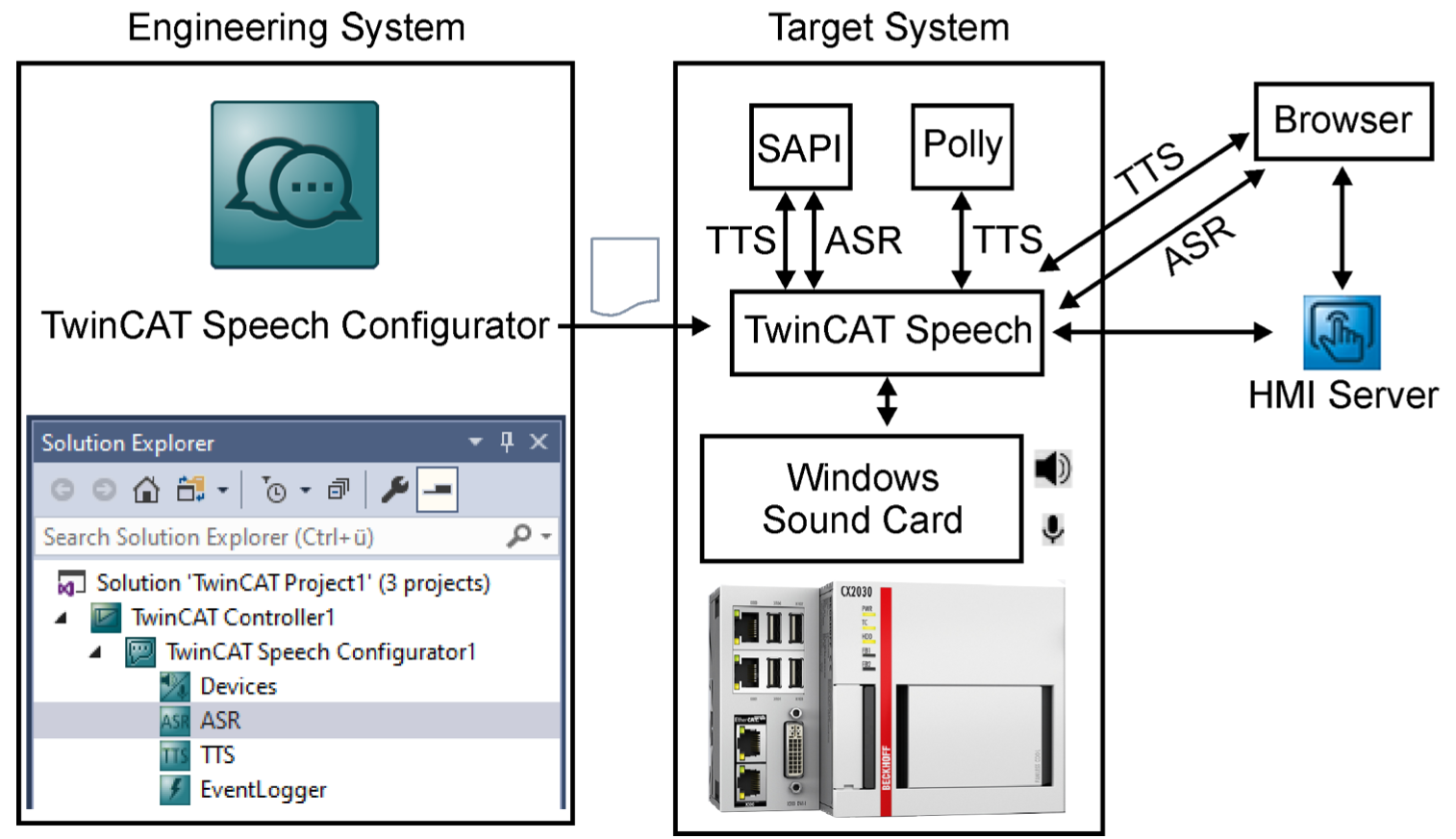

OK,let me explain it clearly – TwinCAT Speech is using the Sound-card for the Speech input/output operation. We will use the Speech Configurator inside the TwinCAT Engineering system to configure it, and download the Configuration file inside the TwinCAT Runtime.

We will not explain what HMI Server is this time.

SAPI is the Speech Application Programming Interface, the API that is provided by Microsoft.

Support ASR

ASR=Automatic speech Recognition is the technology that detects Speech input and changes it to Text.

Support TTS

TTS=Text-to-Speech is the technology to create the human sounds output from your system.

(For Example,Siri in MAC)

Function Block

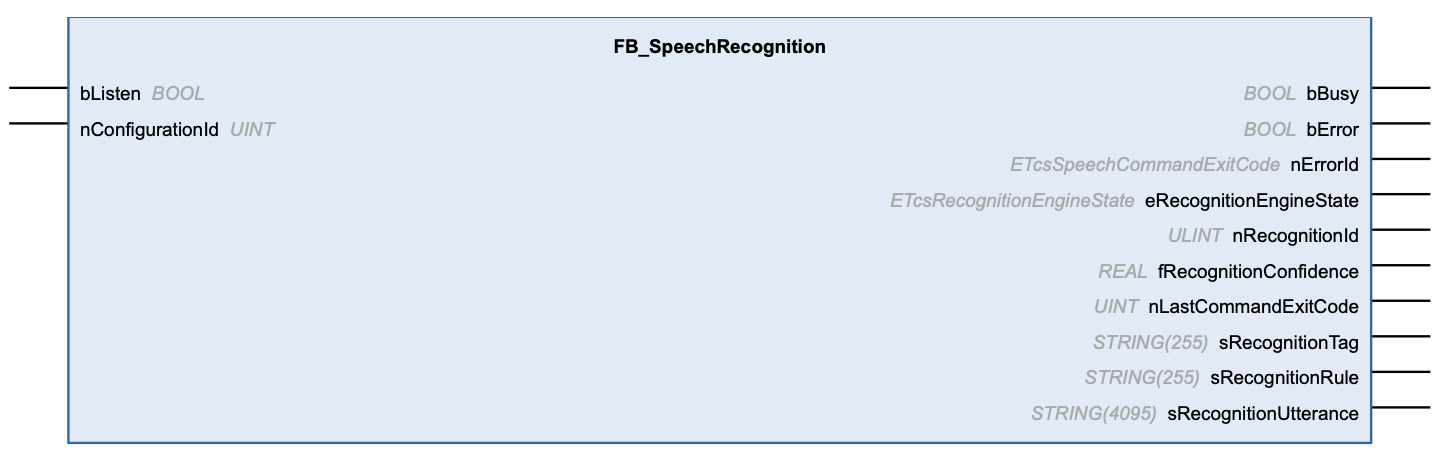

FB_SpeechRecongnition

This is the Function for Speech Recognition.

You can start the operation by a Rise up signal of bListen.

VAR_INPUT
bListen	BOOL	Rise up Edge to start the Speech Recognition.
nConfigurationId	UINT	Reference to ASR Configuration ID
VAR_OUTPUT
bBusy	BOOL
bError	BOOL
nErrorId	ETcsSpeechCommandExitCode	Error information
eRecognitionEngineState	ETcsRecognitionEngineState	The current status of the Speech Recognition Engine.
fRecognitionConfidence	REAL	The confidence of the last Speech Recognition data
nLastCommandExitCode	UINT	The Exit Code of the last operation.
sRecognitionTag	STRING(255)	The last Recognition Tag
sRecognitionRule	STRING(255)	The last Recognition Rules
sRecognitionUtterance	STRING(4095)	The last Text data of the operation

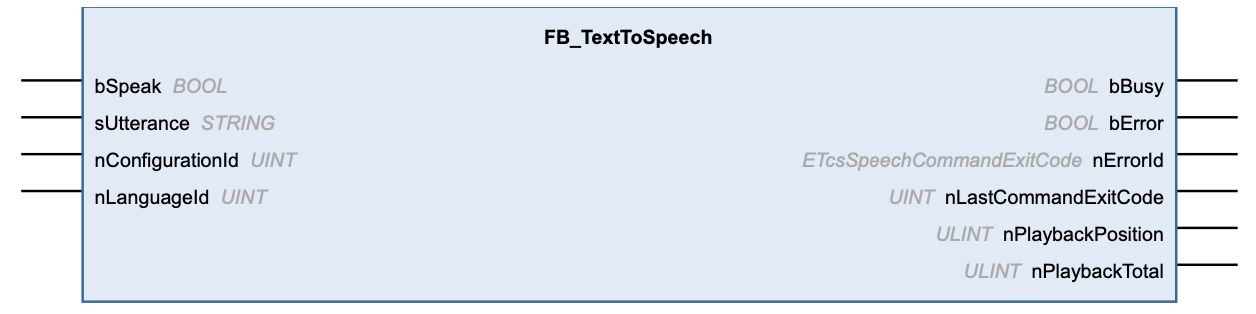

FB_TextToSpeech

This is the function block to output the Speech.

The speech will be output while there is a Rise up edge of bSpeack ,reference to nConfigurationId(TSS ID) and nLanguageId(1033..etc) and sUtterance(output speech data).

VAR_INPUT
bSpeak	BOOL	Rise Up Edge to start the speech output
sUtterance	STRING	The text output data
nConfigurationId	nConfigurationI	TSS ID

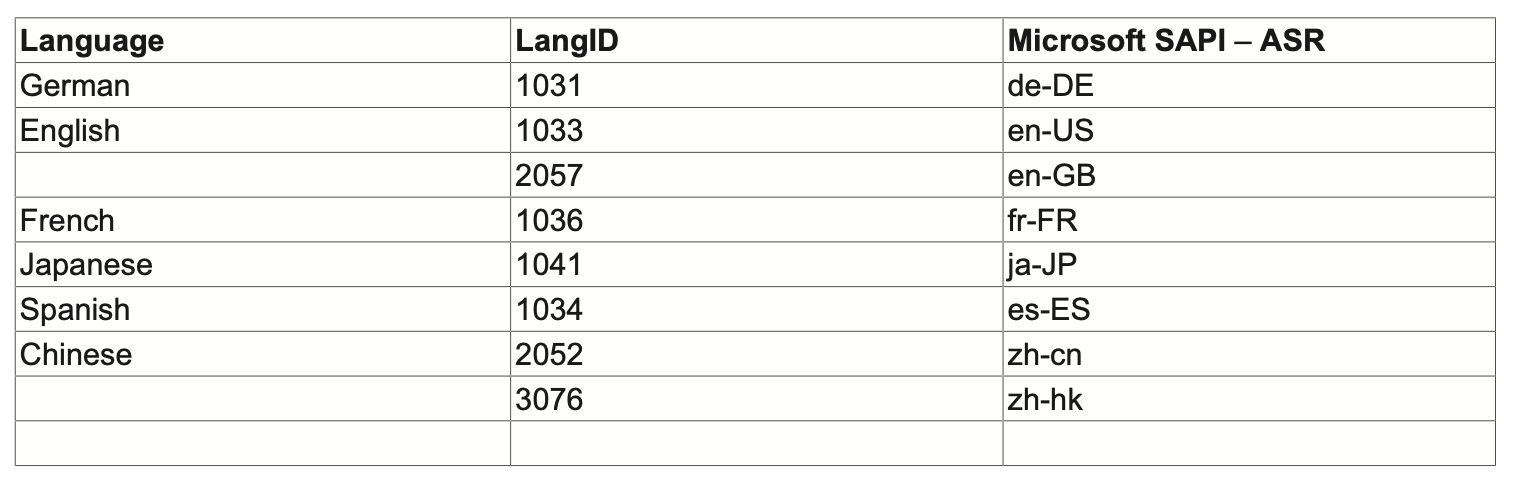

nLanguageId	UINT	Default=0、The default language of the TSS configuration
VAR_OUTPUT
bBusy	BOOL	True=Executing
bError	BOOL	True=Error
nErrorId	ETcsSpeechCommandExitCode	Error information
nLastCommandExitCode	UINT	The last ExitCode of speech output.
nPlaybackPosition	ULINT	The position of current speech output
nPlaybackTotal	ULINT	The length of Speech output(ms)

Example

Insert the TwinCAT Speech Configurator

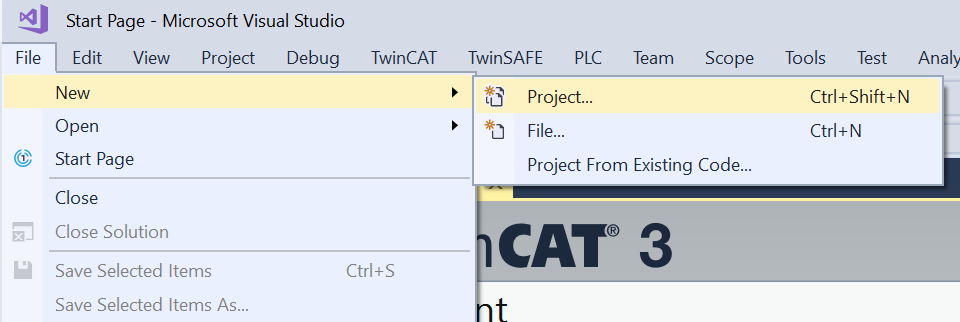

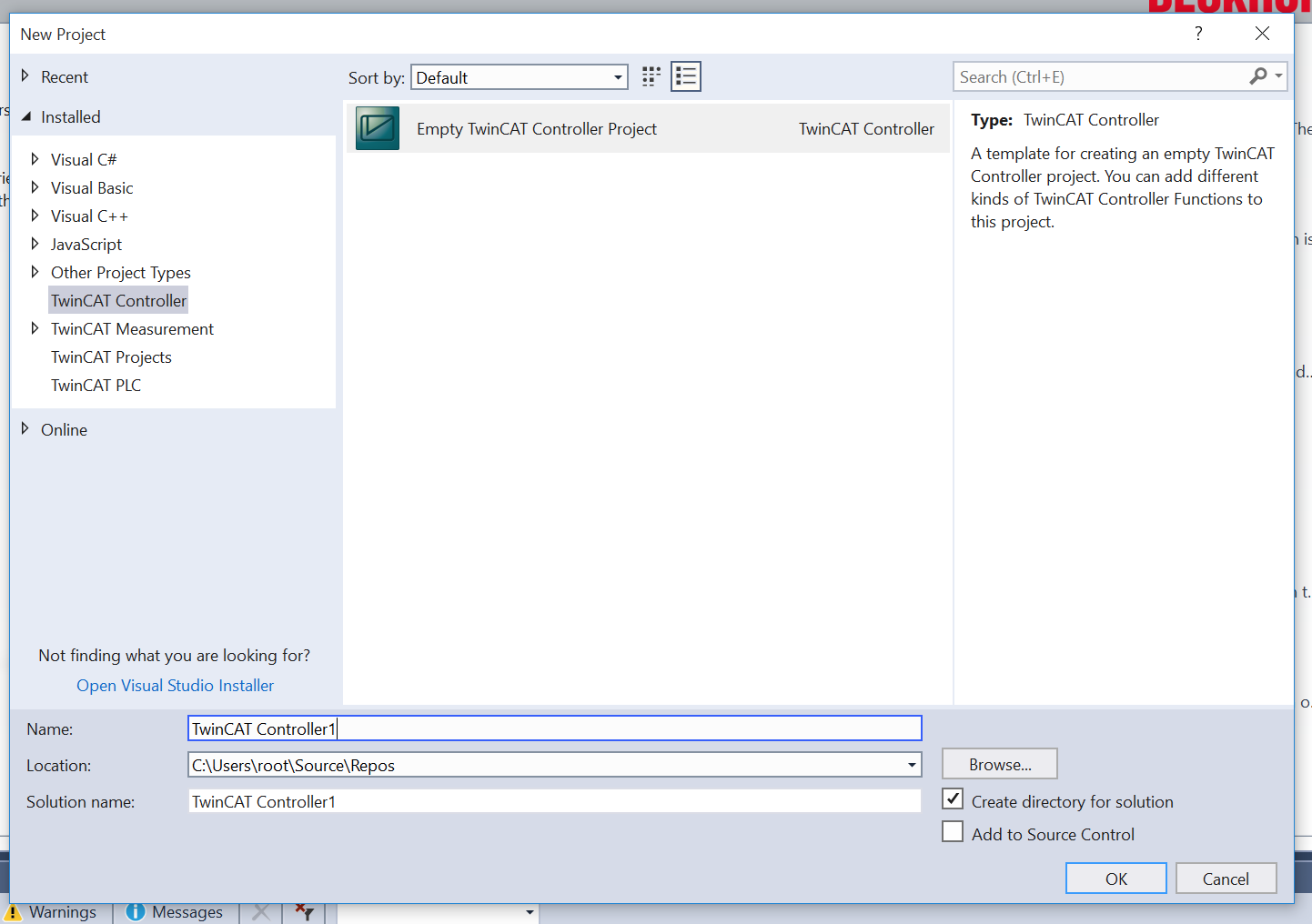

File>New>Project.

Click the TwinCAT Controller>Empty TwinCAT Controller Project to create a new Controller project.

We can see that TwinCAT Controller1 is inserted in our project.

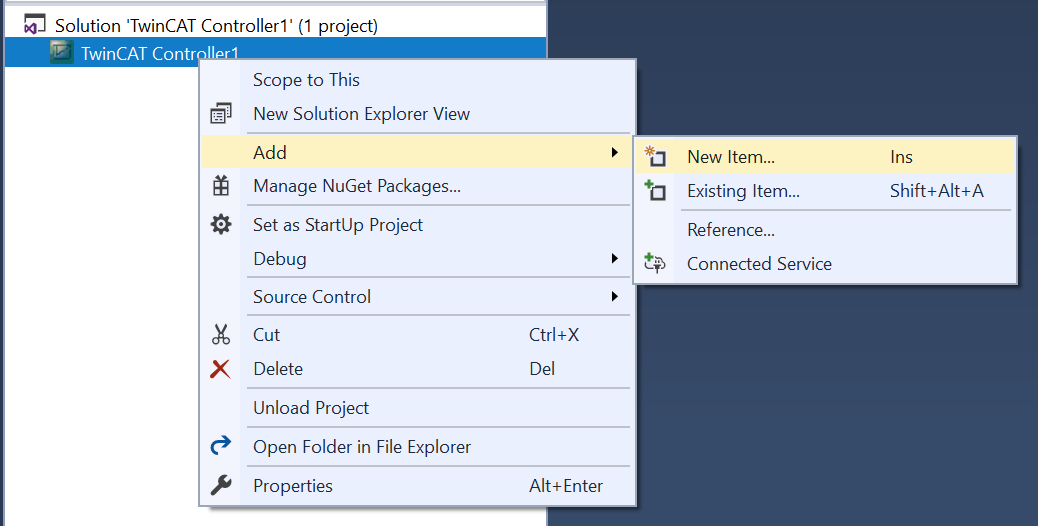

Select the TwinCAT Controller and Right Click >New Item.

Choose TwinCAT Speech Configurator and Add it into your project.

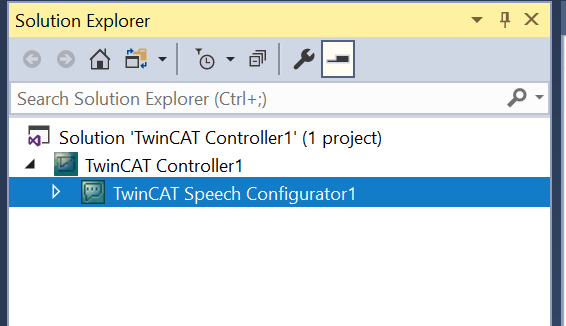

The Speech Configurator is inserted .

ASR

Insert the Configuration

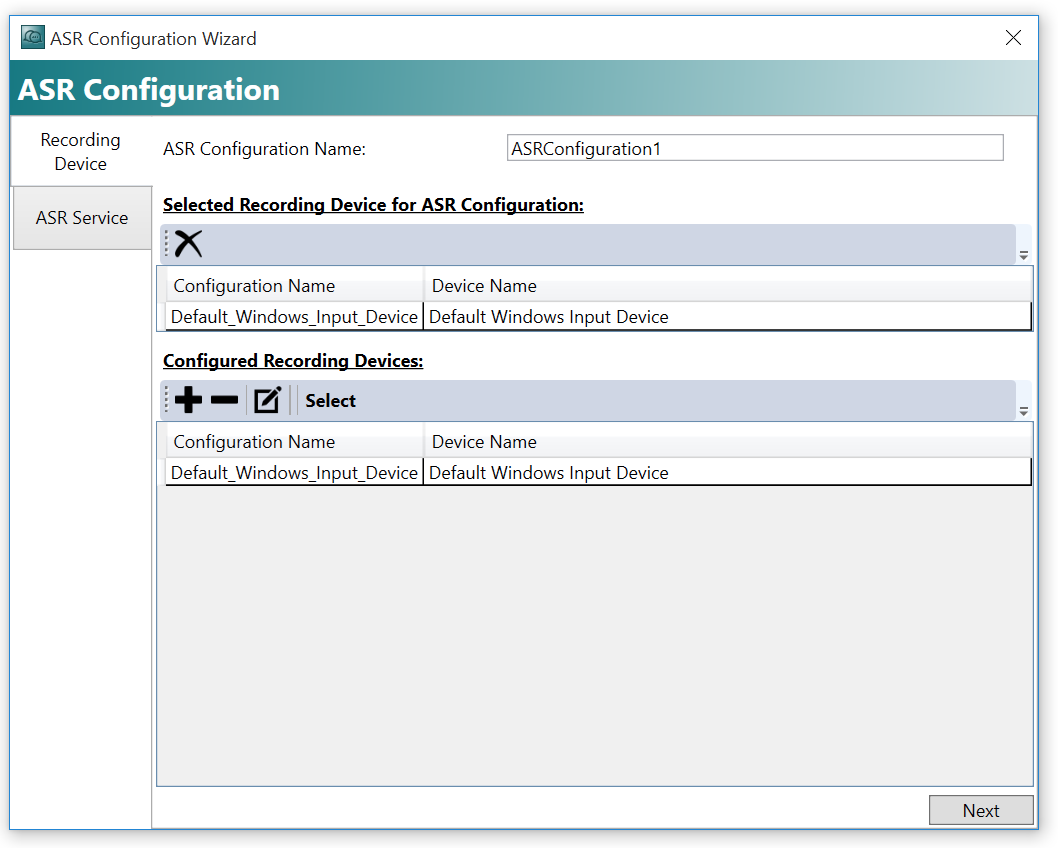

Right Click the TwinCAT Speech Configurator that we inserted before> Start ASK Wizard.

Press the + Button to create a new Configuration.

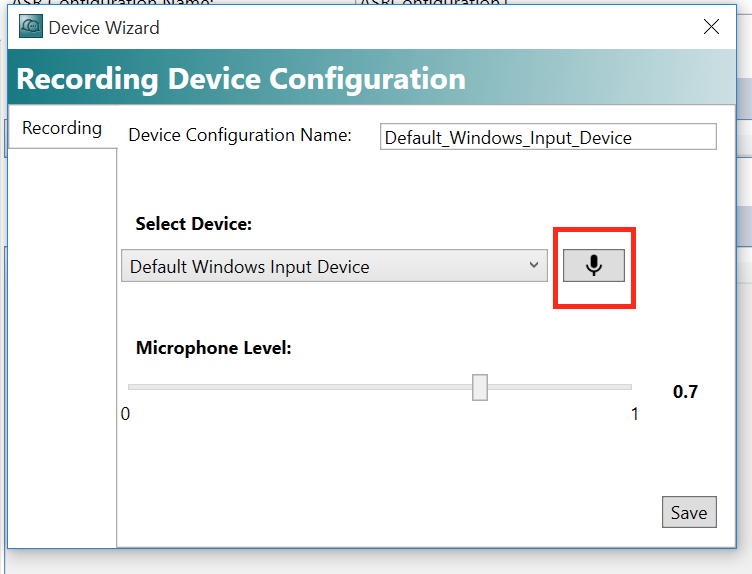

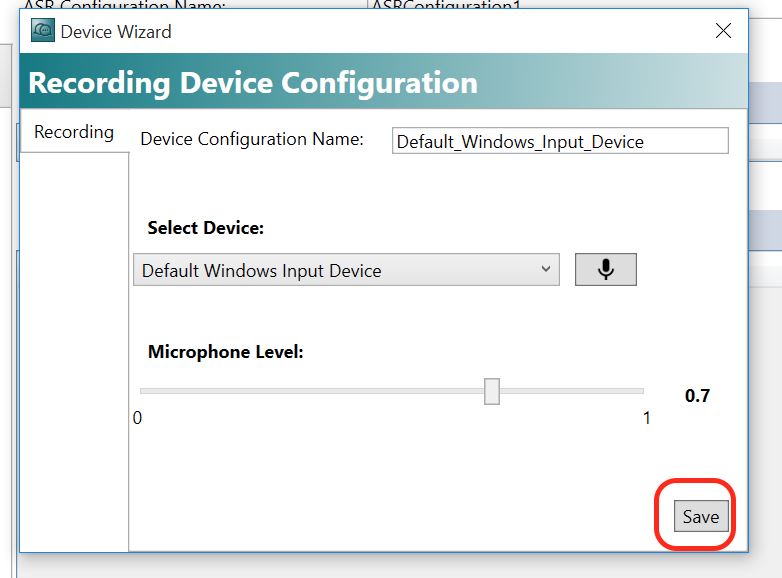

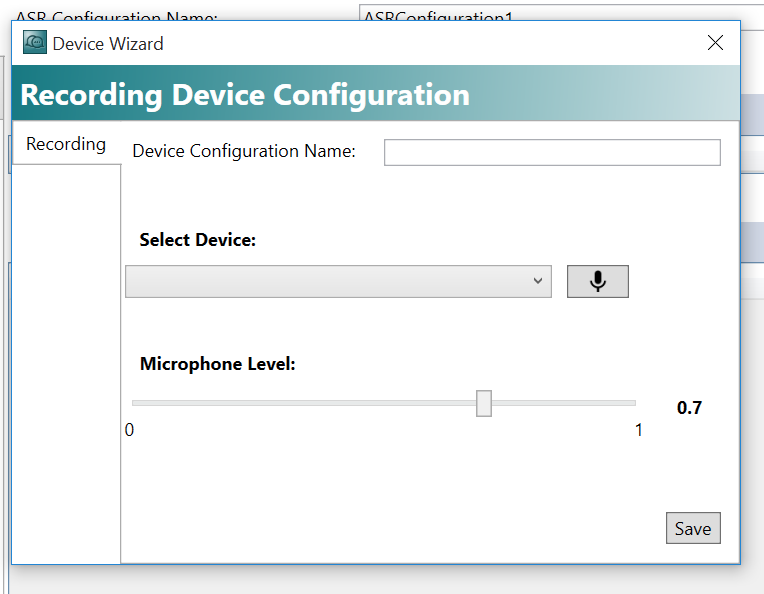

The Device Wizard is shown.

We can test the sound input device here.

Drop the Select Device List to choose what devices that you want to test , and press the microphone button to output it.

Press save if there is no problem.

Insert the Service

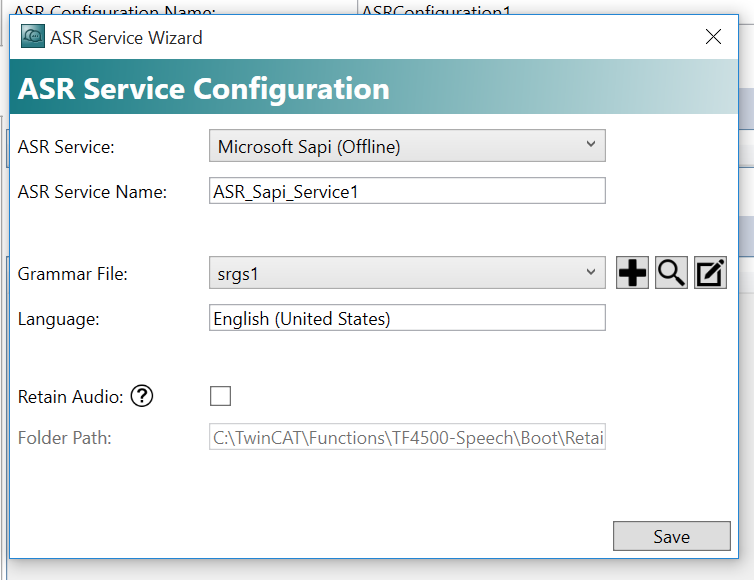

Now we need to configure the ASR Service.

Press the + Button to add a new ASR Service.

Insert the Grammar File

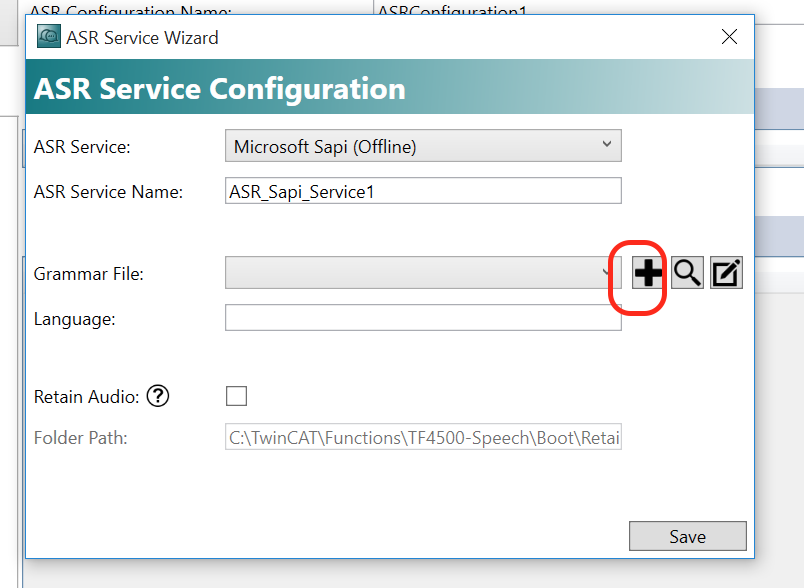

Input your ASR Service Name.

And then press the + button to insert the Grammar File.

Choose “Create new Grammar File”.

Choose English as Default Language.

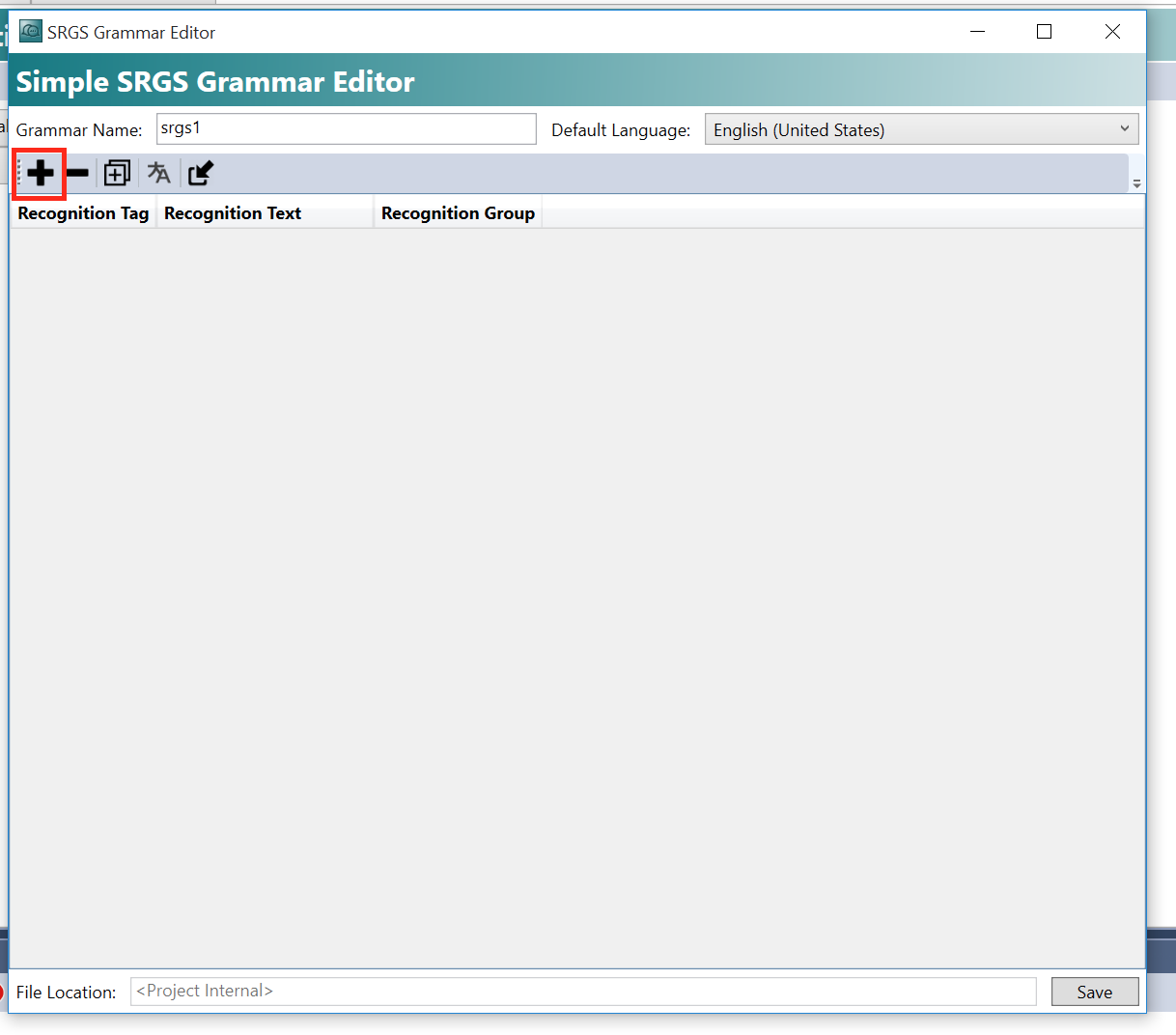

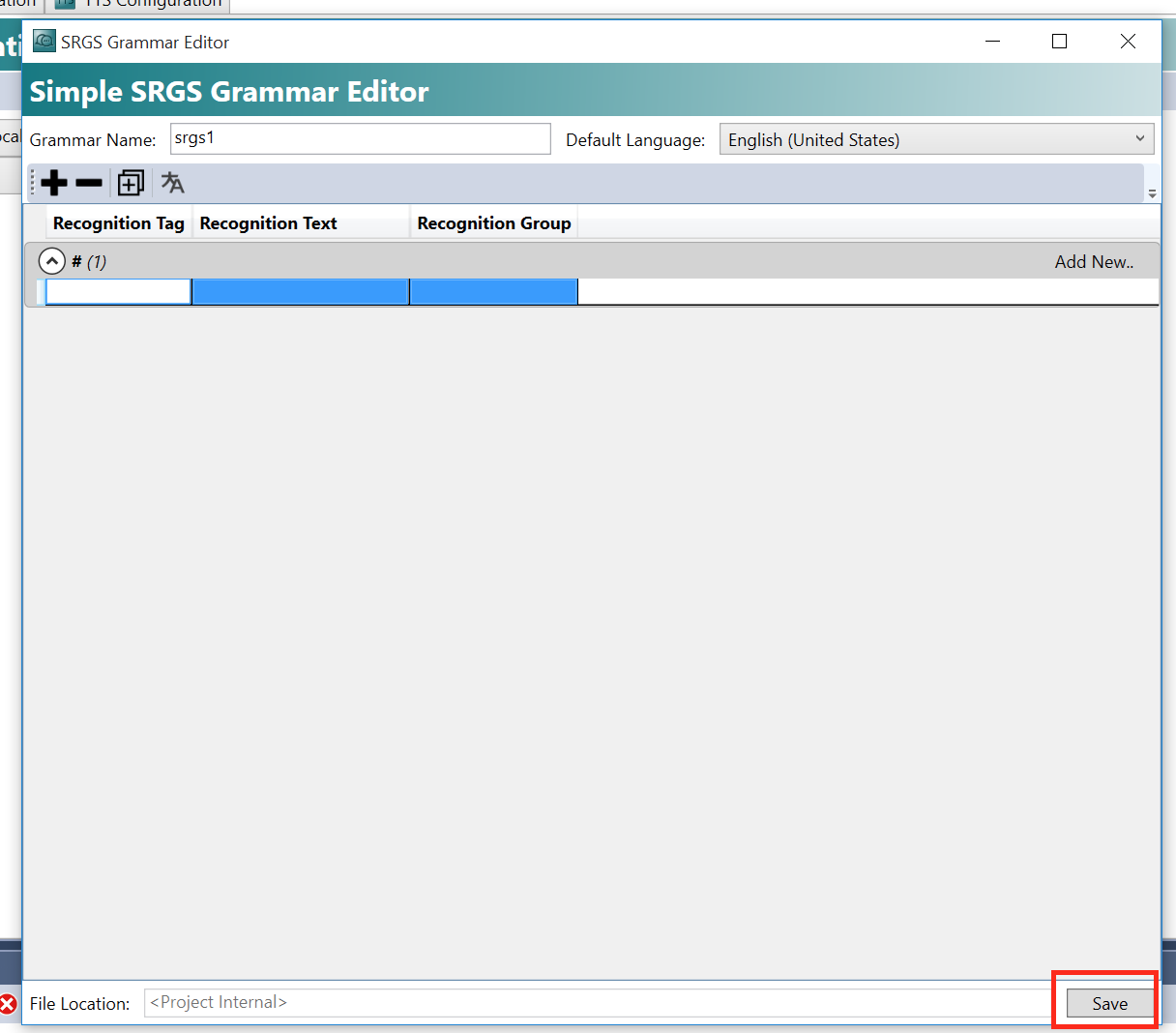

Press the + Button to add the new Grammer.

We can see 3 Items in here.

Recognition Tag
Recognition Text
Recognition Group

For example – if the Recognition Text system detected “Good Morning” from the input, this data will be cataloged as ”Say_Good_Morning” in the Recognition Tag of the group ”OpenCommand”.

*Group setting is not necessary.

Press save to save your configuration.

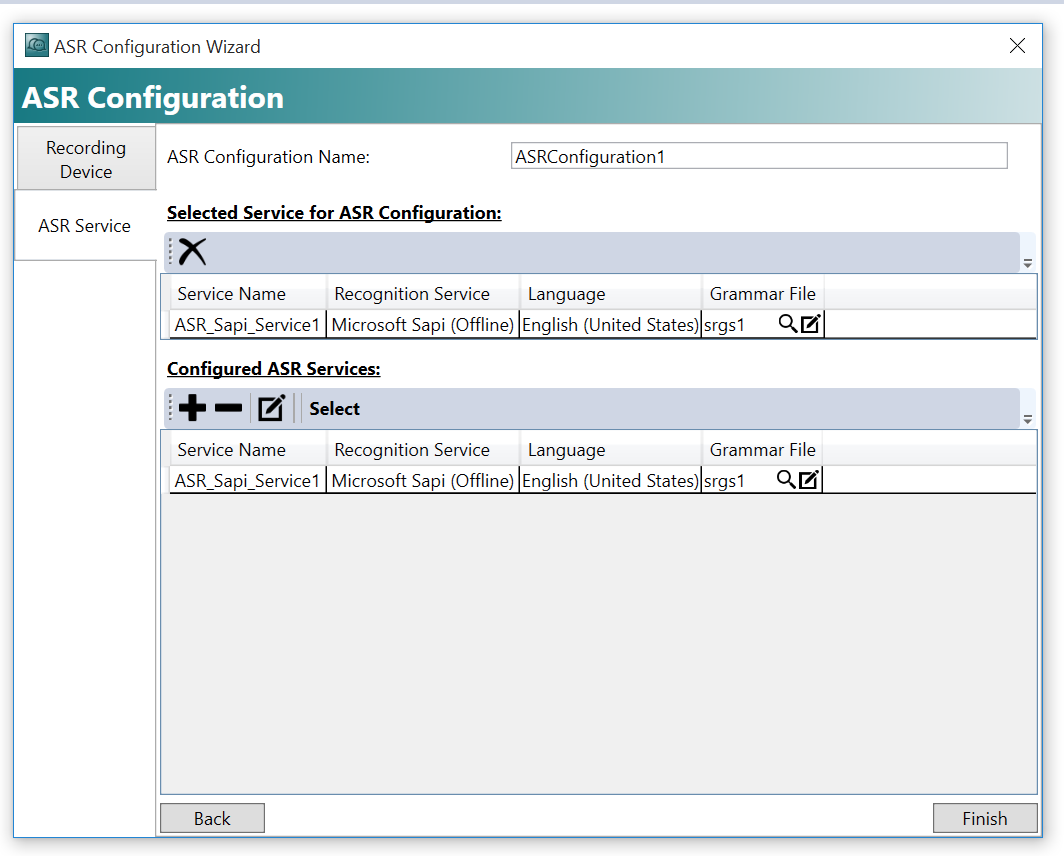

Press the Finished Button to Finish the ASR Configuration.

TSS

Inset the Configuration

Right Click the TSS and Start TTS Wizard.

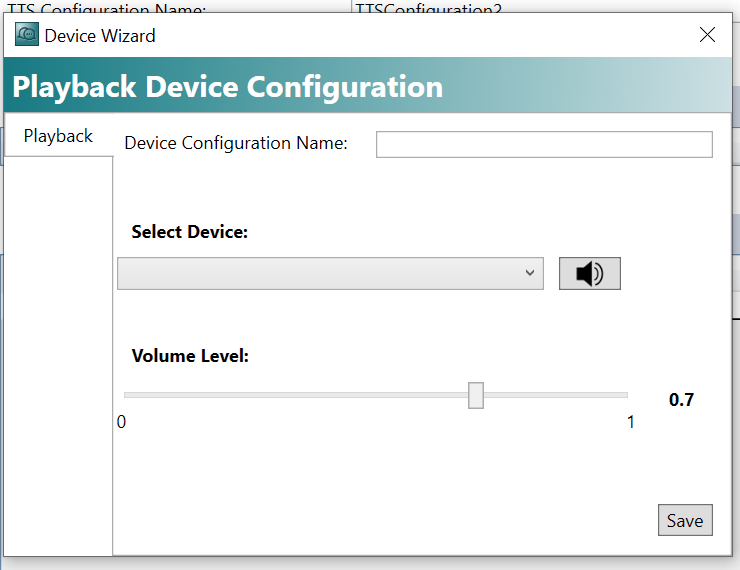

Press the + Button to configure the Speech output device.

The below Popup is Displayed and same as ASR, I will not Explain too much.

Press Next to Finish the Configuration.

Insert the Service

Press the + Button to start the TTS Service Configuration.

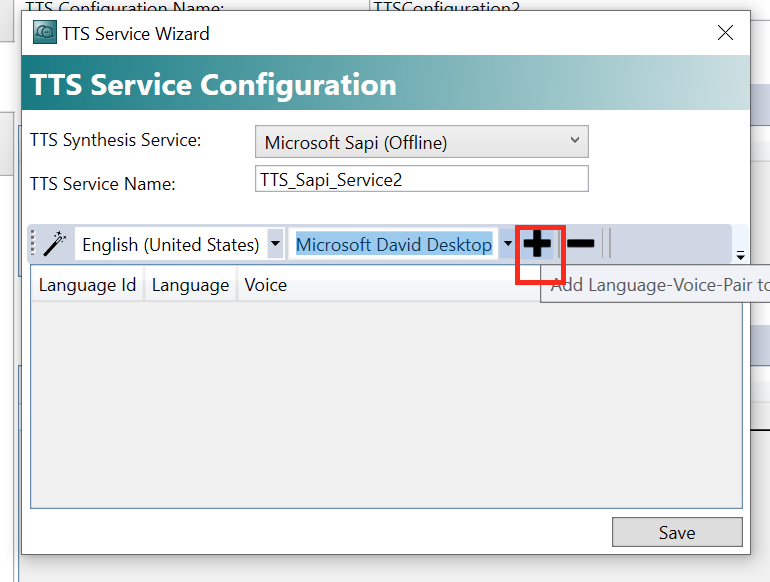

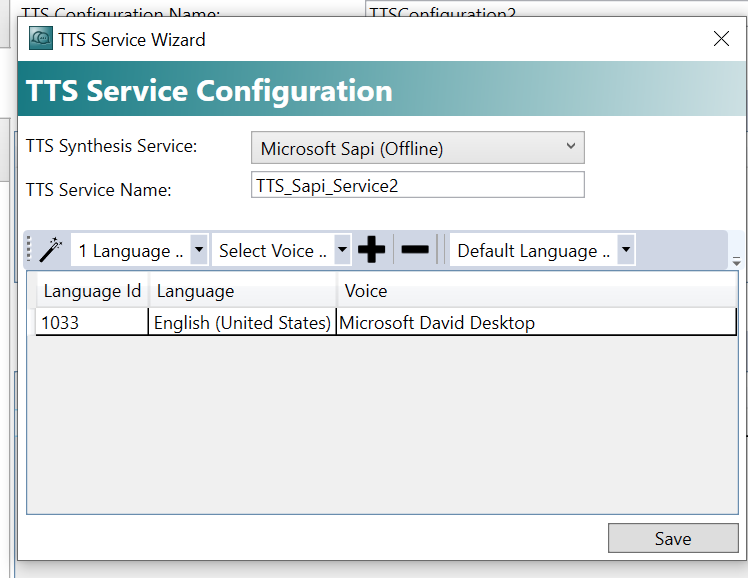

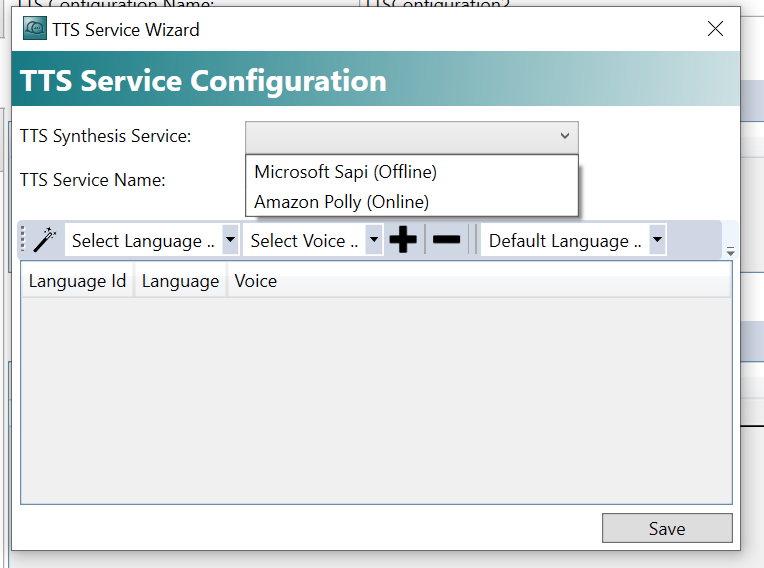

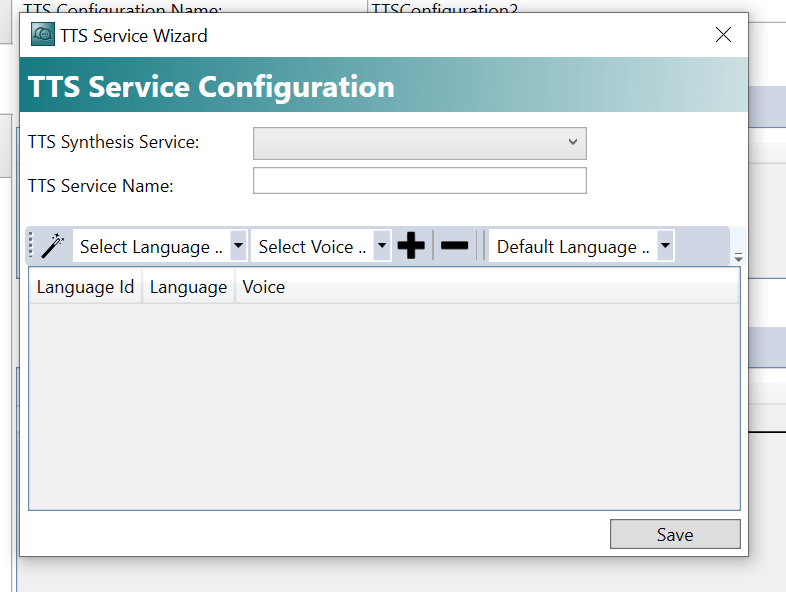

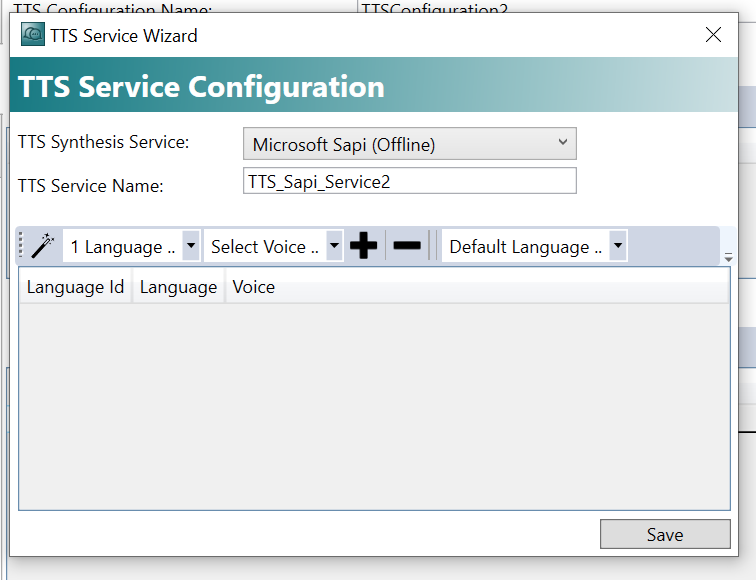

The below screen is displayed.

We can choose to use TTS Synthesis Service or Amazon Polly.

SAPI is configured in this tutorial.

Enter the Service name and Save it.

Choose English in the Language Selection.

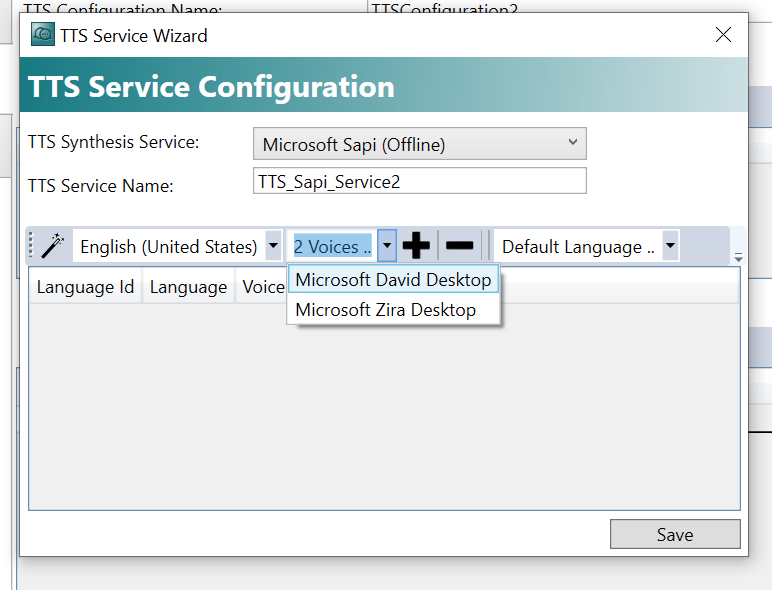

We can choose David or Zira to output the Speech.

Finally we press the + Button to insert it.

Press Save to save your configuration.

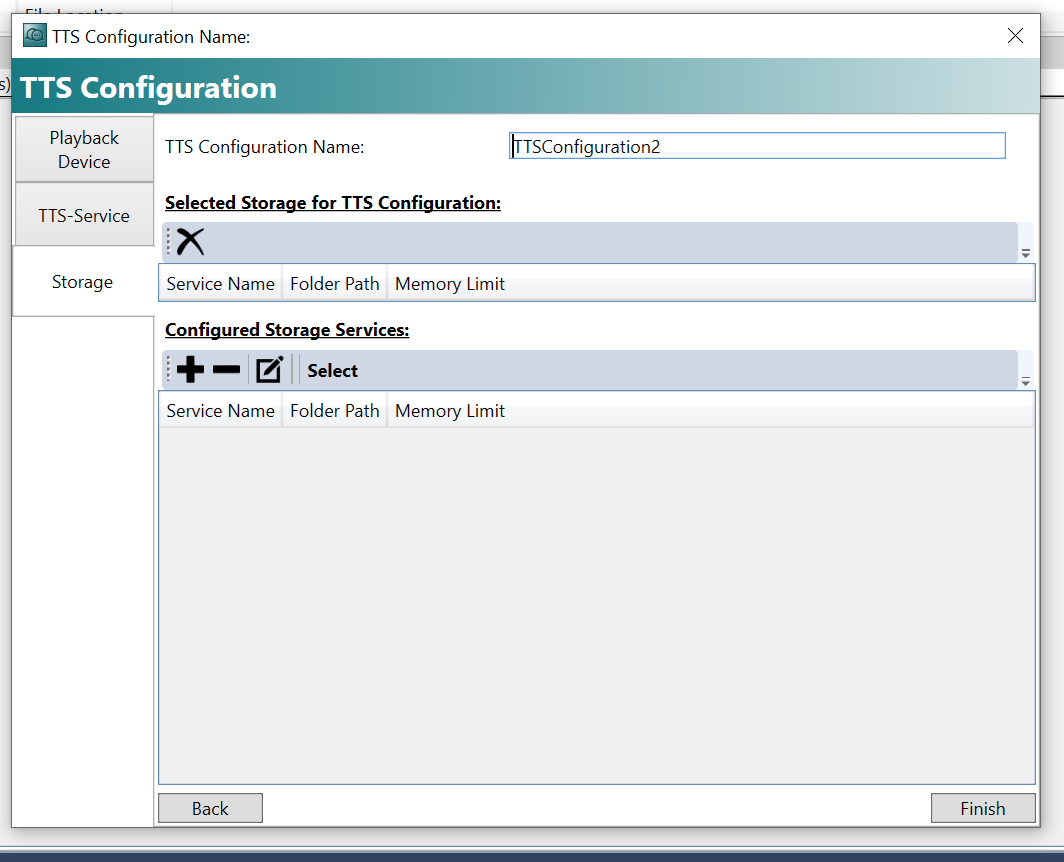

Storage

We will not cover it in this Tutorial and press Finish to save the configuration.

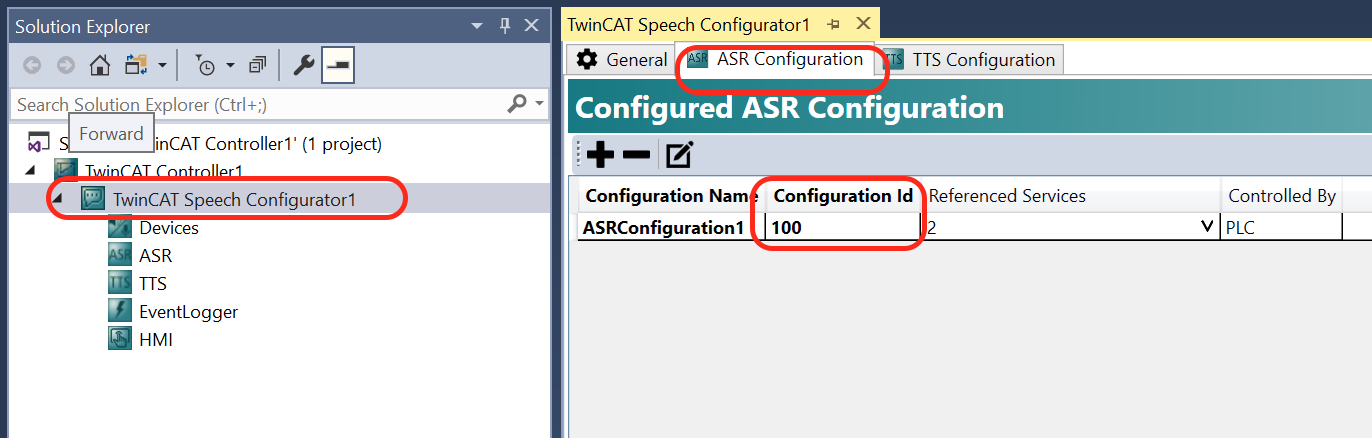

ASR Configuration Id

We will use this Id in the program, Please note it.

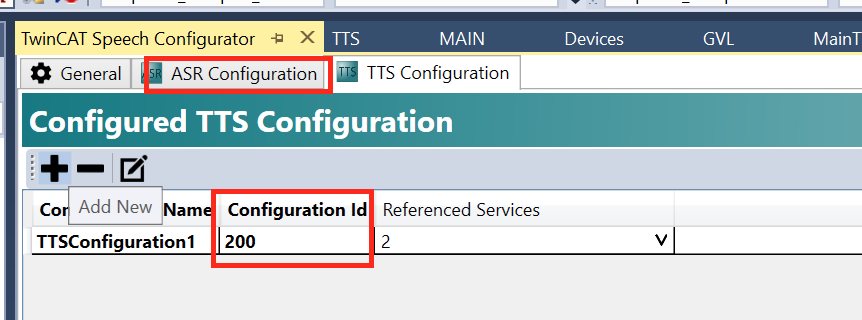

TSS ID

As same as TSSID.

Activate Configuration

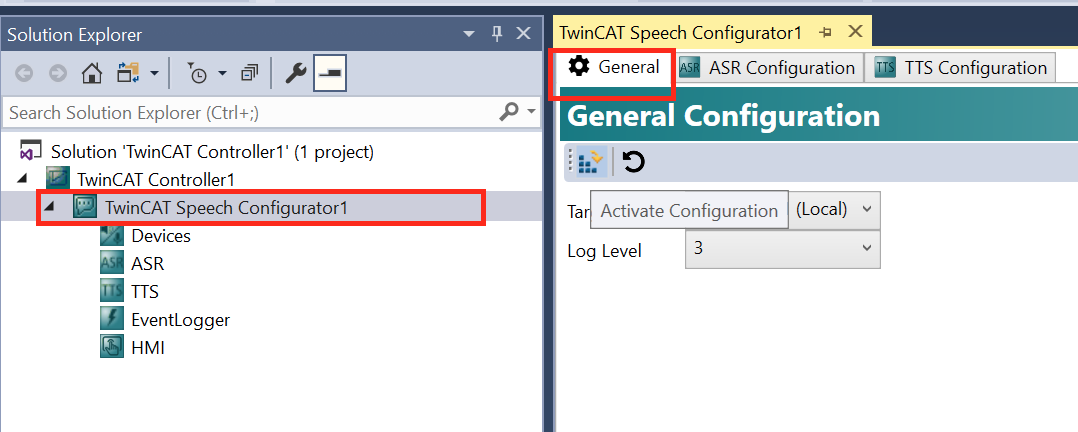

Finally open the General Tab and Activate the Configuration.

。

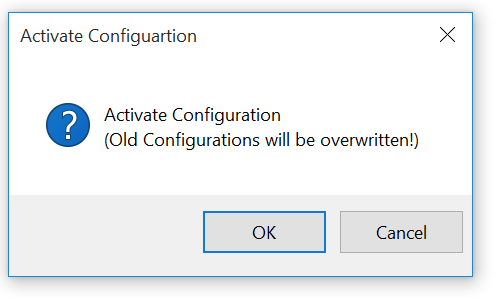

Press OK to confirm the overwrite configuration.

Press OK to Finish the Configuration.

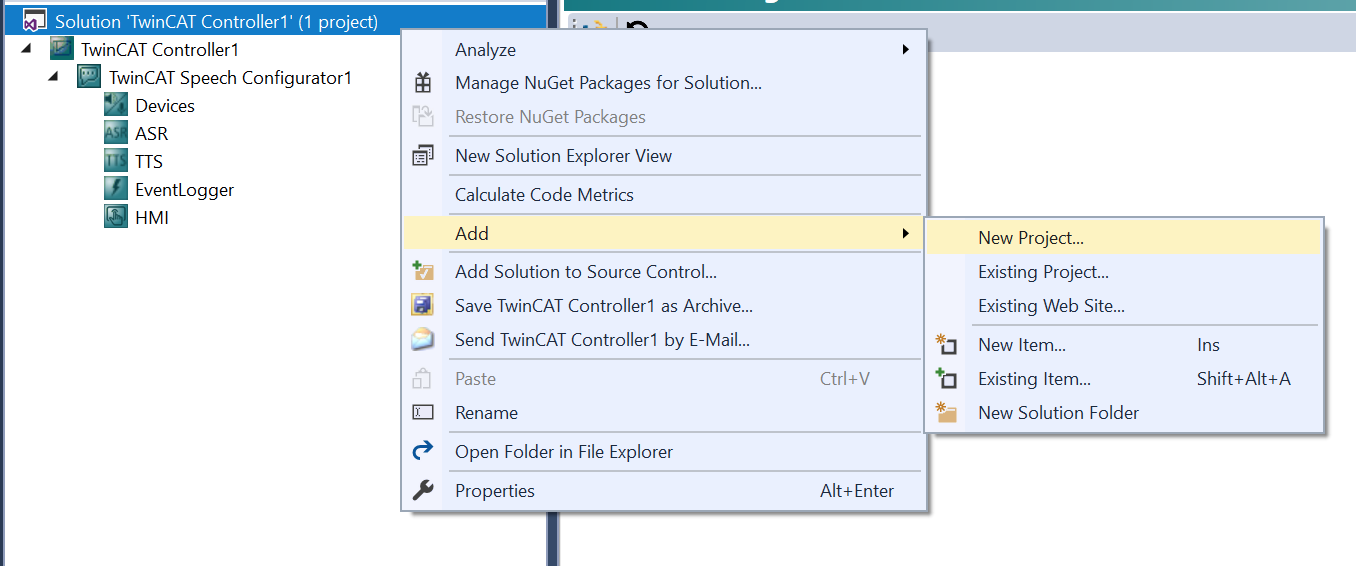

Insert the TwinCAT Project

Insert your TwinCAT Project.

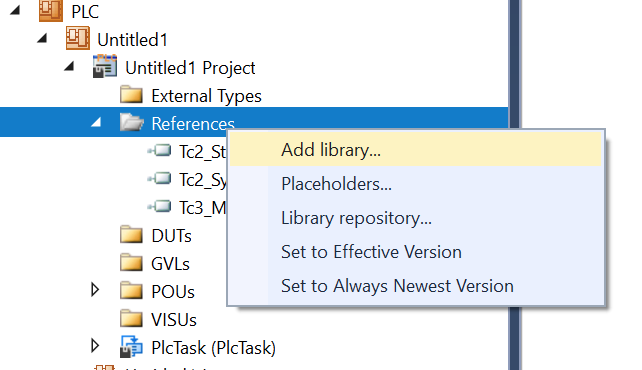

Add library

Error

PROGRAM

This is the program that I modified from the samples.

It will define which speech is detected and operate a different output.

MAIN_ASR

Please be careful of the nConfigIdASR and match it with your applications.

VAR

VAR
// Start speech recognition by setting to true
bListen : BOOL := FALSE;

bRecognition : BOOL;

// ASR Configuration
nConfigIdASR : UINT := 100;
fbASR : FB_SpeechRecognition := (nConfigurationId := nConfigIdASR);

// ASR Variables
nLastRecoId : ULINT := 0;
timer : TON;
END_VAR

Code

We will only output the result while fRecognitionConfidence is higher than 0.7.

// Set bListen to true, to start speech recognition
fbASR(bListen := gvl.bListen, nConfigurationId:= nConfigIdASR);

// If new recognition is available and recognition confidence is high enough (over 70%) set bRecognition to true
IF nLastRecoId <> fbASR.nRecognitionId THEN
nLastRecoId := fbASR.nRecognitionId;
IF fbAsr.fRecognitionConfidence > 0.7 THEN
bRecognition := TRUE;

END_IF
END_IF

// Keep bRecognition true for just a second
IF bRecognition THEN
gvl.bSpeak:=TRUE;
gvl.bListen:=FALSE;
gvl.cmd:=fbASR.sRecognitionTag;
timer(IN := TRUE, PT := T#1S);
IF timer.Q THEN
timer(IN := FALSE);
bRecognition := FALSE;
END_IF

END_IF

MAIN_TTS

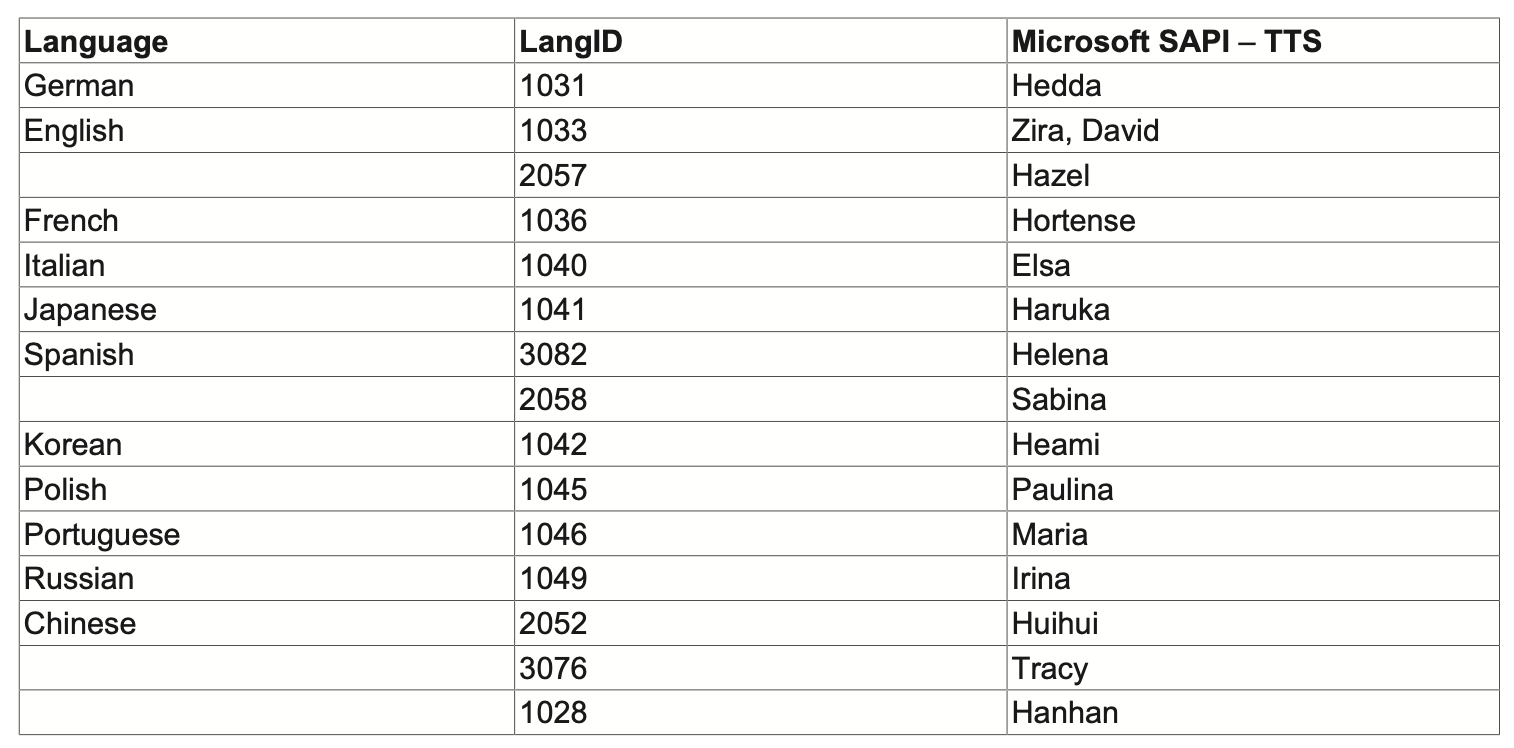

Please be careful with the nLanguageId and match it for your application.

VAR

VAR
// TTS Variables
bSpeak : BOOL := FALSE;
{attribute ‘TcEncoding’:= ‘UTF-8’}
sText2Speech : STRING(4095) := ‘<speak>Hello world!</speak>’;

// TTS Configuration
nConfigIdTTS : UINT := 200;
nLanguageId : UINT := 1033;
fbTTS : FB_TextToSpeech := (nConfigurationId := nConfigIdTTS, nLanguageId := nLanguageId);

END_VAR

Code

depends on the GVL.cmd, different speech is output.

IF gvl.Cmd = ‘Say_Good_Morning’ THEN
sText2Speech:=’<speak>Good morning Sir. I am your TwinCAT system help. What can i Help you?</speak>‘;
ELSIF gvl.Cmd = ‘Motor1_on’ THEN
stext2Speech:=’<speak>OK. I get your order and turn on the motor 1 after 5 seconds.</speak>‘;
END_IF

fbTTS(sUtterance := sText2Speech, bSpeak := gvl.bSpeak, nConfigurationId:= nConfigIdTTS);

IF NOT fbTTS.bBusy THEN
fbTTS(sUtterance := sText2Speech,bSpeak := FALSE, nConfigurationId:= nConfigIdTTS);
bSpeak := FALSE;
gvl.bSpeak:=FALSE;

END_IF
