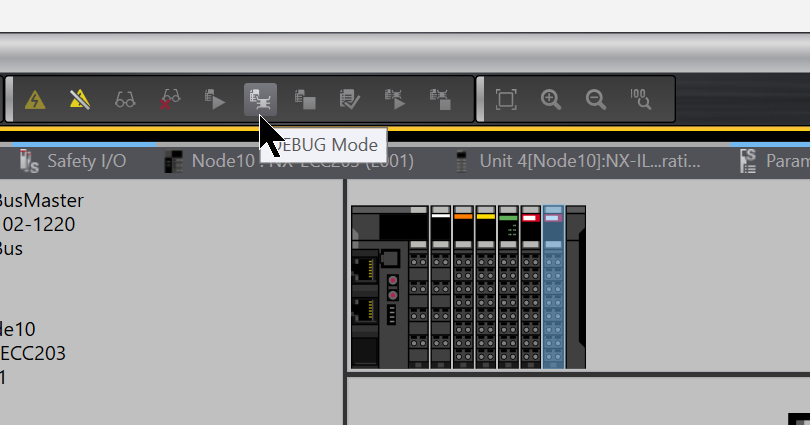

Switch the SL5700 into Debug Mode to temporarily force safety variables to be switched on or off Click on Debug Mode in Sysmac Studio.

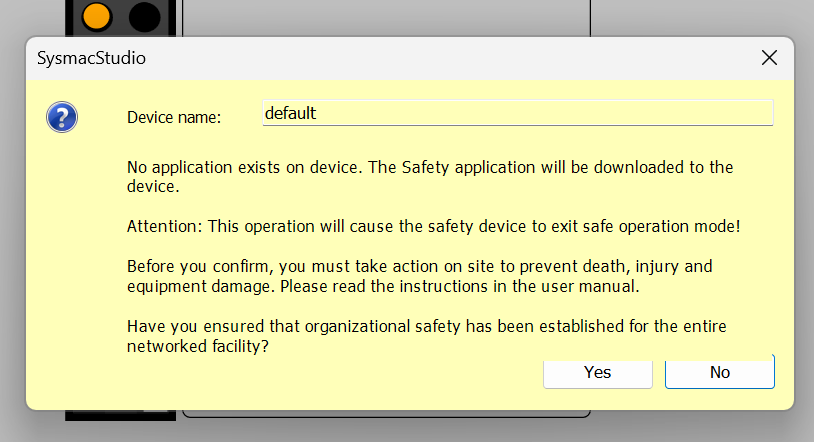

OK to proceed.

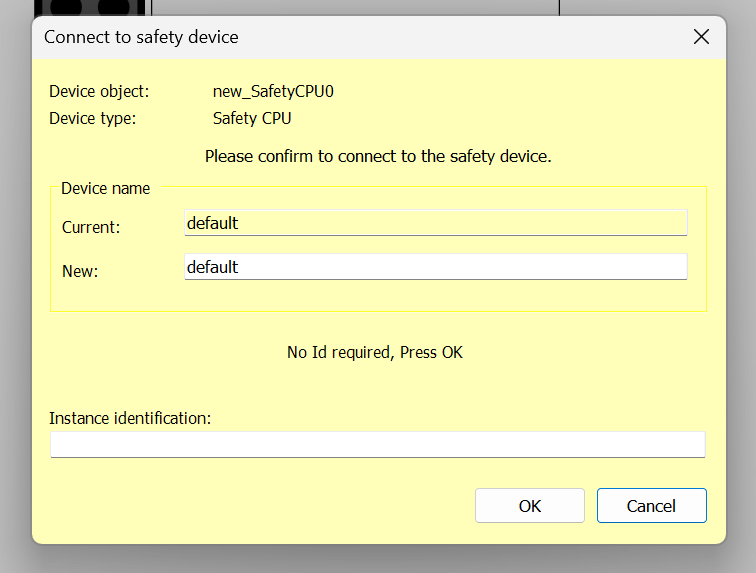

Proceed with Yes.

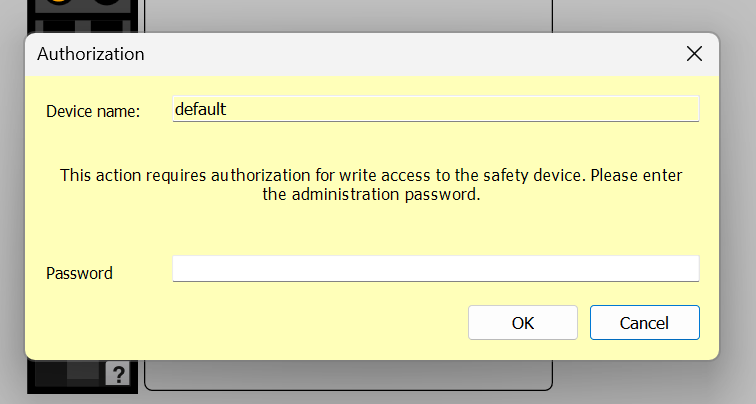

Enter the Password of the Safety CPU and proceed with OK.

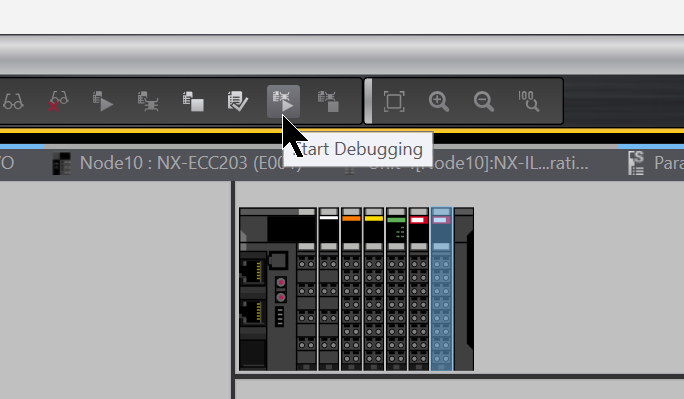

Finally, click on the “Start Debugging” button to start the Debug Mode.
