Beckhoff#Using TwinCAT3 TF6271 as a Profinet RT Controller

Hallo and in this tutorial I will explain how to use TwinCAT TF6271 as a Profinet RT Controller and Using Codesys runtime as a Profinet Device.

Let’s Do it!

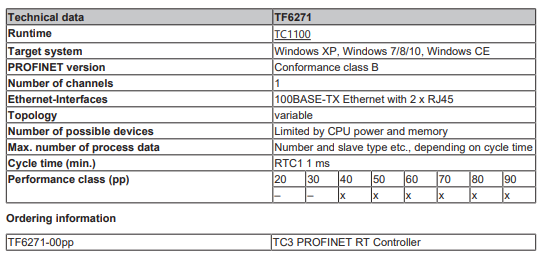

System Requirment

Configuration

Insert Controller

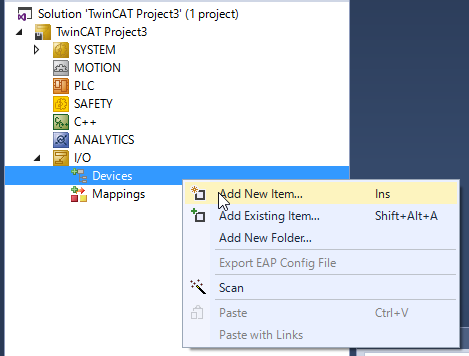

Go to I/O and right click Devices>Add New Item.

Choose Profinet > Profinet I/O Controller(RT) and press OK.

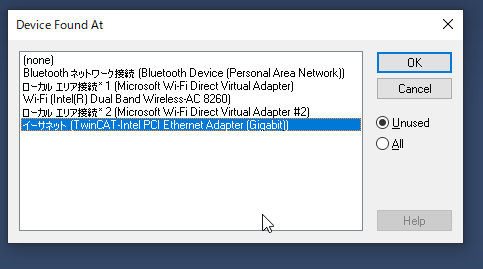

And then you need to choose the Network Interface Card.

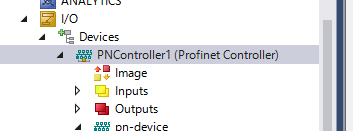

Profinet Controller is inserted into your project.

Insert Device

Now is the time to configure the Profinet Devices inside your Profinet Network.

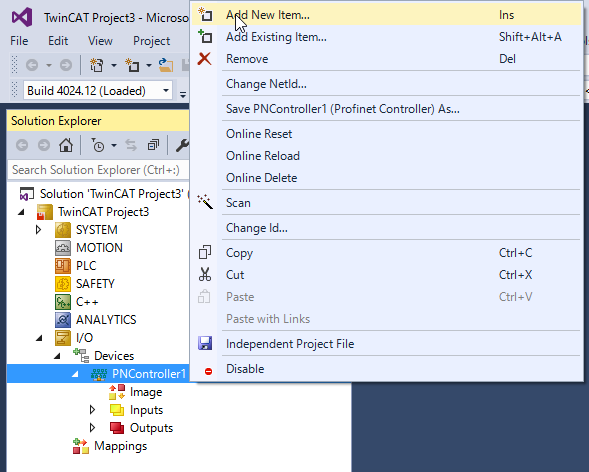

PNController>Add New Item.

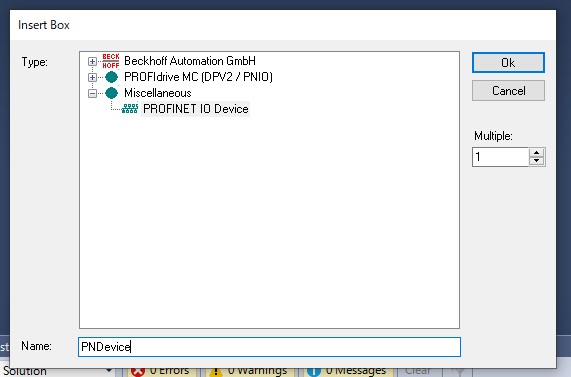

Choose Miscellaneous>Profinet IO Device.

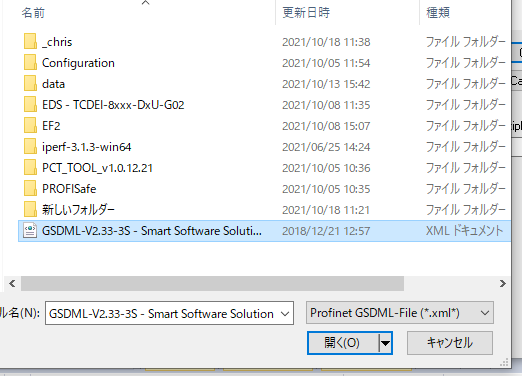

This time I will use Codesys as the Profinet Devices, choose the GSDML file and press OK.

Profinet Device is inserted.Now you need to configure how many bytes that will be exchanged with this device.

Insert Slot

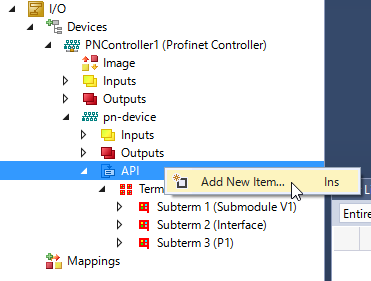

PN-Device>API>Add New Item.

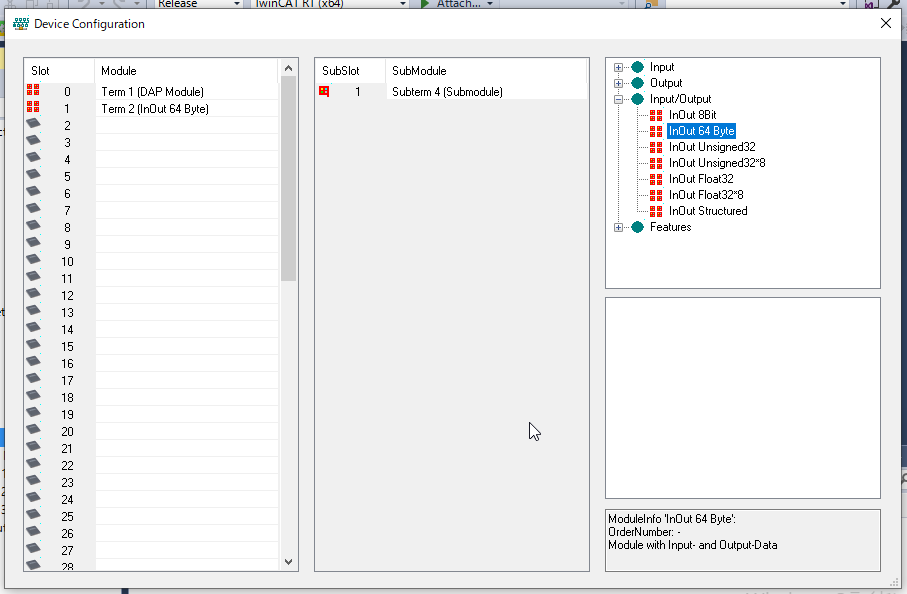

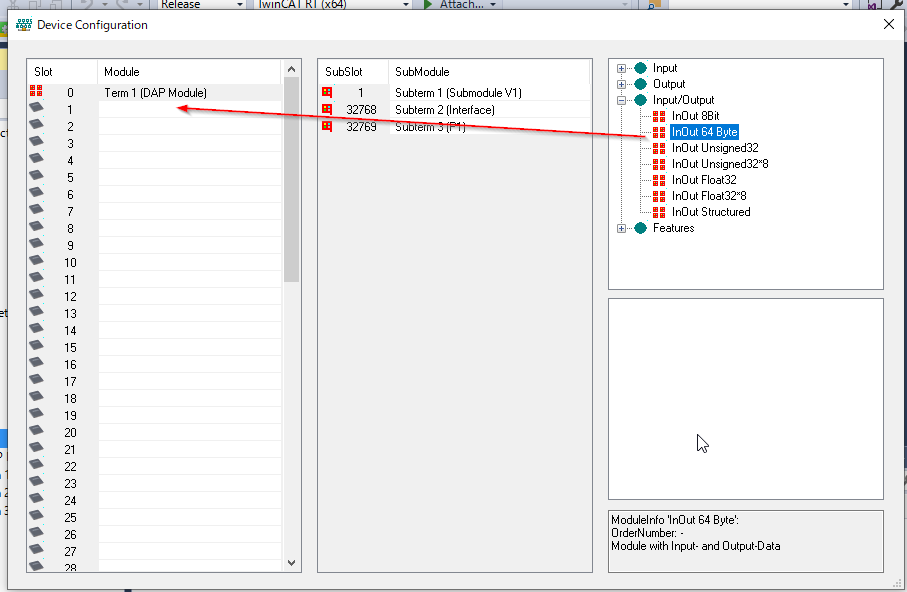

The below popup is shown.Choose InOut64bytes and drop into slot1.

FInished.

Term 2 with inout 64 bytes is configured.

Device Name・IP Setup

Device Name and IP Address are necessary in the Profinet Network. Click the pn-device.

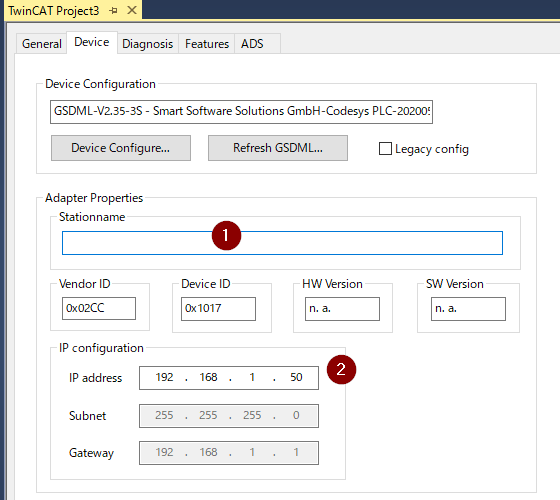

Configure your station name and IP.

Task Cycle Time Setting

The PNIO-Controller Cycle Time must be a power of 2! is shown after compiled, please modify your task cycle time.を修正する必要があります。

Click the PNController1.

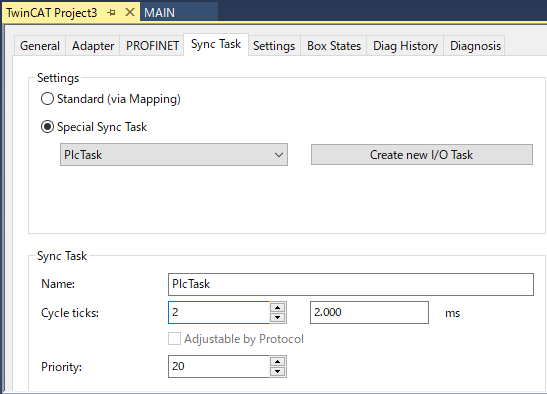

Open the Sync task tab and enter the Cycle ticks with power of 2.

Insert PLC 

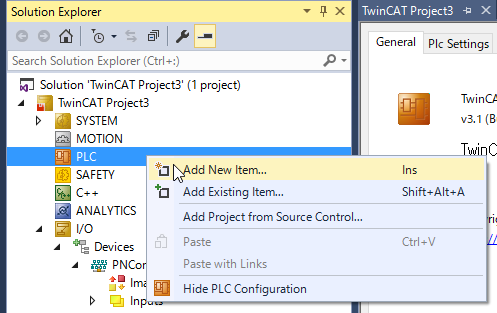

PLC > Add New Items to insert a PLC.

POUs>MAIN.

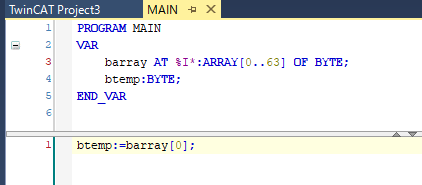

define the variable.

Activate Configuration.

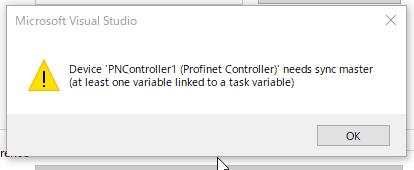

If the below popup is shown, please Link the variable to your Profinet IO.

Links to Variable

Go to Pn-Device>API>Subterm>Inputs.

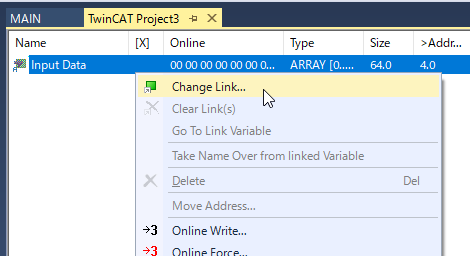

Right Click the Input Data and Change Link.

Choose the variables that you defined before.


Codesys-Device側設定

Please reference the previous post to configure a Codesys Profinet runtime.

Codesys#Using PI4 as a Profinet Device

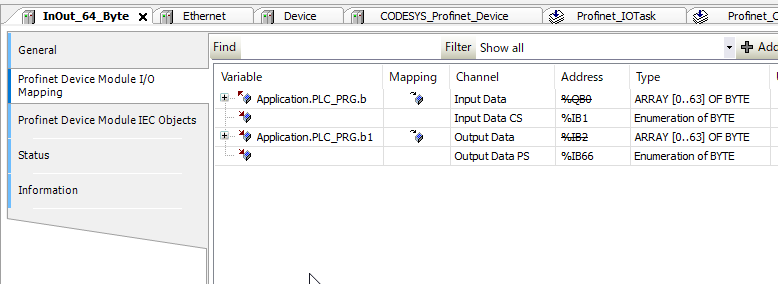

And do not forget the IO Mapping.

While using WireShark

After TwinCAT is started up, WireShark is not available to use. Here is an option to allow WireShark.

Click the PNController.

Go to the Adapter, and Check the Promiscuous Mode(Use with WireShark Only).
