In this tutorial I will explain the variable that is defined inside VAR_STAT.

VAR_STAT?

VAR_STAT is an object that extends from IEC61131-3 , and the Variables that are defined inside, are shared the same memory.

AS we know, Function blocks have their own instance and these instances ‘ memory are separate.But – the Variables that are defined inside VAR_STAT, are sharing the same variables from all multiple instances.

Let’s see some examples.

Example

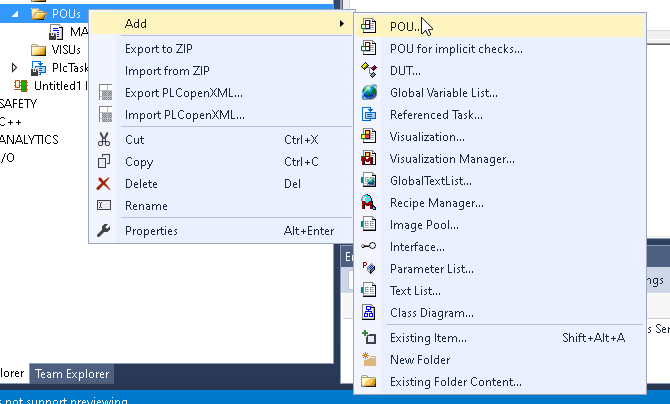

Let’s add a Function Block.

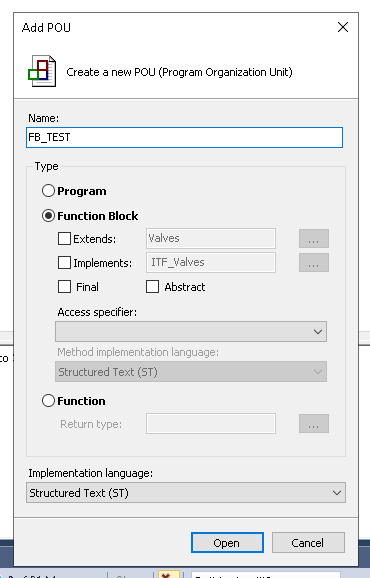

We named it as FB_TEST.

Add the VAR_STAT statement, and define a variable named _iCounter.

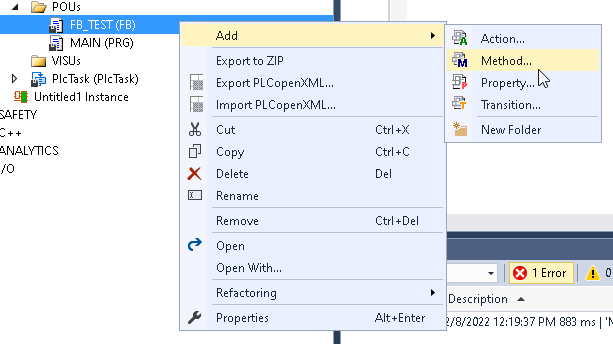

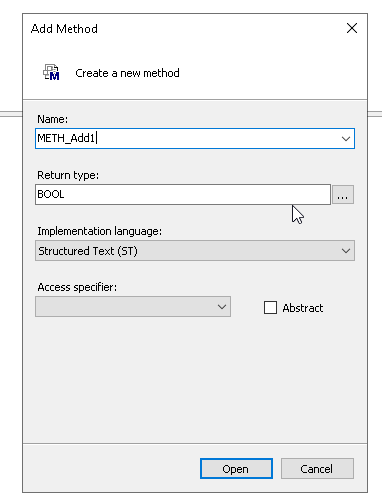

And then insert a method in the Function Block.

We can implement some sample code to test these VAR_STAT features.

This method will +1 while called.

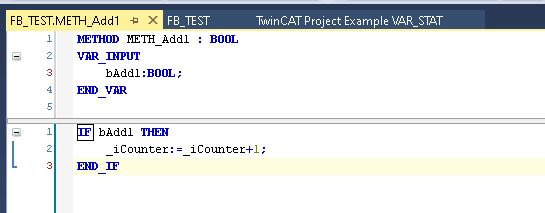

And inside the method , it receives one input and the _iCounter is increased 1 while the value of bAdd1 is True.

Now we defined 6 instances of FB_TEST, but only the first one will execute the Method with +1.

After we downloaded the program, the actual value of _iCounter is 0.

Can you see the icon of _iCounter has a little “s” letter.?

It means _iCounter is a VAR_STAT variable.

While we call the Meth_add() with Ture, the value of _iCounter inside all instance are changed to 1.It means that all multiple instance are sharing the same variable.

But I still do not know how to use it in real-applications..
