Beckhoff#Using TwinCAT3 TF6760 HTTPS/REST to send the Get Request

In this tutorial I will show you how to use beckhoff twincat TF6760 to send a http request to the server and change the json object to the plc variable.

Hope you like this.

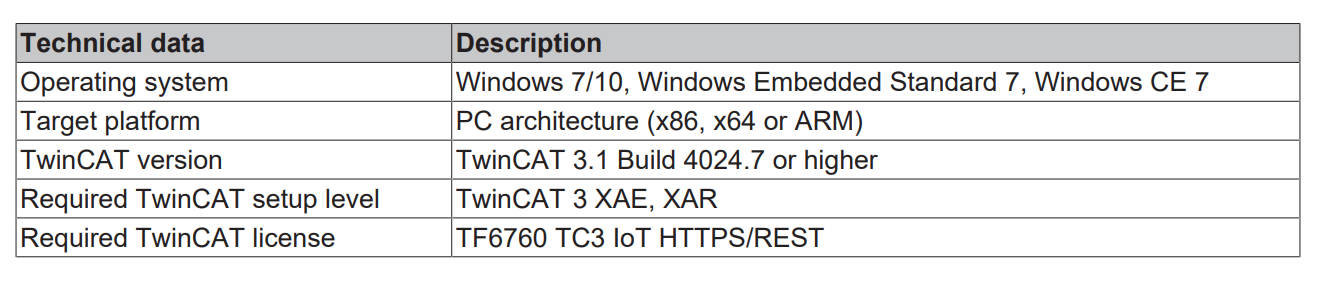

System Requirement

installation

There is no additional installation for this function.

Driver: TcIotDrivers.sys(included in TwinCAT3 XAE・XAR)

PLC library: Tc3_IotBase(included in TwinCAT3 XAE)

TF6760 Iot HTTPS/REST

By using TF6760, we can implement the http command (put/get/etc..) and exchange the data between server and client ( twincat) with the Tc3_IotBase library.

HTTP?

Http is a standard protocol to implement the communication between client and server.

The most common case is your web browser.

The request is sent to google.jp if you type in the web address inside the browser.

And this time we will use the REST-Web services.

Please be careful that the commands of each http command are separated.

It means that the server will determine the connection after the data is sent to the client side.

(But there is some options to keep the connection alive)

Methods

Please refer to your server API documentation – because not all commands are supported on the server side.

Status Code

Header and body are replied from the server separated. It is very important to check the status code that returns from the server.

( Did you remember some error codes like 404/501?)

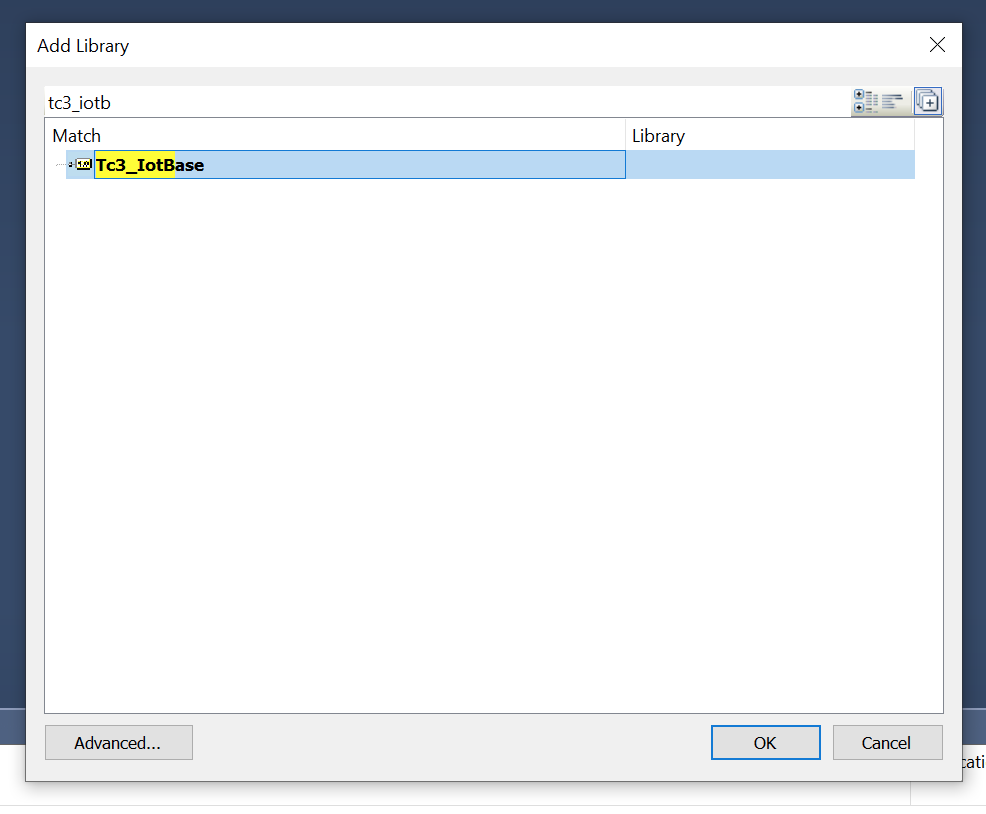

insert the library

Tc3_IotBase

Tc3_JsonXml

Function Block

I will only explain the methods and function blocks that are used in this tutorial.

And there is a very powerful tool in chrome that will help you to find out the parameters/reply from the server.

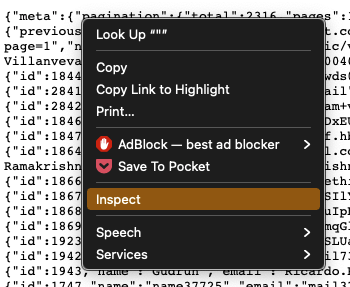

Please open your tools and right click “Inspect”.

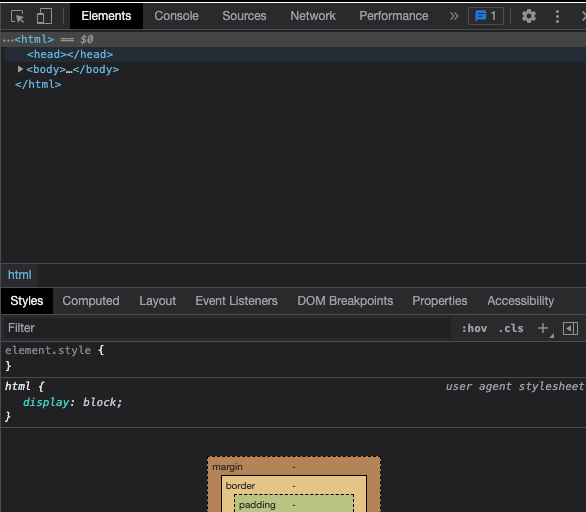

This below screen is shown.

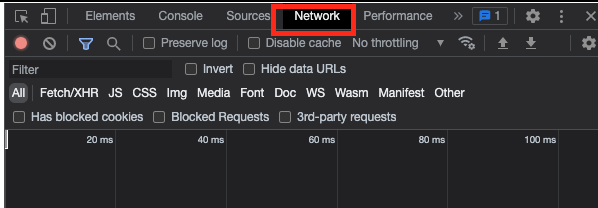

Click the network tab.

The request that was sent from the client (chrome ) to the server is shown and you can check all inside.

FB_IotHttpClient

This function block can implement a connection to the http server.you need to call the executive () method cycling and use another FB_IotHttpRequest function block to send the request to the server.

VAR_INPUT
sHostNameSTRINGDefault=127.0.0.1, server IP
nHostPortUINTDefault=80 , the using port.
bKeepAliveBOOLDefault=True, the connection to server will check until client side cut the connection *Not all server had this function
tConnectionTimeoutTIMETimeout
stTLSST_IotSocketTlsThe configuration that if TLS is used.
VAR_OUTPUT
bErrorSTRINGTrue=error
hrErrorCodeHRESULTError code 
bConfiguredBOOLTrue=Block configuration is finished
bConnected        BOOLTrue=connection is established

Method

DisconnectServerのConnectionを切断する
ExecuteBackground通信で使われてるメソッドです。そのメソッドは毎周期で呼び出す必要があります。

FB_IotHttpRequest

This function block is used to send the request to sever , and while the signal of FB_IotHttpRequest.bBusy is changed from true to false – it means response is received from the server, we can encode and get the field inside the header field with json format.

VAR_INPUT
sContentType    STRINGRequest Contect Type Setting
eCompressionModeE_IotHttpCompressionMode                        compression Mode
VAR_OUTPUT
bErrorBOOLTrue=Error
bBusy           BOOLTrue=FB is running
eErrorId        ETcIotHttpRequestErrorError ID
nStatusCode             UINTStatus Codes from Server
nContentSize    UDINTThe size of HTTP Server response

The sContentType can be checked by the Inspect tools in chrome.

The eCompressionMode can be checked by the Inspect tools in chrome also.


Method  

GetContent

A method to get the content from HTTP Response.Please execute this method after the FB_IotHttpRequest.bBusy signal is changed from True to False.

frp
ntSizeUDINTThe size of Read Data size
bSetNullTerminationBOOL
Return
GetContentBOOLTrue=Method is called without error

GetHeaderField

A method to get the http response header.Please execute this method after the FB_IotHttpRequest.bBusy signal is changed from True to False.

sFieldSTRINGThe Header Field that you want to take
pValuePVOIDReadData memory offset
nValueSizeUDINTReadData memory size
Return
GetHeaderFieldBOOLTrue=Method is called without error

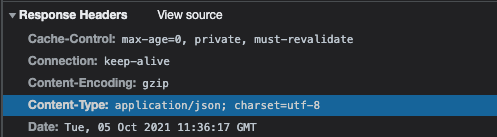

We can also check the header by inspection tools of chrome.

GetJsonDomContent

A method to change the response to a json object.Please execute this method after the FB_IotHttpRequest.bBusy signal is changed from True to False.

fbJsonREFERENCE TO FB_JsonDomParser
Return
GetJsonDomContentSJsonValueJSON Root Node

SendRequest

A method to send the request to the http server.

sUri        STRINGHTTP Request
fbClientREFERENCE TO FB_IotHttpClientFB_IotHttpClient FB Instance
eRequestTypeETcIotHttpRequestTypeHttp Command
pContentPVOID
nContentSizeUDINT
fbHeaderREFERENCE TO FB_IotHttpHeaderFieldMap
Return
SendRequestBOOLTrue=Methodi is called without error

FB_JsonDomParser

We can use this function block to change the json object to another object.

Method

GetJson

Get the length of the Json object.

If the length of the string is more than 255, null is returned .

vSJsonValueJson Obejct
Return
GetJsonSTRING(255)String that changed from Json

FindMember

Search and return a specific property inside the json object.

0 is returned if that property is not found.

vSJsonValueJson Obejct
memberSTRINGProperty
Return
FindMemberSJsonValueThe member inside that json object

ParseDocument 

A method to change from string to json object.

sJsonSTRINGThe string that would like to change
Return
ParseDocumentSJsonValueJson Object

MemberBegin 

Get the first property from the json object.

This method is used with MethodEnd() and NextMember() to implement the looping.

SJsonValueProprety that would like to take
Return
MemberBeginSJsonIteratorThe first property inside a json object.

MemberEnd 

Get the last property inside a json object.

This method is used with MemberBegin() and NextMemver() to loop all the property inside the json object.

vSJsonValueProprety that would like to take
Return
MemberEndSJsonIteratorThe last property inside a json object

NextMember

Get the next member inside the json object.

This method is used with MemberBegin() and MemberEnd() to loop all the properties inside the json object.

vSJsonValueProprety that would like to take
Return
NextMemberSJsonIteratorThe next property inside a json object

GetMemberName 

Get the property name of the current json object.

iSJsonIterator
Return
GetMemberNameSTRINGThe current proptery name

GetMemberValue

Get the property value of the current json object.

iSJsonIterator
Return
GetMemberValueSTRINGThe property value

TEST API

Now we can try to configure your Test API.

You can find thousands of API testing servers from google.

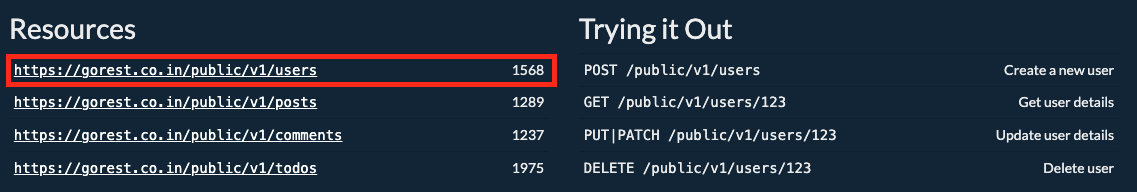

https://gorest.co.in/

Get request is used in this tutorial.

Enter this link into your browser.

https://gorest.co.in/public/v1/users

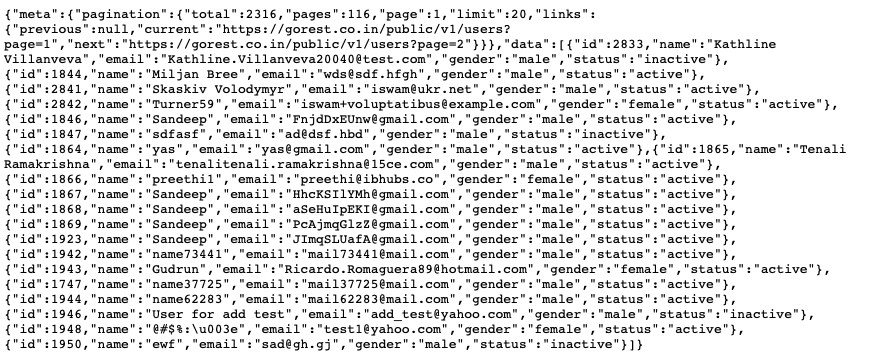

Response is came from the server.

String process is not an easy task of the plc program , and I will choose only the response that is redlined out.

Add a /1666 to the end of the request, the information of user id 1666 is return .

https://gorest.co.in/public/v1/users/1666

Example

Good! Test API is confirmed and we can make the twincat program.we will send the http rest request to that test API server and convert the response into json format, finally take some specific fields inside the content.

_CallRestAPI

This _CallRestAPI POU can create a client to establish a connection to server and send the request, process the response.

VAR

VAR

//Client
IotHttpClient:FB_IotHttpClient;

//Request
IotHttpRequest:FB_IotHttpRequest;
JsonDomParser:FB_JsonDomParser;
R_TRIG :R_TRIG;
bSendRequest:BOOL;
bGetContentResult :BOOL;
sContent:STRING(511);
//Json
jsonDoc:SJsonValue;
jsonVal:SJsonValue;
JsonSaxWriter:FB_JsonReadWriteDataType;
jsonDocWithSpeicificMember:SJsonValue;
jsonCurrentIterator:SJsonIterator;
jsonLastIterator :SJsonIterator;
sProperty:STRING;
jsonLoopValue:SJsonValue;
sHeaderValues:STRING;
jsonDataWithSpecificMember:STRING(511);
sJsonPropertyValue:STRING;
//Unitiy
nReqCount:UDINT;
iState:INT;
nVaildCount:INT:=0;
bConfigurated:BOOL;
iVaildHeaderCount:INT;
bReset:BOOL;
bError:BOOL;
nError:INT;

END_VAR

VAR CONSTANT

VAR CONSTANT
ciStepInit :INT:=0;
ciStepSendRequest:INT:=10;
ciStepGetContent:INT:=20;
ciStepError :INT:=8000;
ciHTTPSPort :UINT:=443;
END_VAR

Code

//Start to Send the Request
R_TRIG(
CLK:=bSendRequest
);

CASE iState OF

ciStepInit:
IF NOT IotHttpClient.bConfigured THEN
IotHttpClient.nHostPort:=ciHTTPSPort;
IotHttpClient.sHostName:=’gorest.co.in’;
IotHttpClient.bKeepAlive:=TRUE;
IotHttpClient.tConnectionTimeout:=T#10S;
IotHttpClient.stTLS.bNoServerCertCheck:=TRUE;
nReqCount:=0;
nVaildCount:=0;
bError:=FALSE;
bReset:=FALSE;
nError:=DUTE_HTTPRequest_ERRORCode.E_ERR_Noraml;
ELSE
iState:=ciStepSendRequest;
END_IF


ciStepSendRequest:
IF R_TRIG.Q THEN
IF IotHttpRequest.SendRequest(
sUri:=’/public/v1/users/62′
,fbClient:=IotHttpClient
,eRequestType:=ETcIotHttpRequestType.HTTP_GET
,pContent:=0
,nContentSize:=0
,fbHeader:=0
)
THEN
nReqCount:=nReqCount+1;
bSendRequest:=FALSE;
iState:=ciStepGetContent;
END_IF;
END_IF
ciStepGetContent:
bGetContentResult:=IotHttpRequest.GetContent(
pContent:=ADR(sContent)
,nContentSize:=SIZEOF(sContent)
,bSetNullTermination:=TRUE
);
IF IotHttpClient.bError THEN
iState:=ciStepError;
nError:=DUTE_HTTPRequest_ERRORCode.E_ERR_FB_TioHttpRequest;

ELSE
CASE IotHttpRequest.nStatusCode OF
200..299:
//get the Json Dom from Response
jsonDoc:=IotHttpRequest.GetJsonDomContent(
fbJson:=JsonDomParser
);
//get the Header
IF IotHttpRequest.GetHeaderField(
sField:=’Server’
,pValue:=ADR(sHeaderValues)
,nValueSize:=SIZEOF(sHeaderValues)
)
THEN
iVaildHeaderCount:=iVaildHeaderCount+1;
END_IF;

//get ‘data’ property from JSON DOM
jsonDataWithSpecificMember:=JsonDomParser.GetJson(
v:=JsonDomParser.FindMember(
jsonDoc
,’data’
)
);

//Convert it to Dom again
jsonDocWithSpeicificMember:=JsonDomParser.ParseDocument(
jsonDataWithSpecificMember
);

//While loop + NextMember(),MemberBegin(),MemberEnd
jsonCurrentIterator:=JsonDomParser.MemberBegin(jsonDoc);
jsonLastIterator:=JsonDomParser.MemberEnd(jsonDoc);
WHILE jsonCurrentIterator <> jsonLastIterator DO
sProperty:=JsonDomParser.GetMemberName(
jsonCurrentIterator
);
jsonLoopValue:=JsonDomParser.GetMemberValue(
jsonCurrentIterator
);

IF sProperty =’email’ THEN
JsonDomParser.CopyString(
jsonLoopValue
,sJsonPropertyValue
,SIZEOF(sJsonPropertyValue)
);
END_IF
jsonCurrentIterator:=JsonDomParser.NextMember(
jsonCurrentIterator
);

END_WHILE
iState:=ciStepSendRequest;

//if json Dom from Response is 0, somethings error in your program
IF jsonDoc <> 0 THEN
nVaildCount:=nVaildCount+1;
ELSE
iState:=ciStepError;
nError:=DUTE_HTTPRequest_ERRORCode.E_ERR_JsonDOM_IsZero;
END_IF

ciStepError:
IF bReset THEN
iState:=ciStepInit;
END_IF
END_CASE
END_IF;




END_CASE

IotHttpClient.Execute();

MAIN

Just call the POU that created in the previous step 

_CallRestAPI();

Result

This is the response from the server.

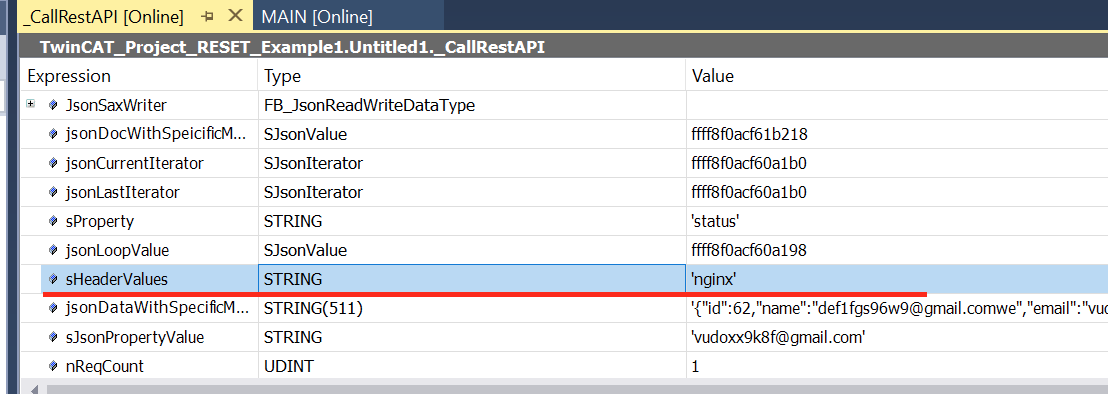

Here is the specific header .

use the while loop to get the value of mail properties.

Finally

Please download the sample code from here.

https://github.com/soup01Threes/TwinCAT3/blob/main/TwinCAT%20Project_RESET_Example1_GetRequest2ExampleServer.tnzip
