This series is about RevPI. RevPI is a model kit for industrial Raspberry Pi – Resolution Pi (RevPi) that was developed by KUNBUS in Germany. A printed circuit board was developed specifically for the Revolution Pi with interfaces and connections suitable for industrial applications, ready for use in industrial automation.
Let’s start with IP Scan/Base Setup!
Thanks!
The RevPI Connect used in this article was lent by PILZ JAPAN.
PILZ
PILZ supports FA sites as a total solution supplier with safety and automation technology solutions, guaranteeing not only human safety, but also machine and environmental safety, to ensure the safe operation of machines and equipment. Pilz has 42 local companies and branches worldwide and is active in various fields such as packaging, the automotive industry, robotics applications, as well as wind power and railway technology.
Office:
〒222-0033 Kanagawa, Yokohama, Kohoku Ward, Shinyokohama, 3 Chome−17-5 いちご新横浜ビル 4階
HP
Connect the 24V DC!

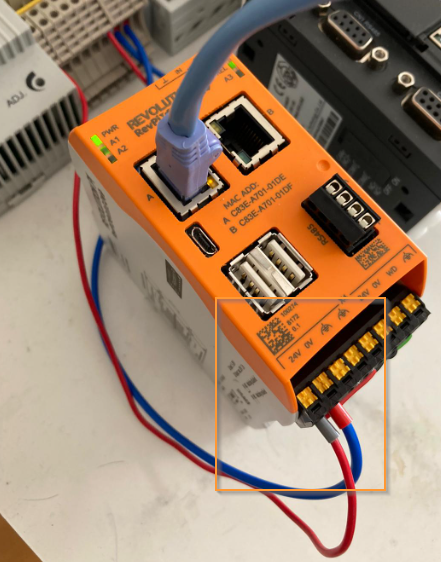

Connect 24v DC to your RevPI Connect.
Connect the LAN!

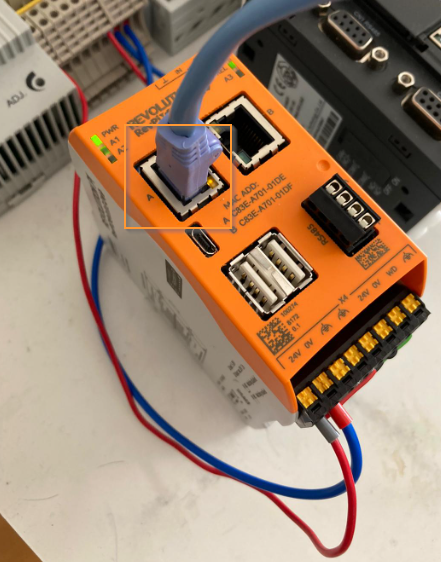

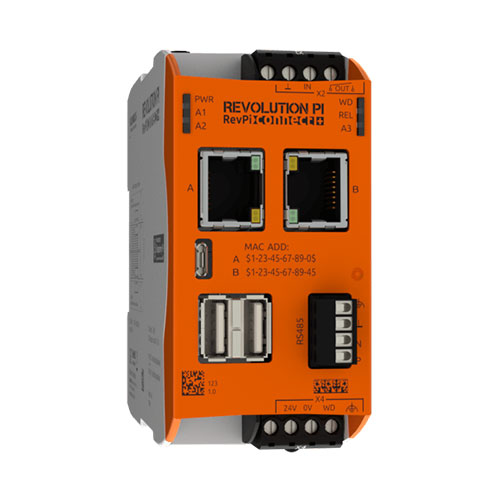

Then we can connect the LAN Cable with Port A / B in your RevPI.
Scann the IP
Here I will show you 2 ways to check the IP of your RevPI.
Advanced IP Scanner
Advanced IP Scanner is a free tool to scan all the IP in your network – please access the below link to download the installation file.
https://www.advanced-ip-scanner.com/download/
Launch the Setup File>Choose English as the Installation Language>OK.
We can Run the portable version or installation version on your PC, and the installation version is used in my tutorial.
Accept the License> Install.

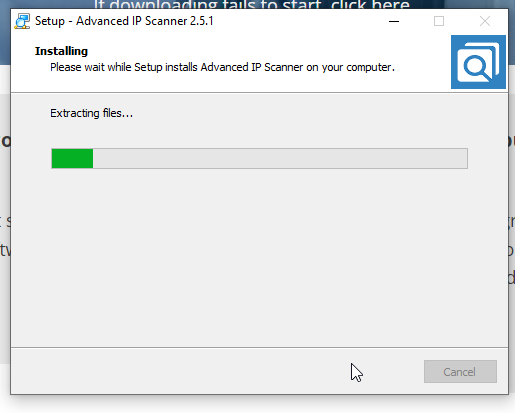

Please wait a minute..

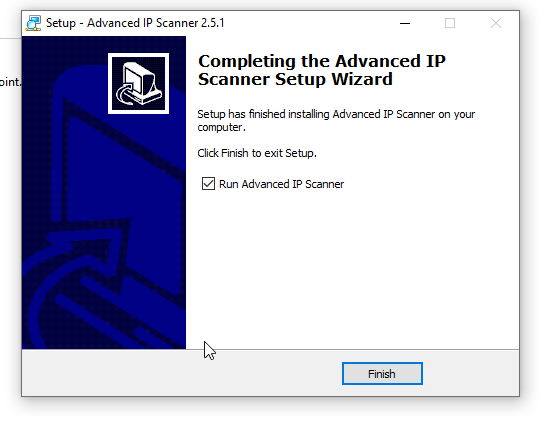

Enter the checkbox of Run Advanced IP ScannerのCheckbox to start the tools.
Or we can search Advanced IP Scanner to start it.

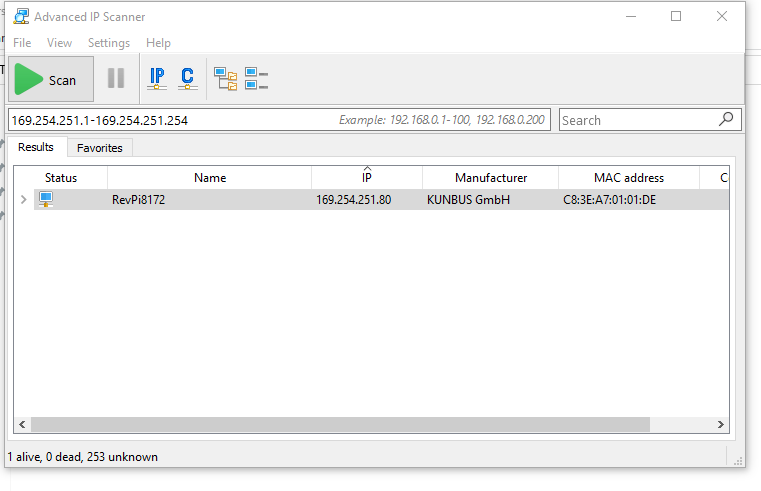

Enter the Ip scan range > press scan button to search the RevPI.
Get it! The ip address is 169.254.251.80.
Wireshark

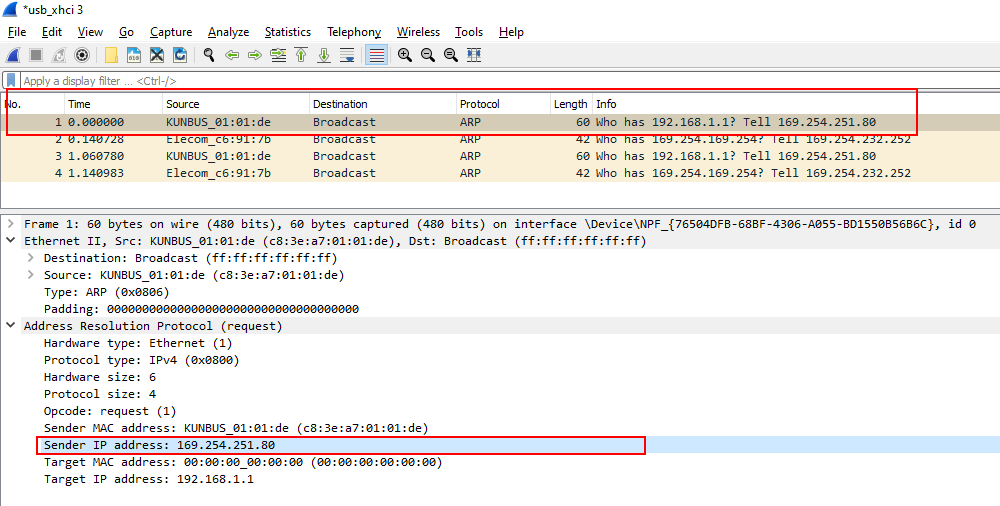

Or we can use wireshark to search the packages with Source KUNBUS_XXX, and expand the Address Resolution Protocol> Send IP Address to get the IP address of your RevPI.
Putty Login

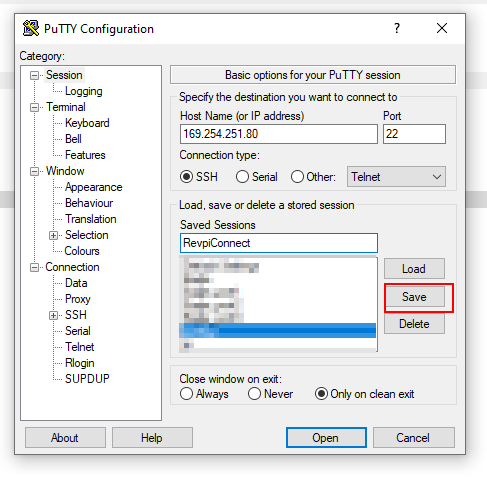

Launch Putty to Enter the IP Address that you got in the previous step and Save it.
Press Open to connect the RevPI with SSH.
Accept.

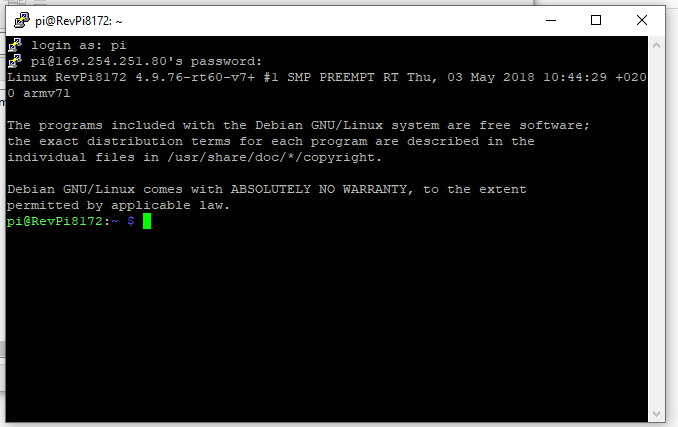

Login as is shown in the Putty.
Enter pi as the user name.

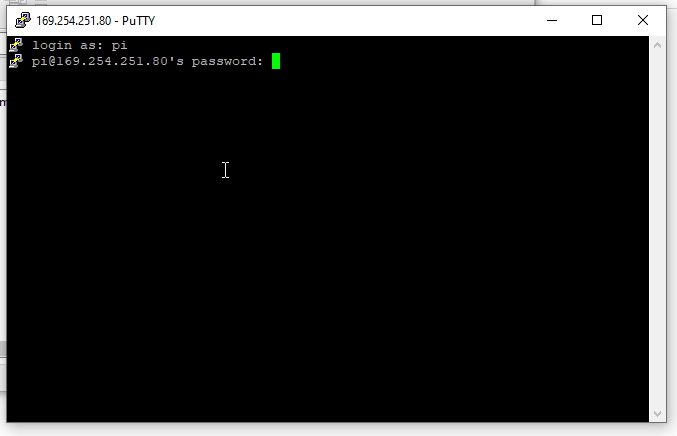

Now we need to enter the password.

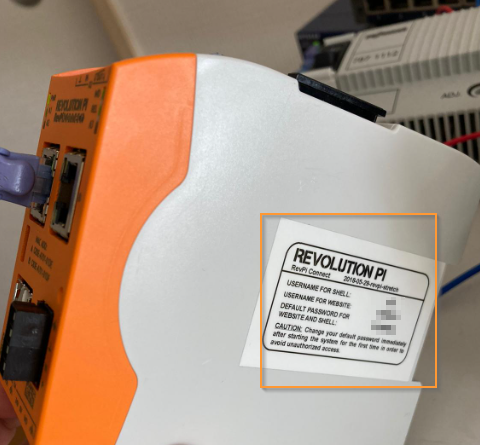

you can find the password from the Label of RevPI CPU .
Done!
Check internet
we can use ping 8.8.8.8 to check the internet connection between your RevPI.
