In the Last part we used TwinCAT I/O Devices to communicate with the S7-CPU.Now we can make some PLC Program for display etc.But before we start it, let’s’ talk a little bit about TF6620.

S7 Communication is a Protocol from Siemensa and we can use this Protocol to communicate with Siemens Devices(Input/Output/DB).

S7-300/400/1200/1500 are supported by TF6200 and we can implement it in I/O Devices or PLC Function Blocks.

Here is part1:

Beckhoff#TwinCAT3 TF6620 S7Communication_Part1

If viewed from the Protocol side, S7 Communication is used to communicate with S7-CPU with COTP,TPKT Protocol.

If viewed from the TwinCAT side, S7 Communication is done by TF6620 and TCP/UDP RT is done by TF6631.

Finally, if viewd from the PLC side, the S7 Single Request and S7 Cyclic Request are implemented ,and we have the S7 Connection Object.

Implemtation

Let’s create some programs!

DUT

Firstly we will create the DUT to group all Connection State,Error,Reset into one variables.

DUT_Comm_S7

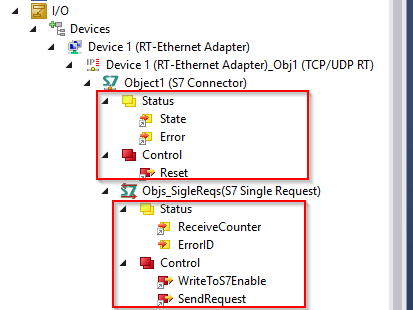

In this DUT, we have the Status and Control variables inside the S7 Connector.

TYPE DUT_Comm_S7 :
STRUCT
//Input
Error AT %I* :BOOL;
State AT %I* :BYTE;

//Output
Reset AT %Q* :BOOL;

//Req Input
ReceiveCounter AT %I* :BYTE;
ErrorID AT %I* :WORD;

//Req Output
WriteToS7Enable AT %Q* :BOOL;
SendRequest AT %Q* :BYTE;

END_STRUCT
END_TYPE

DUT_Comm_S7_Object1

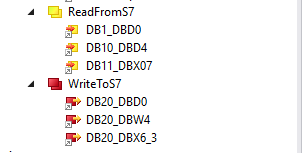

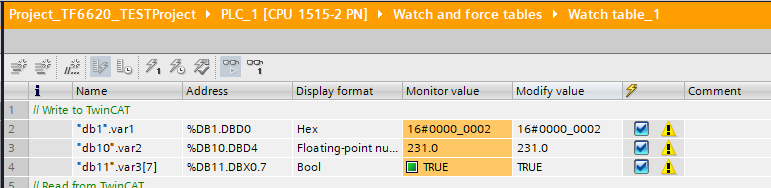

And then we will define the DUT for write/read the variables with Siemens.Do you remember these variables that Created in the last tutorial?

Sorry that I am very lazy to create the request separately, I will create a DUT_Comm_S7_Object1 that is extended from DUT_Comm_S7.
It means that if we would like to create another request – we only just Extend the DUT_Comm_S7 again!

It would be like this:

TYPE DUT_Comm_S7_Object1 EXTENDS DUT_Comm_S7 :
STRUCT

//Read From S7
rDB1_DBD0 AT %I* :DWORD;
rDB10_DBD4 AT %I* :REAL;
rDB11_DBX0_7 AT %I* :BOOL;

//Write to S7
wDB20_DBD0 AT %Q* :REAL;
wDB20_DBW4 AT %Q* :INT;
wDB20_DB6_3 AT %Q* :BOOL;

END_STRUCT
END_TYPE

FC

Now we can create some Function.In this tutorial there are 2 functions , and display the status from Connector and Display in the PLC HMI.

FC_CheckS7ConnectorIsError

Check the Status of S7 Connection and Return True if the status is 16#F1 or 16#F5.

FUNCTION FC_CheckS7ConnectorIsError : BOOL
VAR_INPUT
ID :BYTE;
END_VAR

FC_CheckS7ConnectorIsError:=FALSE;
CASE id OF
16#F1,16#F2,16#F3,16#F4,16#F5:
FC_CheckS7ConnectorIsError:=TRUE;

END_CASE

FC_GetS7ConnectorStatusText

A String with the Connector status is returned and displayed in PLC HMI.

FUNCTION FC_GetS7ConnectorStatusText : STRING
VAR_INPUT
ID :BYTE;
END_VAR

CASE ID OF

16#00:
FC_GetS7ConnectorStatusText:=’idle’;
16#01:
FC_GetS7ConnectorStatusText:=’Start’;
16#10:
FC_GetS7ConnectorStatusText:=’TCP setup’;
16#11:
FC_GetS7ConnectorStatusText:=’TCP setup wait for response’;
16#20:
FC_GetS7ConnectorStatusText:=’COTP setup’;
16#21:
FC_GetS7ConnectorStatusText:=’COTP setup wait for response’;
16#30:
FC_GetS7ConnectorStatusText:=’S7 setup’;
16#31:
FC_GetS7ConnectorStatusText:=’S7 setup wait for response’;
16#40:
FC_GetS7ConnectorStatusText:=’is connected’;
16#F1:
FC_GetS7ConnectorStatusText:=’TCP error’;
16#F2:
FC_GetS7ConnectorStatusText:=’TCP setup error’;
16#F3:
FC_GetS7ConnectorStatusText:=’TCP timeout’;
16#F4:
FC_GetS7ConnectorStatusText:=’COTP setup error’;
16#F5:
FC_GetS7ConnectorStatusText:=’S7 setup error’;
16#FF:
FC_GetS7ConnectorStatusText:=’Reset’;

END_CASE

Function Block

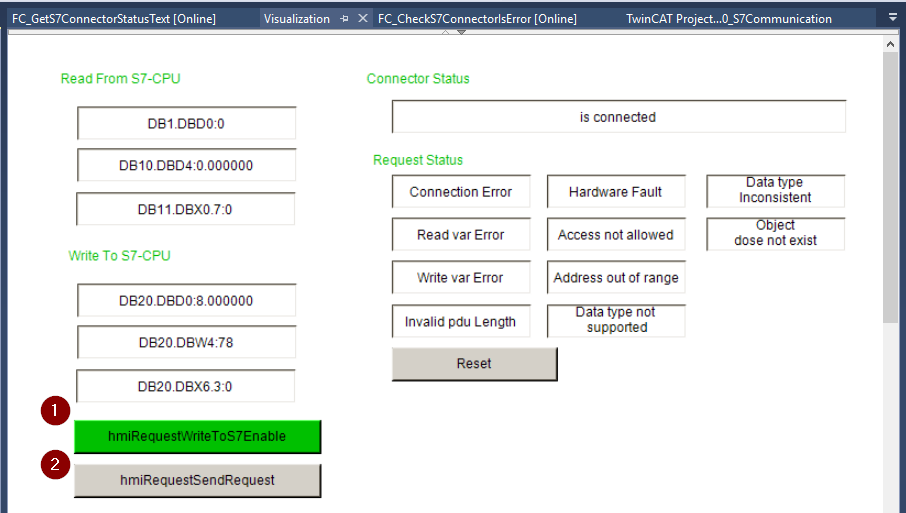

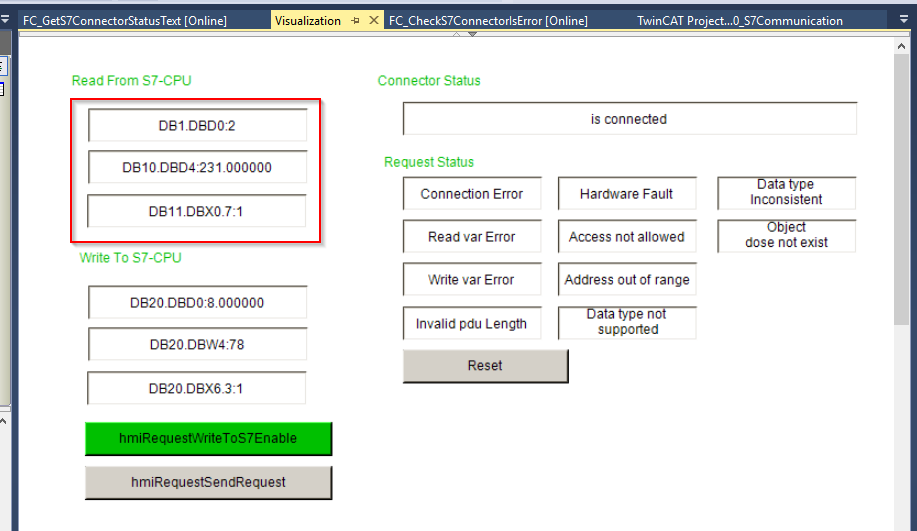

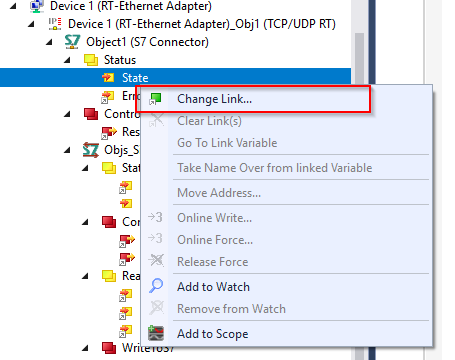

This Function Block will link with send/receive the data with S7-CPU and also display the status and value of variables in HMI.

FB_Communication_S7

FUNCTION_BLOCK FB_Communication_S7
VAR

//
Connector:DUT_Comm_S7_Object1;

//HMI
hmiConnectorStatusText :STRING;
hmiConnectorStatusError :BOOL;
hmiConnectorReset :BOOL;

hmiRequestReceiveCounter :BYTE;
hmiRequestErrorID :WORD;
hmiRequestWriteToS7Enable :BOOL;
hmiRequestSendRequest :BOOL;

hmiReadFromS7DB1DBD0 :DWORD;
hmiReadFromS7DB10DBD4 :REAL;
hmiReadFromS7DB11DB0_7 :BOOL;

hmiWriteToS7DB20DBD0 :REAL;
hmiWriteToS7DB20DBW4 :INT;
hmiWriteToS7DB20DBX6_3 :BOOL;

ReceiveConuterBackUp :byte;

//Internal FB
_R_TRIG :ARRAY[0..3]OF R_TRIG;
_Ton :ARRAY[0..3]OF ton;
END_VAR

//Counter
hmiRequestReceiveCounter:=Connector.ReceiveCounter;

//Rest
Connector.Reset:=hmiConnectorReset;

//Request
Connector.WriteToS7Enable:=hmiRequestWriteToS7Enable;

_R_TRIG[0](CLK:=hmiRequestSendRequest);

IF _R_TRIG[0].Q THEN
Connector.wDB20_DBD0:=hmiWriteToS7DB20DBD0;
Connector.wDB20_DBW4:=hmiWriteToS7DB20DBW4;
Connector.wDB20_DB6_3:=hmiWriteToS7DB20DBX6_3;

Connector.SendRequest:=Connector.SendRequest+1;
//Read From S7 CPU
hmiReadFromS7DB1DBD0:=Connector.rDB1_DBD0;
hmiReadFromS7DB10DBD4:=Connector.rDB10_DBD4;
hmiReadFromS7DB11DB0_7:=Connector.rDB11_DBX0_7;
END_IF

//Counter Checker
IF hmiRequestReceiveCounter <> ReceiveConuterBackUp THEN

ReceiveConuterBackUp:=hmiRequestReceiveCounter;
END_IF;

//hmi Dislpay
hmiConnectorStatusText:=FC_GetS7ConnectorStatusText(Connector.State);
hmiConnectorStatusError:=FC_CheckS7ConnectorIsError(Connector.State);
hmiRequestReceiveCounter:=Connector.ReceiveCounter;
hmiRequestErrorID:=Connector.ErrorID;
