PLCNEXT#Communicate with Beckhoff OPCUA Client

In this tutorial I will show you how to establish a OPCUA connection between TwinCAT3 (TF6100 as client)and PLCNEXT AXC F 2152 Controller(OPCUA Server).


Reference Link

PLCNext#PLCNEXT Engineer Download/Installation
PLCNEXT#Connect PLC to your PC
PLCNEXT#First Project with Local variables

PLCNEXT Side

Let’s Configure the OPCUA Server in the PLCNEXT Side.

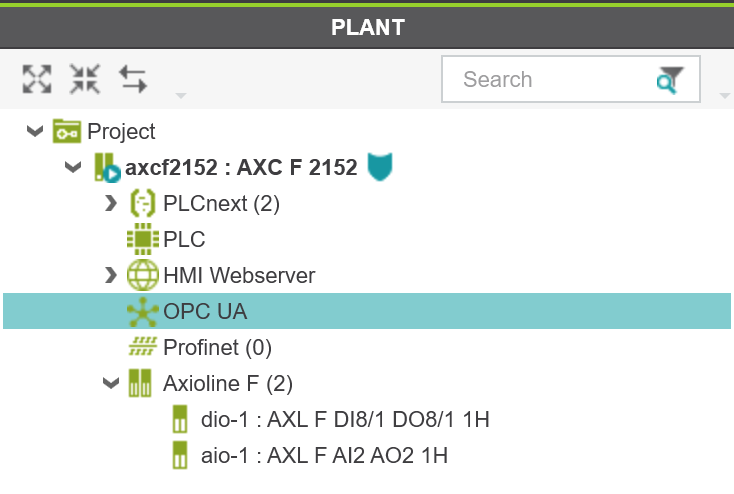

Go to PLC>OPCUA.

The OPCUA Configuration screen is displayed.

The Server name,security stuff..etc can be configured here.

Variable Visibility 

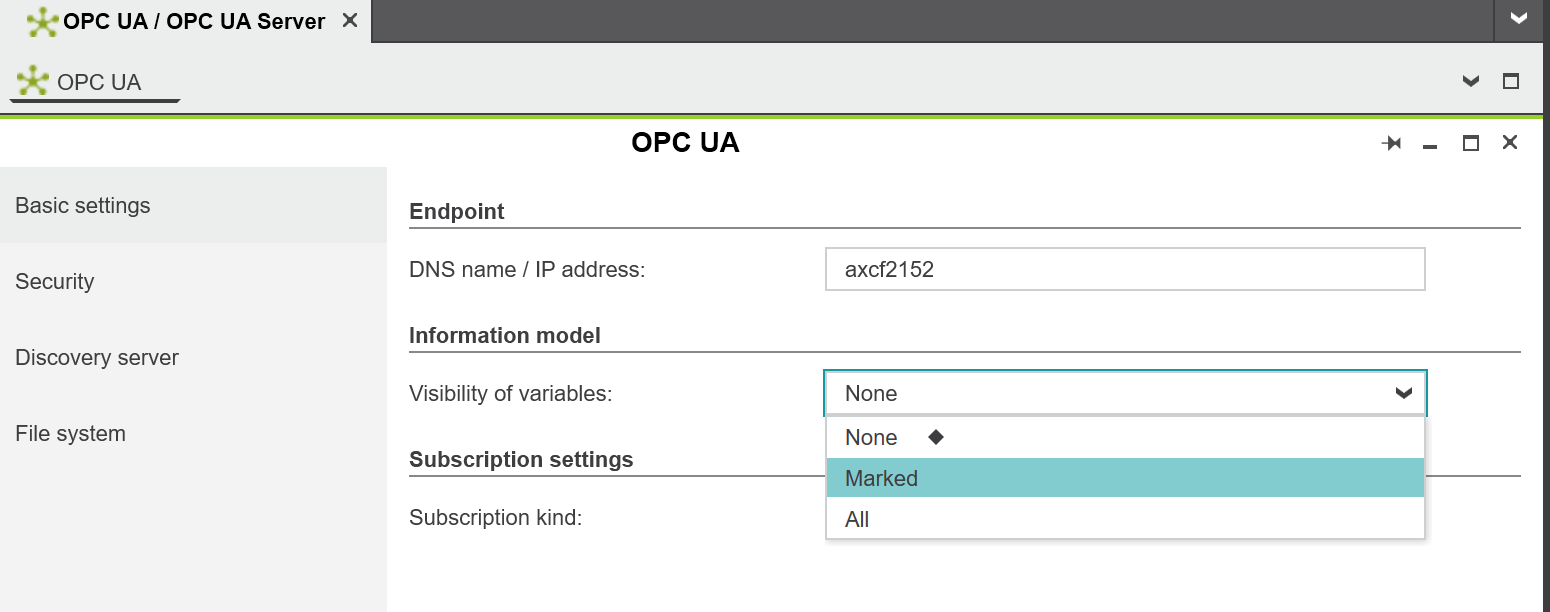

In TwinCAT, we can configure whether each variable is visible or not by the Attribute settings.PLCNext is doing the same thing.Go to Basic Settings>Information Model>Visibility of variables.

  • None:Not Visibilily
  • Marked:depends on the setting
  • All:All nodes are visible.

In this tutorial , Marked is used.

Certificate

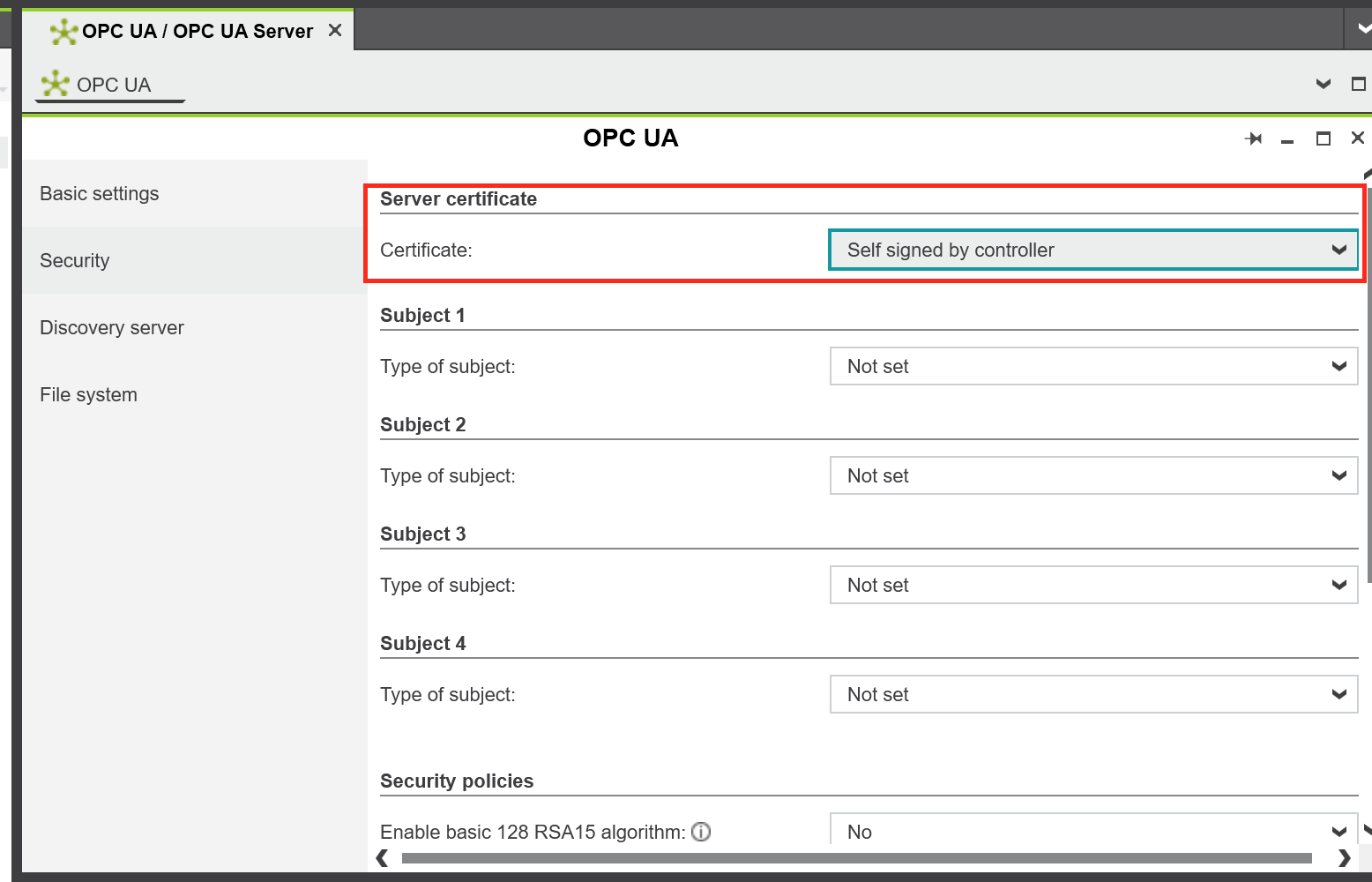

In the certification part, Self-signed by controller is used.

Variables Configuration

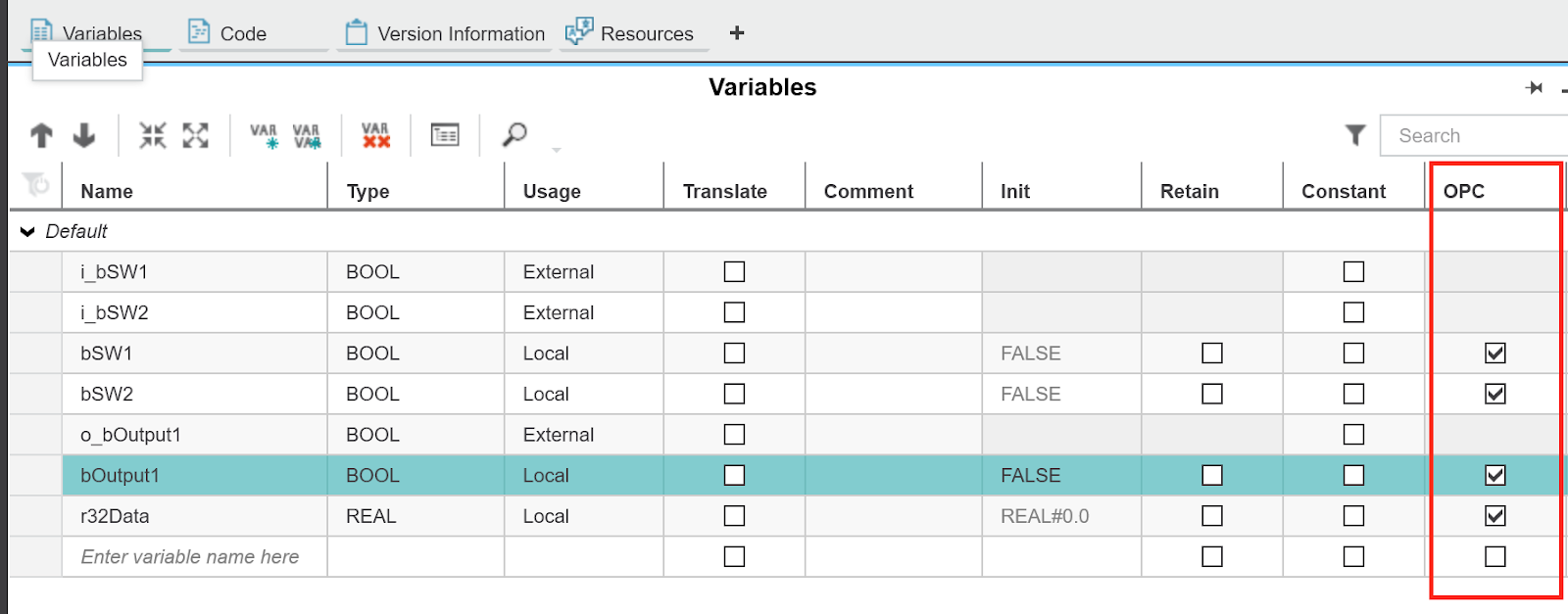

you can see the OPC rows in the variable define tab.

The variable will be visible if the box is checked.

In this tutorial, The hardware switch on the starter kit is used also. but PLCNEXT can not assign it as a visible node.

Test Code

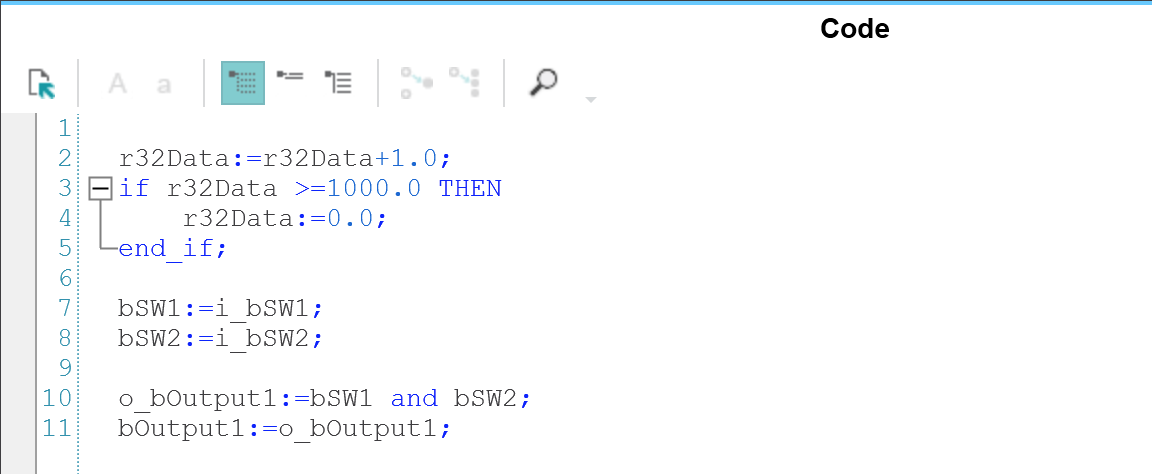

The Testing Code is very simple – a float variable will plus 1.0 and return to 0.0 if the current value is >=1000.0.

Download

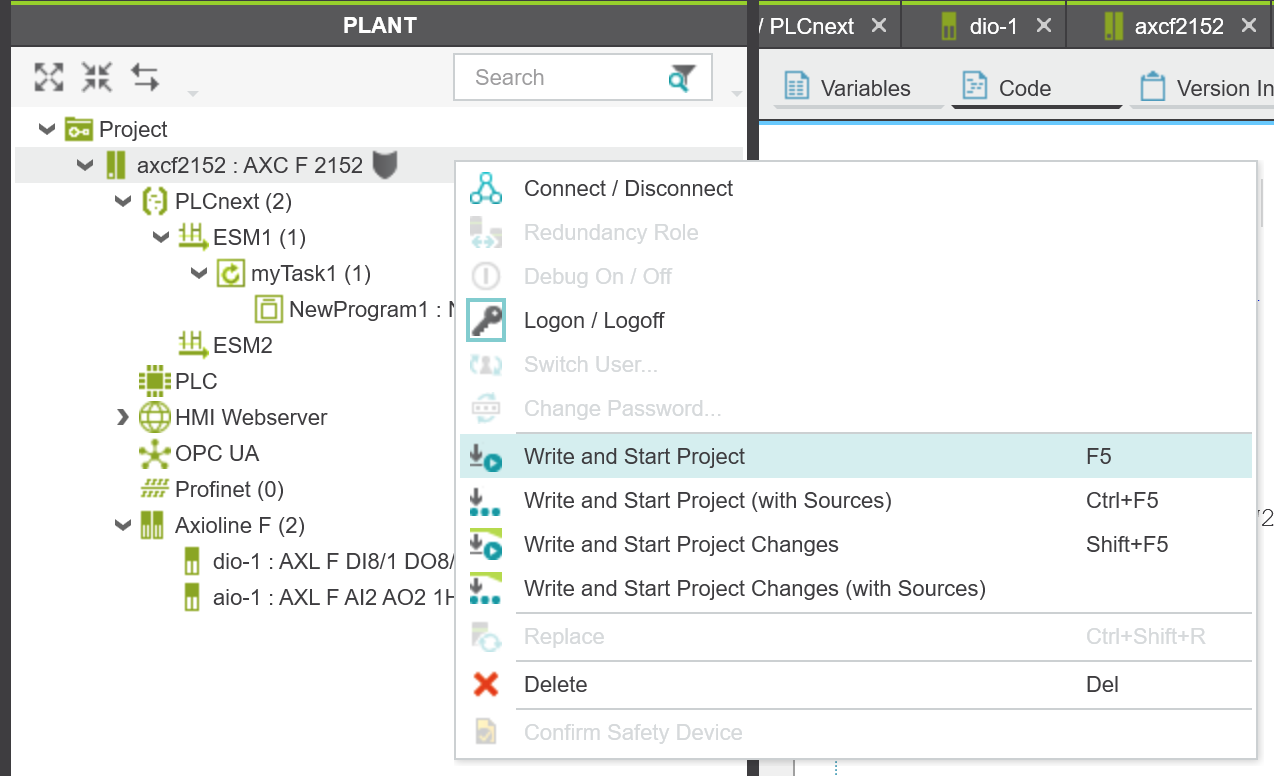

Finally , Please Download it.

UaExpert 

UaExeprt and TwinCAT are used for verification in this tutorial.The main reason is UaExpert can be easily tested but can not be implemented in the real-applications.

TwinCAT can be used in the Real-application but you need some know-how to do it.

Because of this, we will use UaExport for verify the connection, then implement it in TwinCAT.


Add the Server

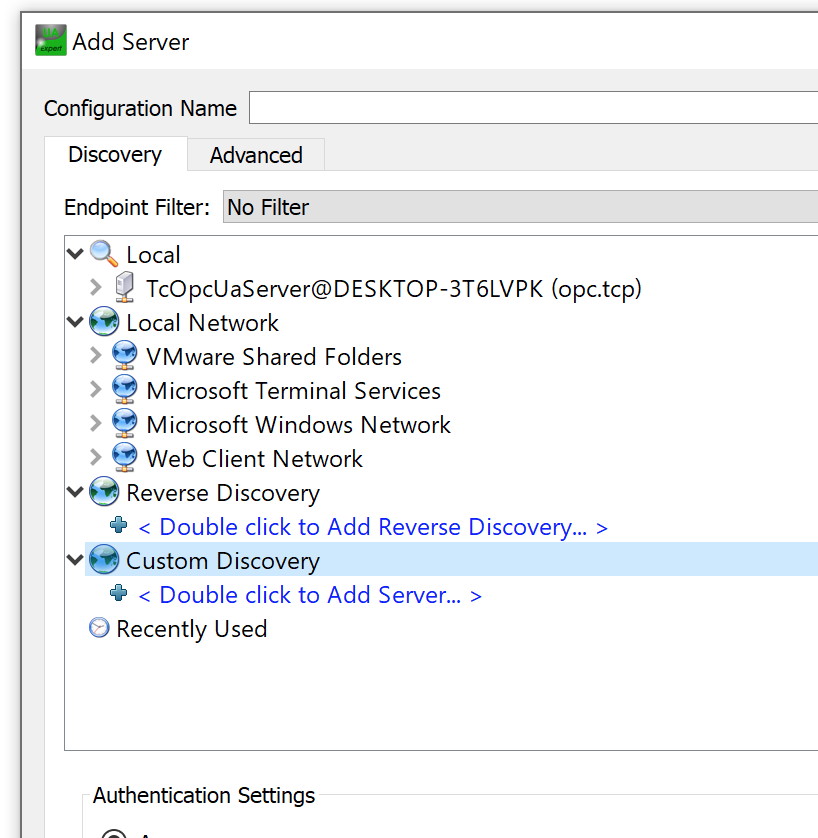

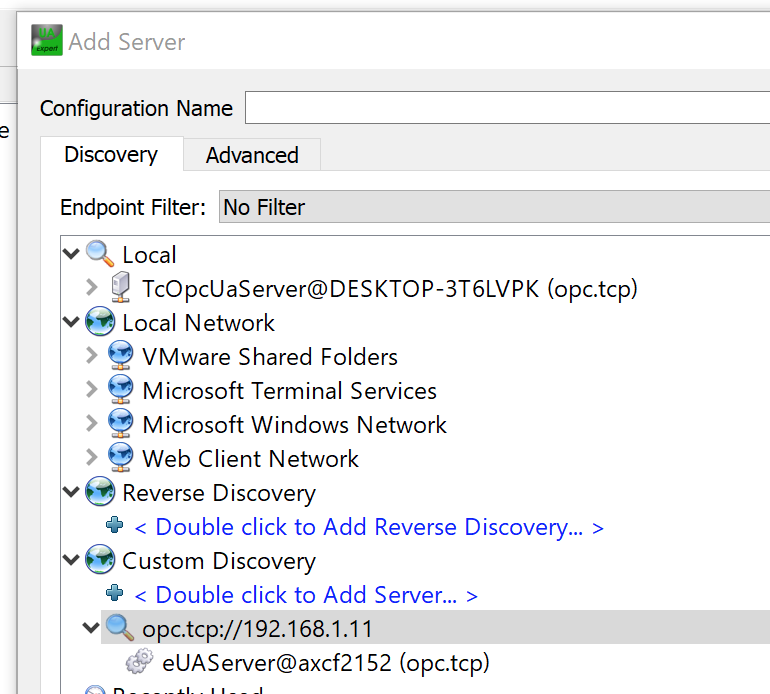

Add the Server and Click the Custom Discovery.

Use the <+Double click to add server> function.

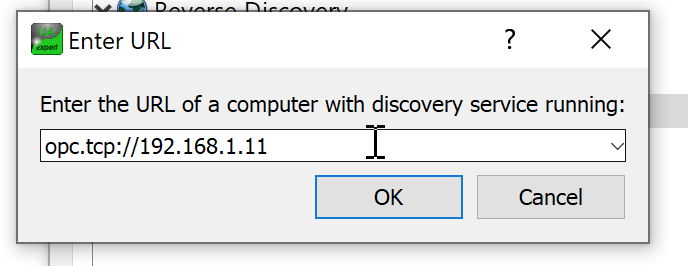

Enter the IP of your PLCNEXT CPU.

Server is found!Double click it.

Yes.

Now you need to authenticate.

Login 

Select the Radio box of username.

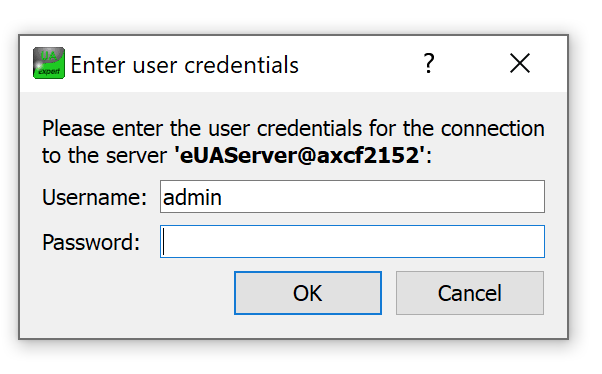

Enter “admin” as your username>OK.

Connect

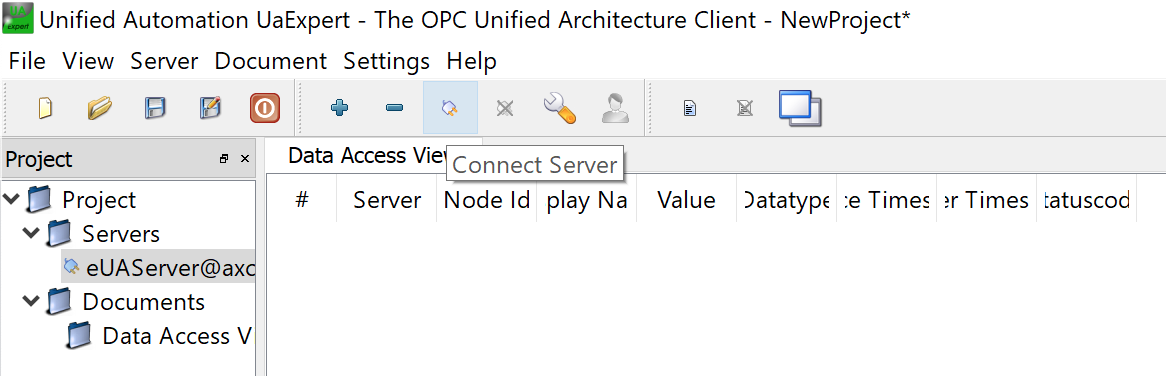

Click the Connect server function.

Enter your password.The password is printed on the surfaces of your PLC.(if you did not changed it)

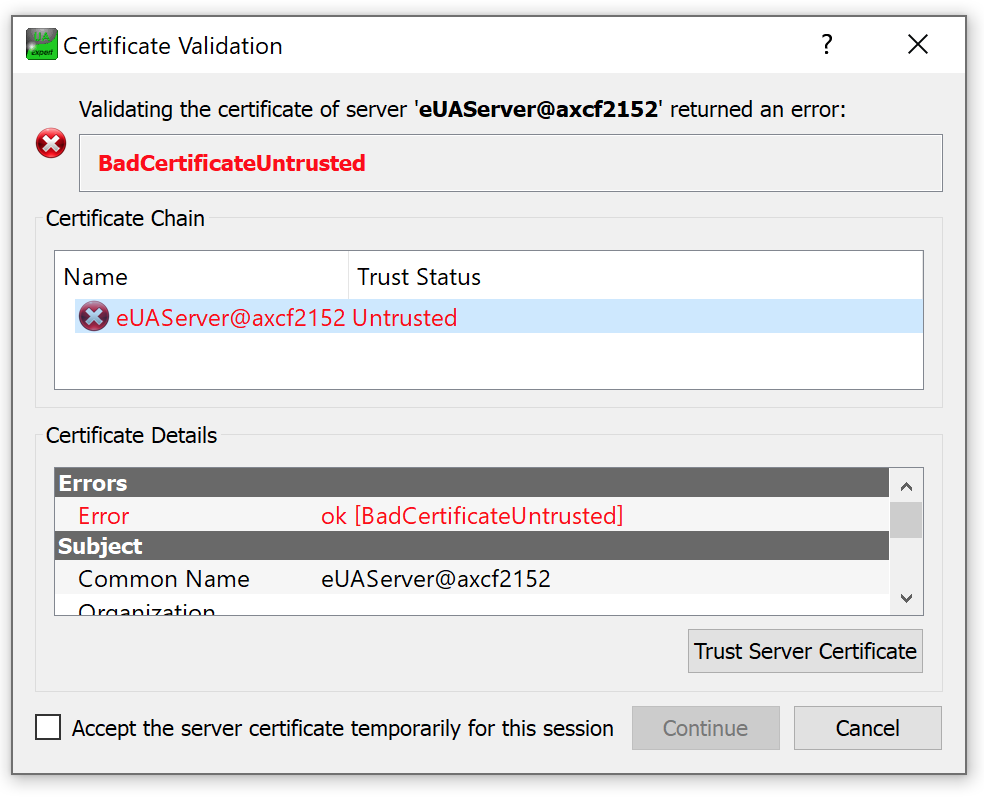

Click Trust server certificate>Accept the server >Continue.

Browse the Node

Server is connected between Server and UaExport.

Browse Root>PLCnext>Arp.Plc.Eclr>NewProgram1 to view the variables that configured in PLCNEXT Engineering before.

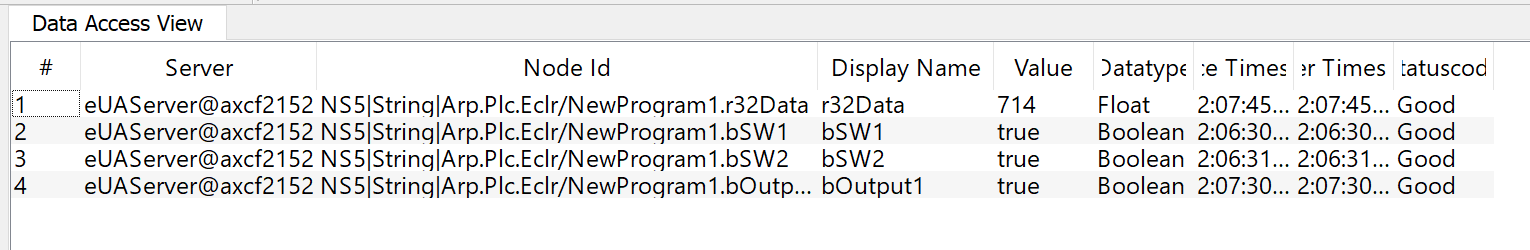

Select all these Nodes and drop to the Data Access view.

Verification

Please check if the variables are consistent or not;)!

TwinCAT Side

I will write down some “Main Points’ ‘during the configuration.

Reference Link

Beckhoff#TwinCAT3 TF6100 OPCUA _Part2_Using OPCUA Client IO
Beckhoff#TwinCAT3 TF6100 OPCUA _Part1_Server立ち上げよう

Ponit1-Endpoint

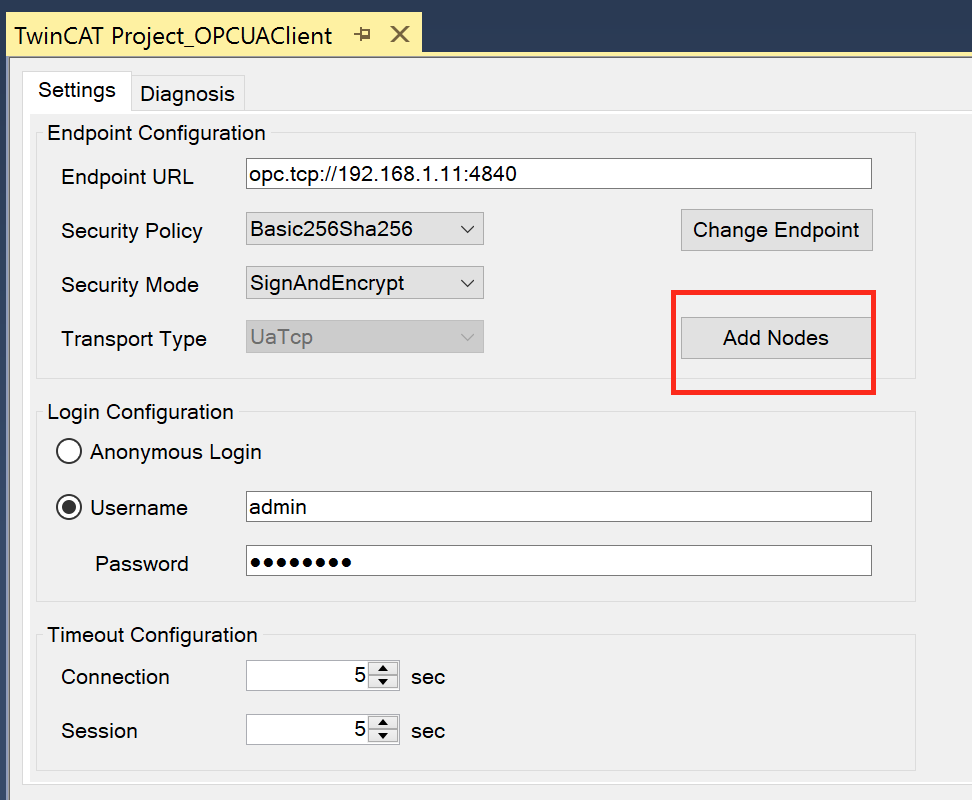

The Endpoint URL must be configured correctly.

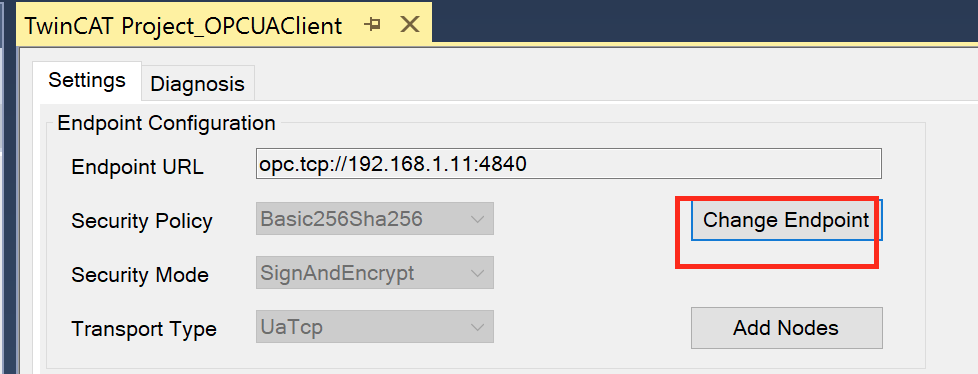

Enter the IP in the Endpoint URL field.

Username is admin and password is printed on the surface of your PLCNEXT(if you did not change it).

Press Change Endpoint.

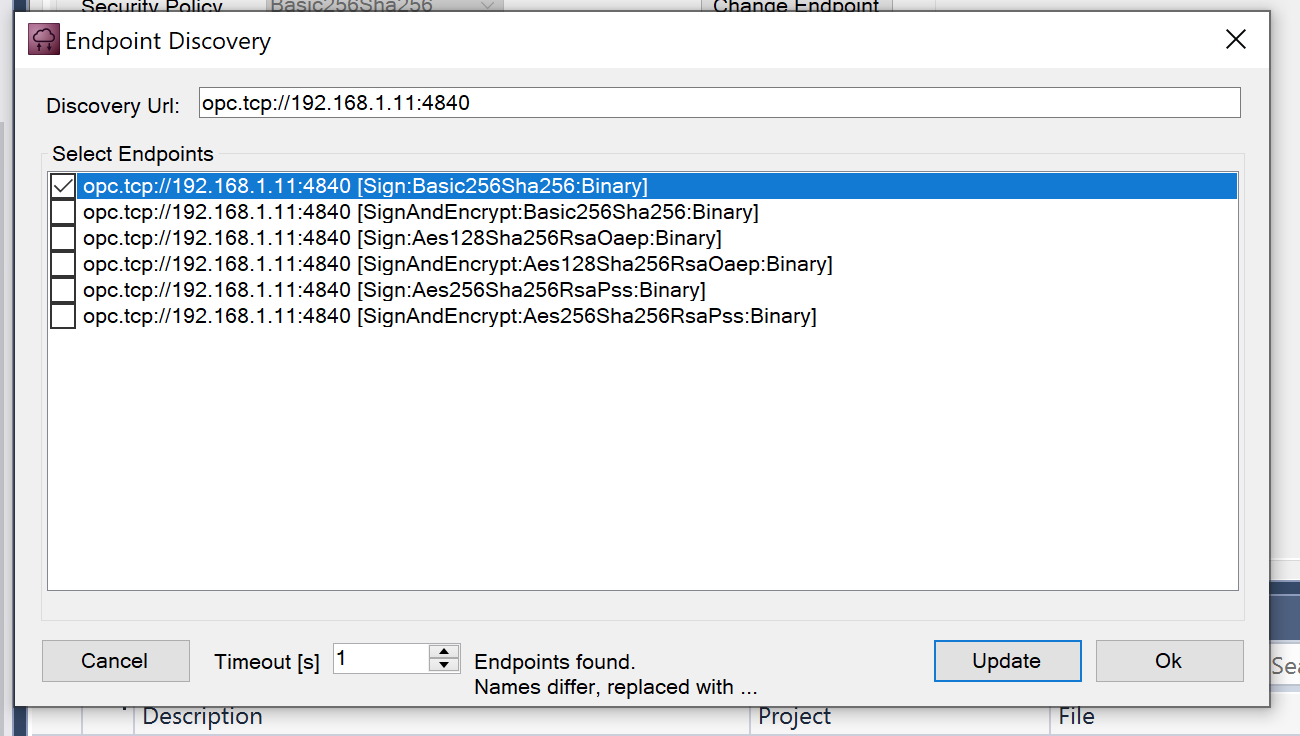

Select the Authentication method>OK.

Point2-Add Node

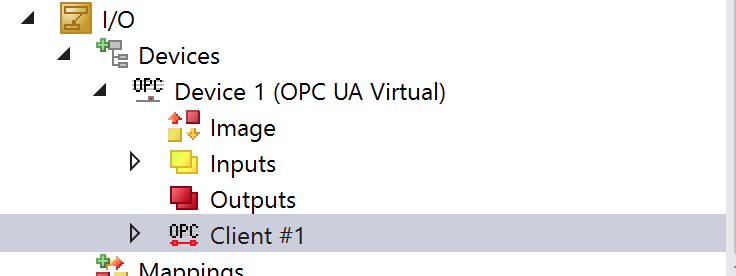

Press “Add Nodes” to insert the OPC UA Nodes.

Save Certificate in Trust List>Trust.

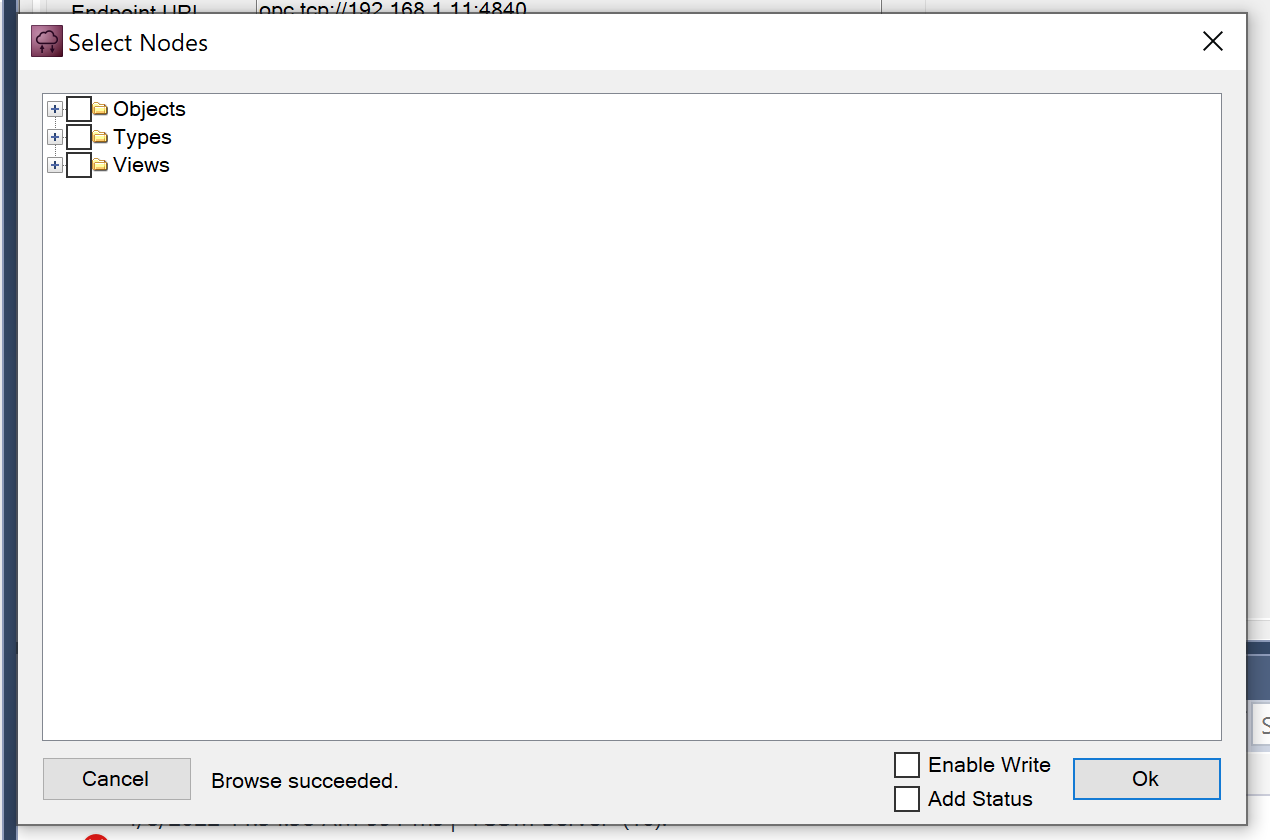

Node can be browsed now.

Select the Nodes that you need to use in your TwinCAT Project.

Check the “Enable Write” box if you need to overwrite the value.

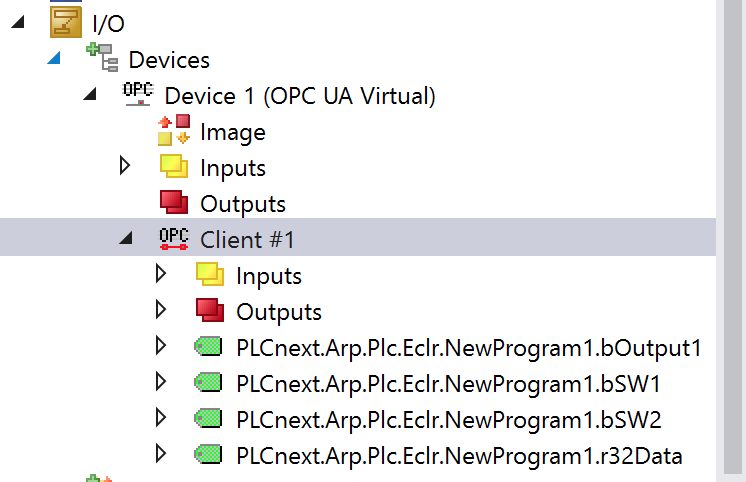

Nodes that you selected are inserted into your project.

Point3-Link the variables

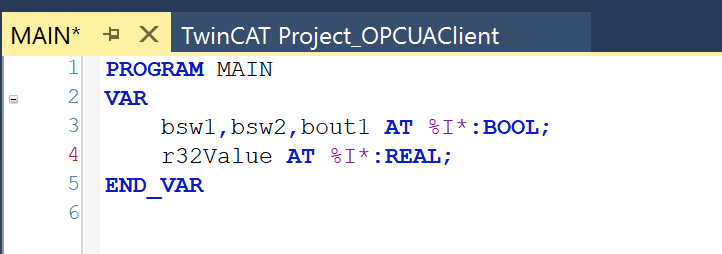

Finally, Do not forget to link these variables into your User program 😉

Verification

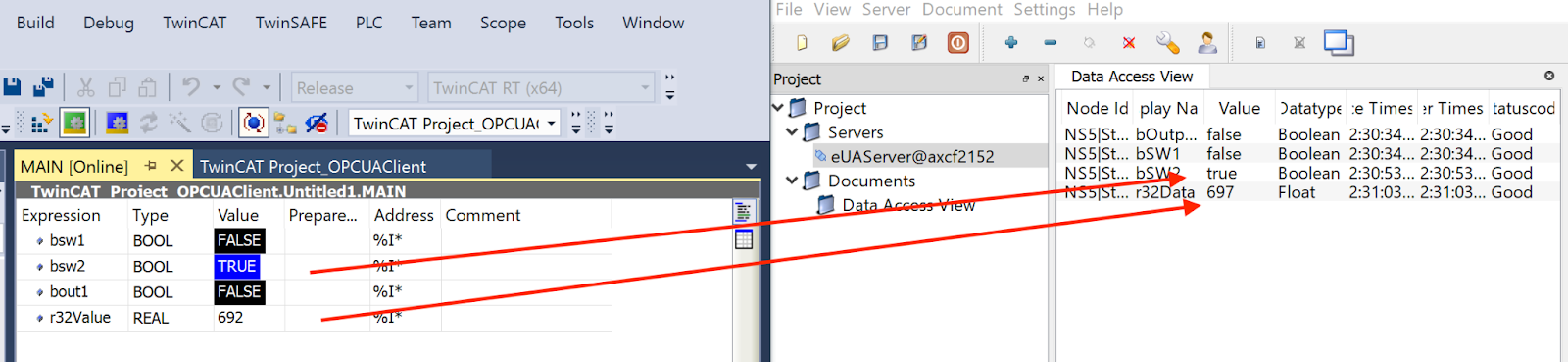

Compare the values that are read from UaExpert and TwinCAT and check it.
