Keyence#Communicate to CPU with Ethernet Interface

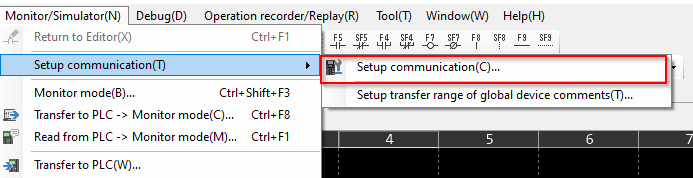

Here is a Note for  how to set up the use of Ethernet for program transfer from KV Studio to the CPU: click Monitor>Simulation>Setup Communication.

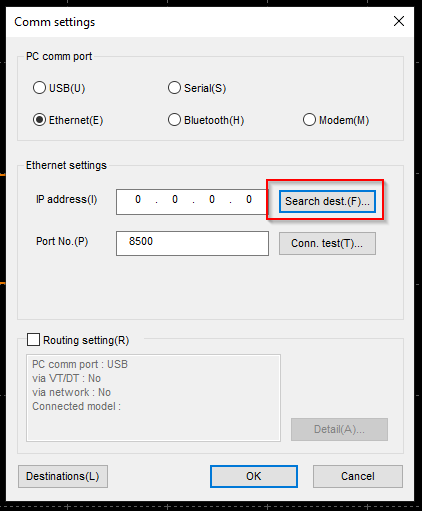

Click on Serch dest.

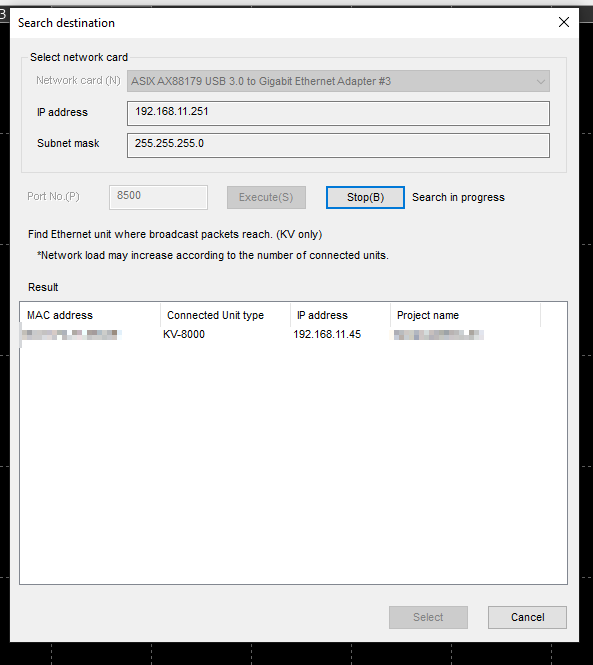

Select the CPU and the Network Interface connected to the CPU>Port Settings>Execute to start the search.

Done!CPU was found.

Select the appropriate CPU and confirm with >Select.

Finally, confirm with Ok and you are done.

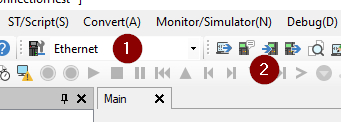

Let’s select Interface as Ethernet and transfer data to the CPU.
