This is a new series for me to explain how to use the M2xx CPU from Schneider but also their Drive.In this tutorial CPU M221ME16TG is used.

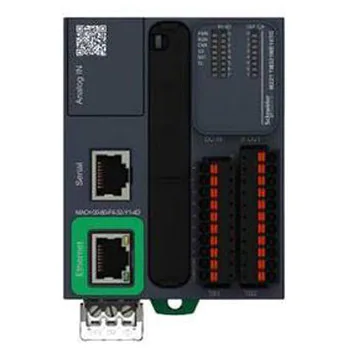

This CPU M221ME16TG is :

• SD Card Slot x 1
• USB Port x 1
• Run/StopS switch
• Ethernet Port x1
• serial Portx1
• 8 discrete, 4 fast inputs
• 8 transistor, 2 fast outputs
• Extension modules can be inserted.
• Task x8Cyclic Task x 1 and interrupt task x8
• Support Fieldbus
  • Ethernet/IP Adapter
  • Modbus TCP Server/Client
  • DHCP

Thanks!

This article is provided by Mana Design Works. The content of this blog itself is Schneider, but Mana Design Works is an official solution partner of Siemens ,headquartered in Osaka, Japan.Mana Design works can always make optimal proposals for Siemens CPUs, HMIs, drives, motion controllers, and SCADA to domestic manufacturers.

Please get more information from their home page:

https://mndw.jp/

Download the Tools

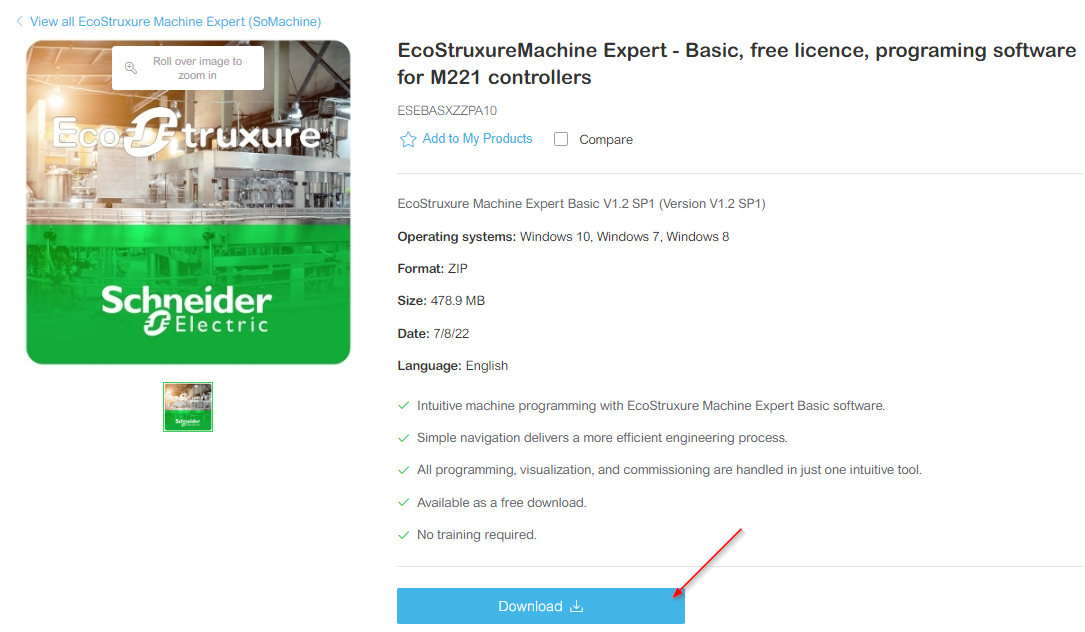

EcoStruxureMachine Expert-Basic is a free tool and please click this Link to download the tool.

https://www.se.com/ww/en/product/ESEBASXZZPA10/ecostruxuremachine-expert-basic-free-licence-programing-software-for-m221-controllers/

A zip file is downloaded from Schneider web page.

Installation

Unzip the file and click the exe file to execute the installation.

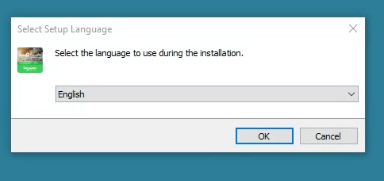

Choose English>OK.

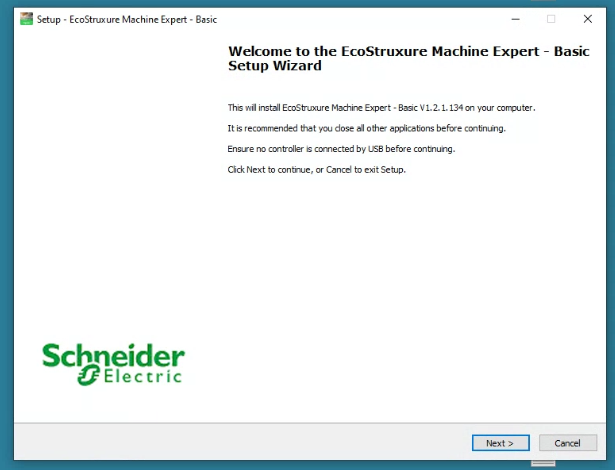

Choose Next>.

Agree the License and Next>.

Enter your information and Next>.

Next> again.

Setup your install path and Next>.

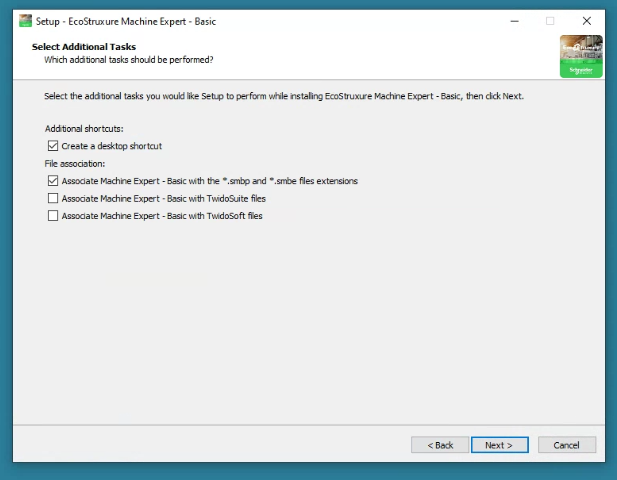

Create the Shortcut in Desktop and Next>.

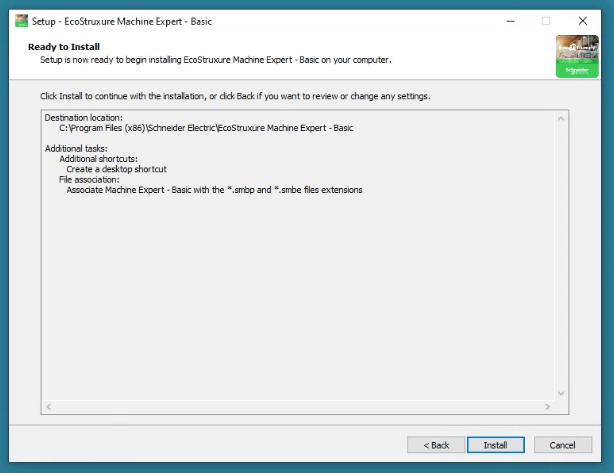

Press the install button to start the installation.

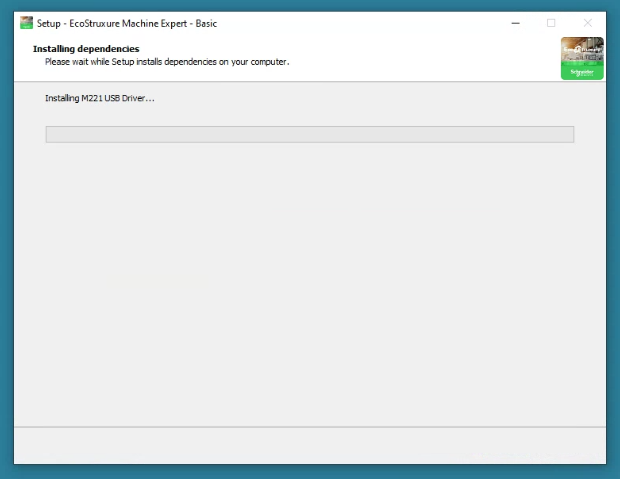

please wait a minute..

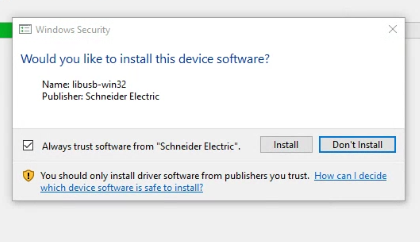

Do not forget to install the USB Driver for Schneider PLC.

Done!

Start it!

EcoStruxureMachine-Expert-Basic ICON is created in your Desktop, and double click it to start the software.

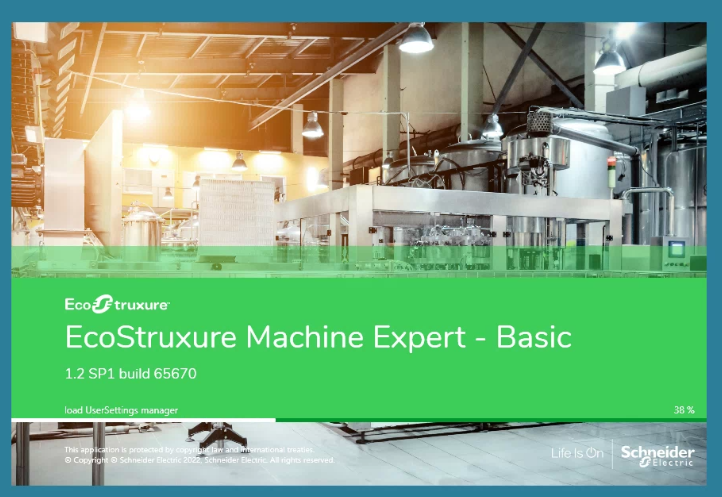

Please wait a mins..

Tool is started up!
